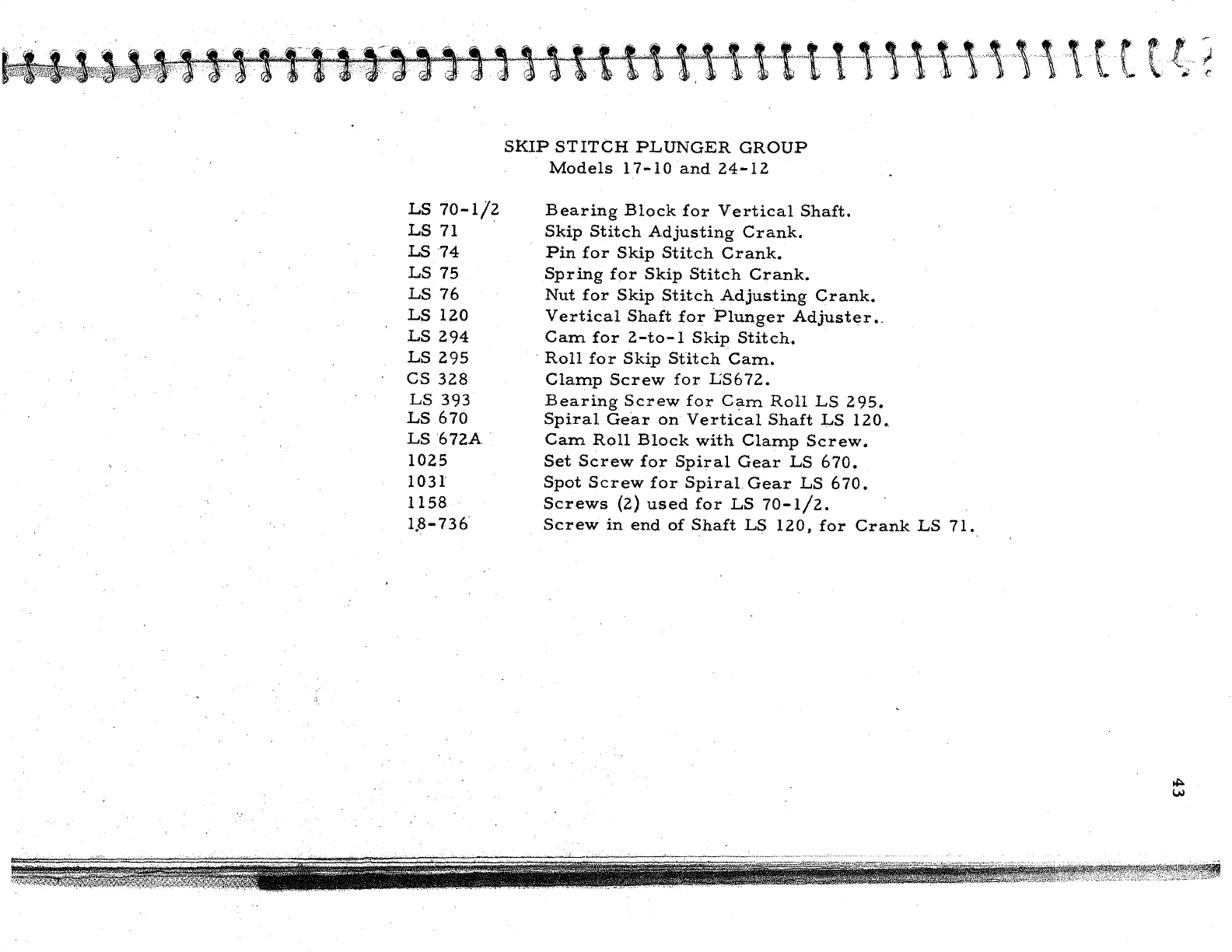

SKIP STITCH PLUNGER GROUP
Models 17-10 and 24-12
Bearing Block for Vertical Shaft.
Skip Stitch Adjusting Crank.
Pin for Skip Stitch Crank.
Spring for Skip Stitch Crank.
Nut for Skip Stitch Adjusting Crank.
Vertical Shaft for ·Plunger Adjuster •.
Cam for 2-to-1 Skip Stitch.
· Roll for Skip Stitch Cam.
Clamp Screw for LS672.
Bearing Screw for Cam Roll LS 295.
Spiral Gear on Vertical Shaft LS 120.
Cam Roll Block with Clamp Screw.
Set Screw for Spiral Gear LS 670.
Spot Screw for Spiral Gear LS 670.
Screws (2) used for LS 70-1/2.
Screw in end of Shaft LS 120, for Crank LS 71.
~
