Lewis 17 - Page 49

LS 23N
LS 130A
LS 135A
LS 165A
LS 225
LS 302
LS 317
LS 395
FP 539
LS 674
1160
1249
1251
1254
1256
1260
1261
1262
11-: '""'·
102551
~~""";t·ft·t-~~t'H~:~k.&f!L .... ~ ...... I ... t .... !t.tJt .. t.f f .f f .f t· lli 1~ \=.=H+H'":• ·.· • .· ·1· ~· '! '- .
~?< Y T~.~<!Lt'Li}<~~'I"''~~TTT'"rr·•r="['""'l:"~~ ~~'""- ,, ': ~··~ "······ •..... ~ .. ··, ........•.... ·~~ · ... ·. · W~-~
-.' · .• · •' ·_. ·_. ·~·· '~ .. ' .. ~· .· ·.· ·. · .. ! '·· .•

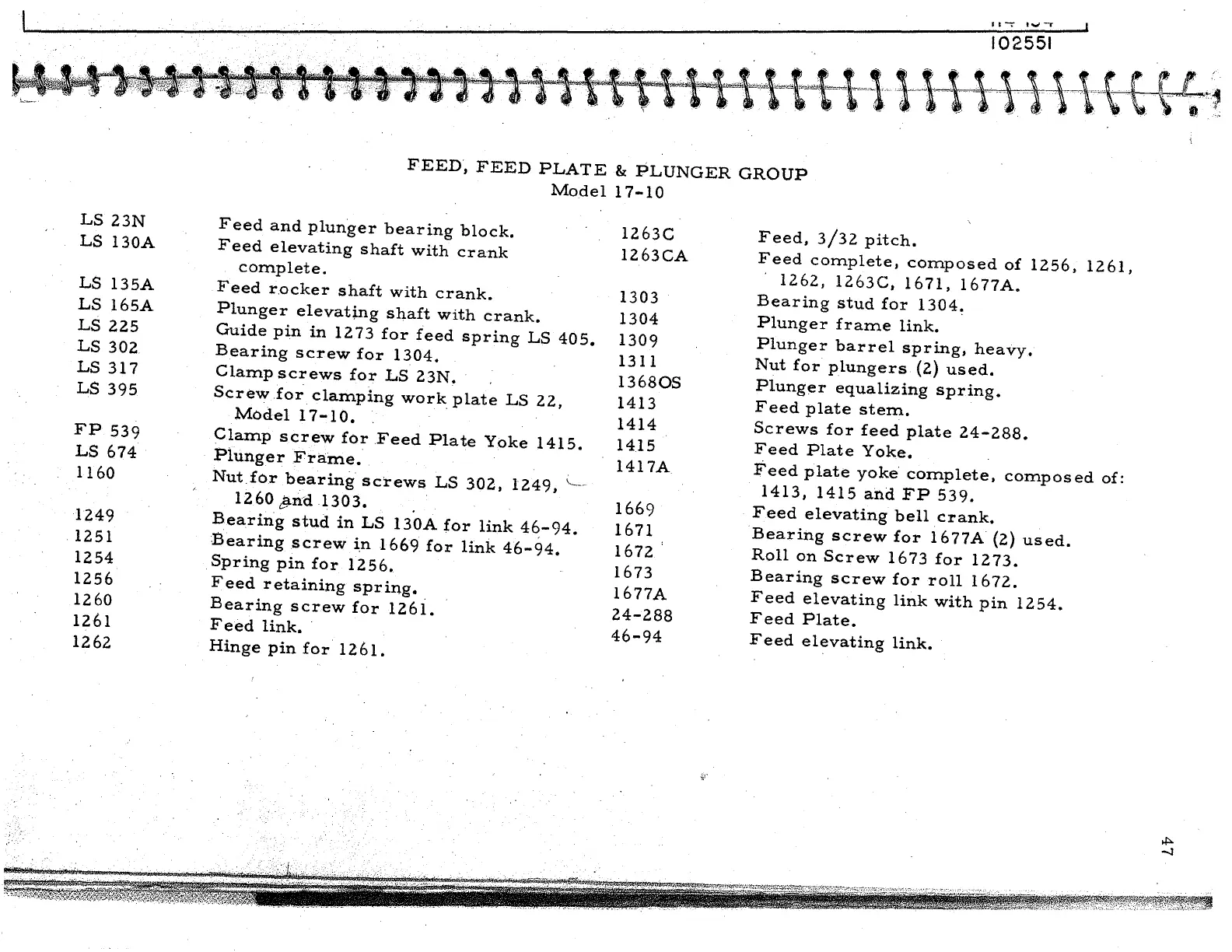

FEED, FEED PLATE & PLUNGER GROUP
Model 17-10
Feed and plunger bearing block.
Feed elevating shaft with crank
complete.
Feed r.ocker shaft with crank.
Plunger elevating shaft with crank.
Guide pin in 1273 for feed spring LS 405.
Bearing screw for 1304.
Clamp screws for LS 23N.
Screw for clamping work plate LS 22,
Model 17-10.
Clamp screw for Feed Plate Yoke 1415.
Plunger Frame.
Nut for bearing screws LS 302, 1249,
\~ .. -
1260 e,nd 1303.
Bearing stud in LS 130A for link 46-94.
.Bearing screw in 1669 for link 46-94.
Spring pin for 1256.
Feed retaining spring.
Bearing screw for 1261.
Feed link. ·
Hinge pin for 1261.
1263C
1263CA
1303
1304
1309
1311
13680S
1413
1414
1415
1417A
1669
1671
1672
'
1673
1677A
24-288
46-94
~(
Feed, 3/32 pitch.
Feed complete, composed of 1256, 1261,
. 1262, 1263C, 1671, 1677A.
Bearing stud for 1304~
Plunger frame link.
Plunger barrel spring, heavy.
Nut for plungers (2) used.
Plunger equalizing spring.
Feed plate stem.
Screws for feed plate 24-288.
Feed Plate Yoke.
Feed plate yoke complete, composed of:
1413, 1415 and FP 539.
Feed elevating bell crank.
Bearing screw for 1677A (2) used.
Roll on Screw 1673 for 1273.
Bearing screw for roll 1672.
Feed elevating link with pin 1254.
Feed Plate.
Feed elevating link.
*""
