Lewis 17 - Page 51

; ~
,.-;
LS 130A
LS 165A
LS 207
LS 225
CS 232
/"LS 317
LS 395
LS 396
L~ 629
1022
1160
1249
1251
1254
1256
1260 .
1262
1273
1311
1669
' !671
1672
f
102551
;';~~f~n;,,_: . , · ·:c·· . ·. . • . . , , , · • ,. , -.: · . · ~_-;_:."c_::_. · · · · ••·· ·· · · · ·· · t .r_ L1
..... ~m~···"~~-·,t· ~~1:111 t+1 ~ 1 i 1~\ 'rt. \~ (
·',' - . . . . . . .

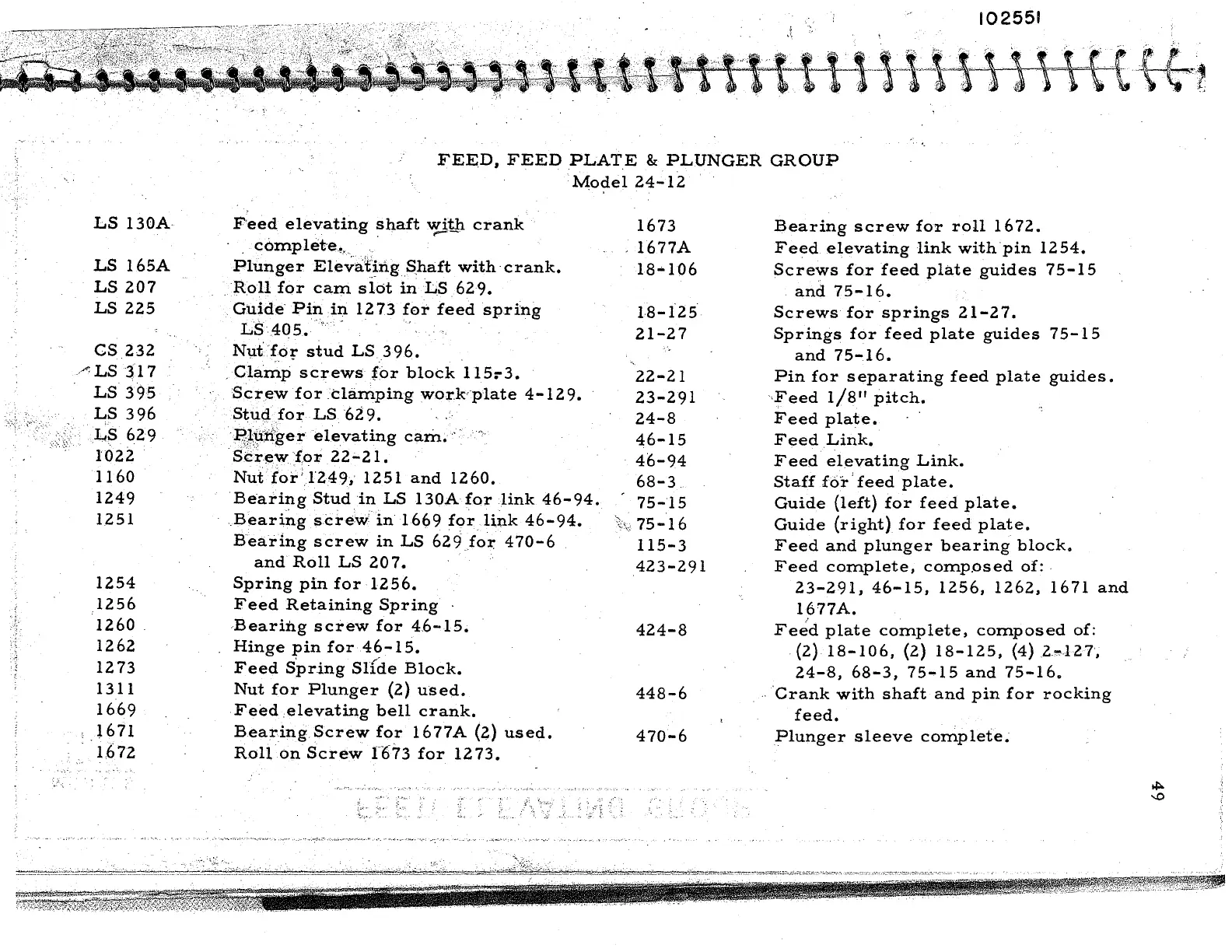

FEED, FEED PLATE & PLUNGER GROUP
Model 24-12
F·eed elevating shaft ~th crank
complete!. .
Plunger Elevat~ngS_haft with· crank.
. Roll for cam siot in LS 629.
Guide Pin in 1273 for feed spring
LS405. , ..
N11t for stud LS396.
. Clamp screws for block 115:-3.
Screw for damping workplate 4-129.
Stud for LS 629.
g~t(riger elevating cam. . . ..
·Strew for 22;..21.
Nut foi:-;1249:. 1251 and 1260.
. '
Bearing Stud in LS 130Afor link 46-94.
Bearing screw; in 1669 for link 46-94.
Bearing screw in LS 629for 470-6
and Roll LS 207.
Spring pin for 1256.
Feed Retaining Spring
Bearing screw for 46-15.
Hinge pin for 46-15.
Feed Spring Slide Block.
Nut for Plunger (2) used.
Feed ,elevating bell crank.
Bearing Screw for 1677A (2) used.
Rollon Screw 1673 for 1273.
1673
. 1677A
18-106
18-125
21-27
22-21
23-291
24-8
46-15
46-94
68-3
75-15
75-16
115-3
423-291
424-8
448-6
470-6
Bearing screw for roll 1672.
Feed elevating link with pin 1254.
Screws for feed plate guides 75-15
and 75-16.
Screws for springs 21-27.
Springs for feed plate guides 75-15
and 75-16.
Pin for separating feed plate guides.
·Feed 1/8" pitch.
Feed plate.
Feed Link.
Feed elevating Link.
Staff for' feed plate.
Guide (left) for feed plate.
Guide (right) for feed plate.
Feed and plunger bearing block.
Feed complete, comp.osed of: .
23-291, 46-15, 1256, 1262, 1671 and
1677A.
Fee'd plate complete, composed of:
(2) 18-106, (2) 18-125, (4) 2~127,
24-8, 68-3, 75·d5 and 75-16.
. Crank with shaft and pin for rocking
feed.
Plunger sleeve complete.
