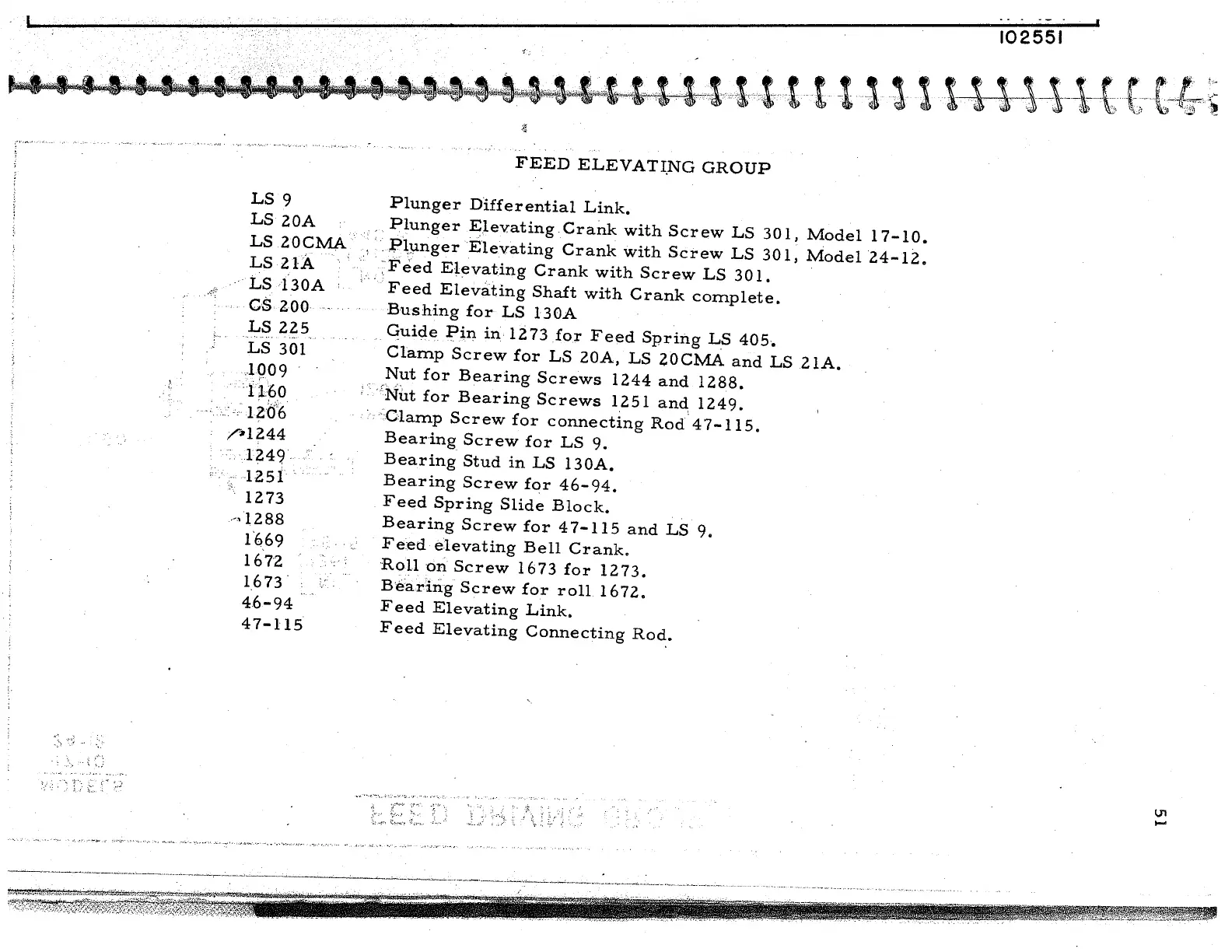

FEED ELEVATI.NG GROUP
Plunger Differential Link.
Plunger Elevating Crank with Screw LS 301, Model 17-10.
··.l?lt,mger Elevating Crank with Screw LS 301, Model 24-12.
:Feed Elevating Crank with Screw LS 301.
· Feed Elevating Shaft with Crank complete.
Bushing for LS 130A
Quide Pin in 1273 for Feed Spring LS 405.
Clamp Screw for LS 20A, LS 20CMA and LS 21A .
Nut for Bearing Screws 1244 and 1288.
· ;Nut for Bearing Screws 1251 and 1249.
· :.Clamp Screw for connecting Rod 47-115.
Bearing Screw for LS 9.
Bearing Stud in LS 130A •
Bearing Screw for 46-94.
Feed Spring Slide Block.
Bearing Screw for 47-115 and LS 9.
Feed elevating Bell Crank.
Roll on Screw 1673 for 1273.
Bearing Screw for roll 1672.
Feed Elevating Link.
Feed Elevating Connecting Ro~.
