Configuring the MC-12 for EQ
2-15
EQ User Guide
IMPROPER
The microphones SHOULD NOT be
positioned:
 Along the perimeter of the listening positions
or listening area
 In spots where listeners’ heads will not be during
listening
 In an obstructed line-of-sight path with the
loudspeakers
 In a location obstructed by furniture and other
fixtures
 Within 2 feet (0.61m) of loudspeakers and walls
 More than 30 feet (9.14m) from any one
loudspeaker.

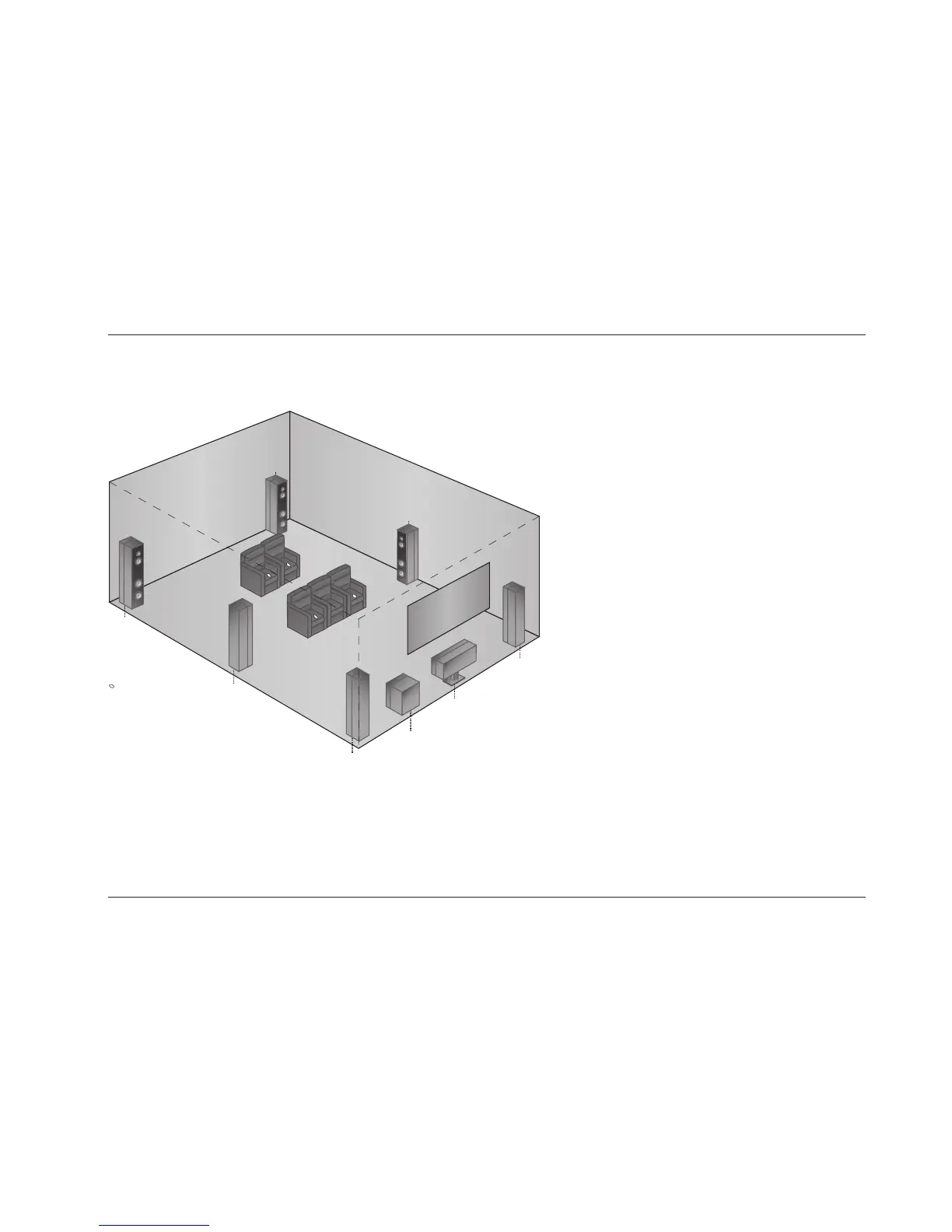

The listening room to the left shows improper microphone
placement for the automatic calibration. The microphones
are positioned in obstructed locations on seat cushions
rather than in spots where listeners’ heads will be
during listening.
Front
Left
Center
Subwoofer
Front
Right
Side
Right
Rear
Right
Rear
Left
Side
Left
Microphone
Figure 2-8. Improper microphone placement for automatic calibration.
