Lexmark C544dw - Page 7

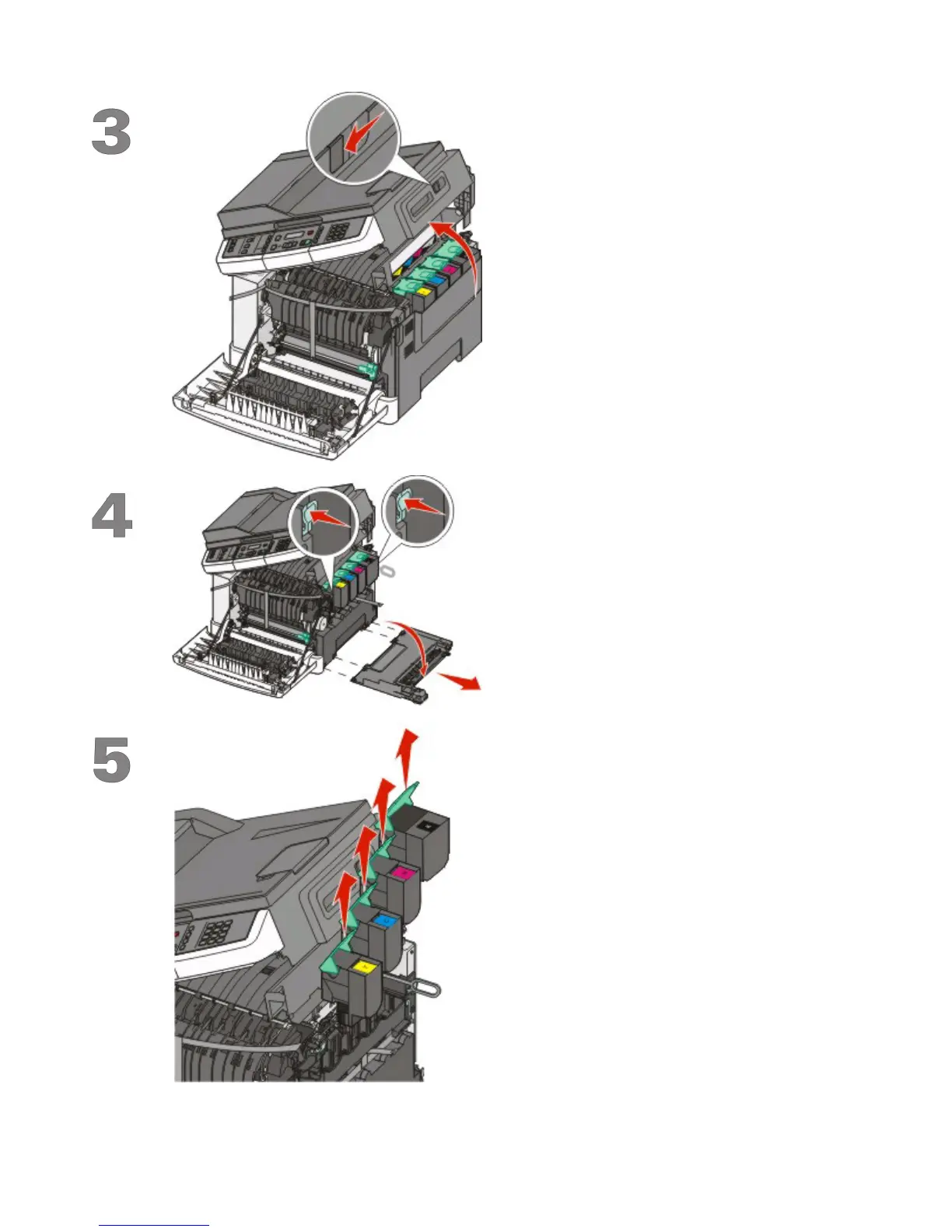

Slide the release latch to the left and lift to open the top
cover.
Push in the green touch points on each side of the
cartridges to release the side panel, and then remove
it.
Remove the toner cartridges by lifting the handles and
then gently pulling away from the imaging kit.
Setting up the printer
7
