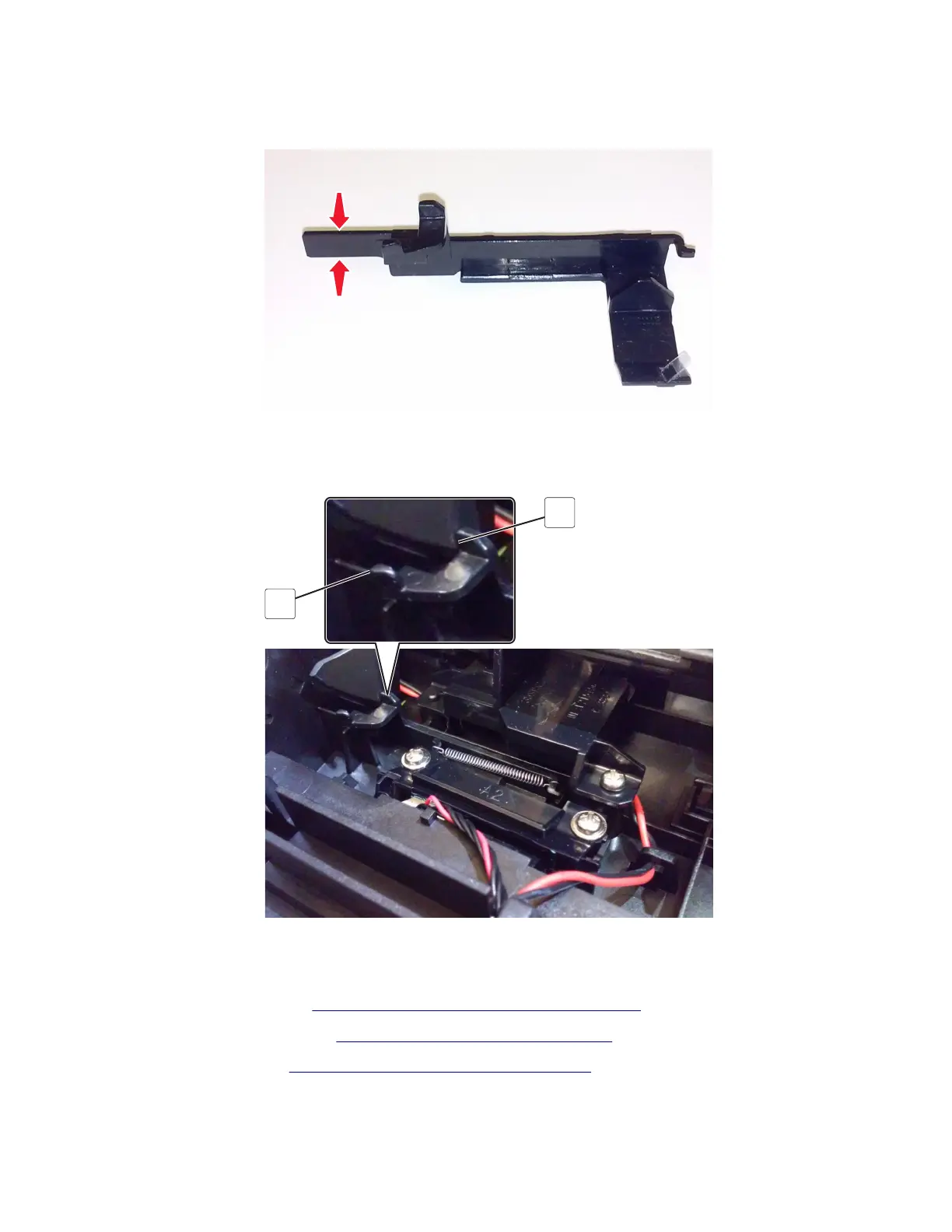

Installation notes:
a Apply RheoGel 793 to the top and bottom of the shutter blade extension.
b Apply RheoGel 793 to the point of contact between the bracket (A) and cam.
c Apply RheoGel 793 to the point of contact to the lower edge (B), where the wiper bracket glides.
B
A
Sensor (paper present) removal
1 Remove the rear cover. See “Rear door and cover removal” on page 234.
2 Remove the power supply. See “Power supply removal” on page 216.
3 Remove the duplex. See “Duplex assembly removal” on page 218.
4600-830, -835, -895
Parts removal
224
