3-94 Service Manual
7462
Flatbed scanner skew adjustment
1. Remove the scanner cover, left. Go to “Scanner cover, left removal (models X651, X652, X654 and
X656)” on page 4-131 or “Scanner cover, left removal (model X658)” on page 4-132.

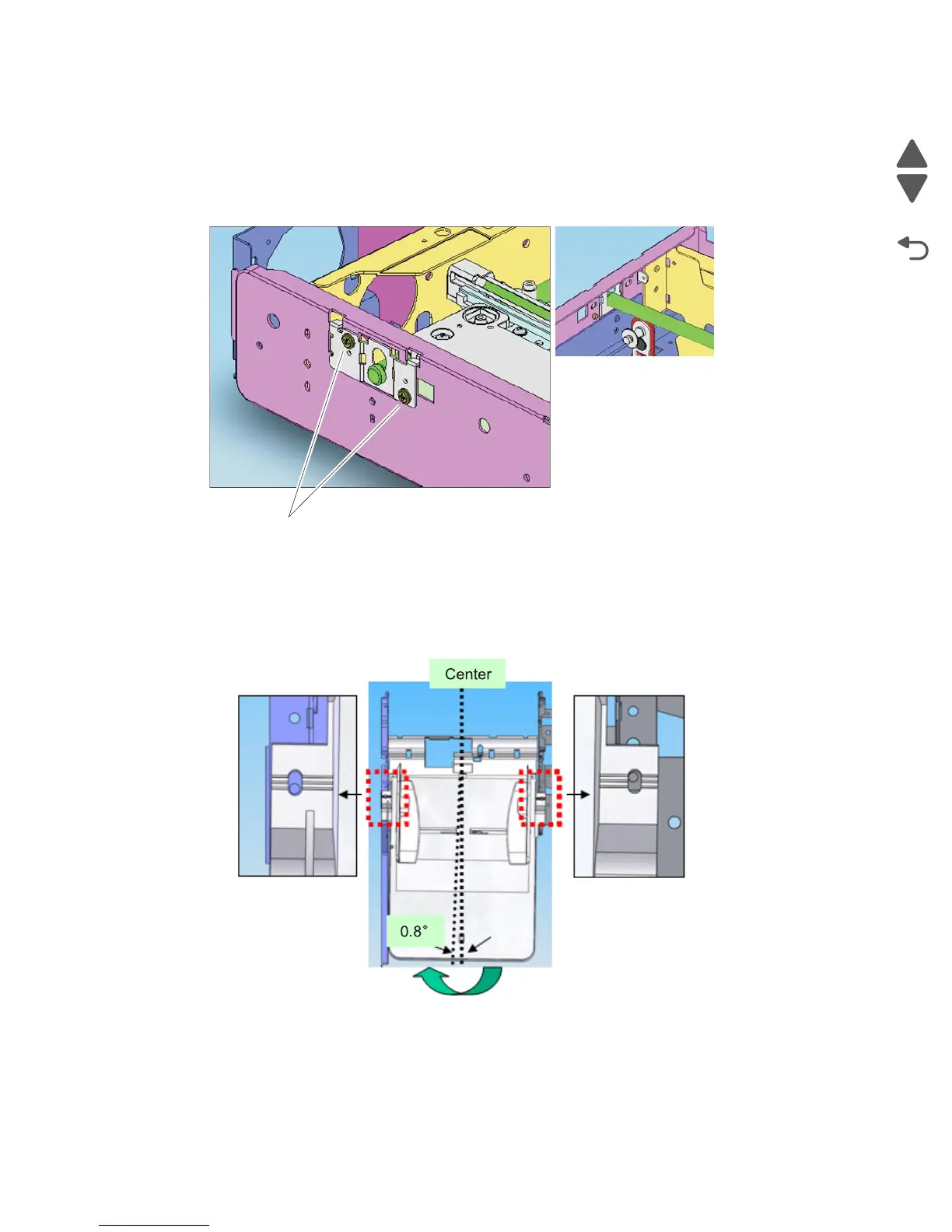

2. To adjust flatbed scanner skew, loosen the screws (A) and slide the scanner rod mounting plate left or right
accordingly and retighten screws (A).
ADF skew adjustment (via ADF document tray)
1. Remove the ADF cover front and ADF cover, rear. Go to “ADF cover, front removal” on page 4-59 and
“ADF cover, rear removal” on page 4-60.
2. Loosen the screws securing the ADF document tray on either side.
To Next Page
