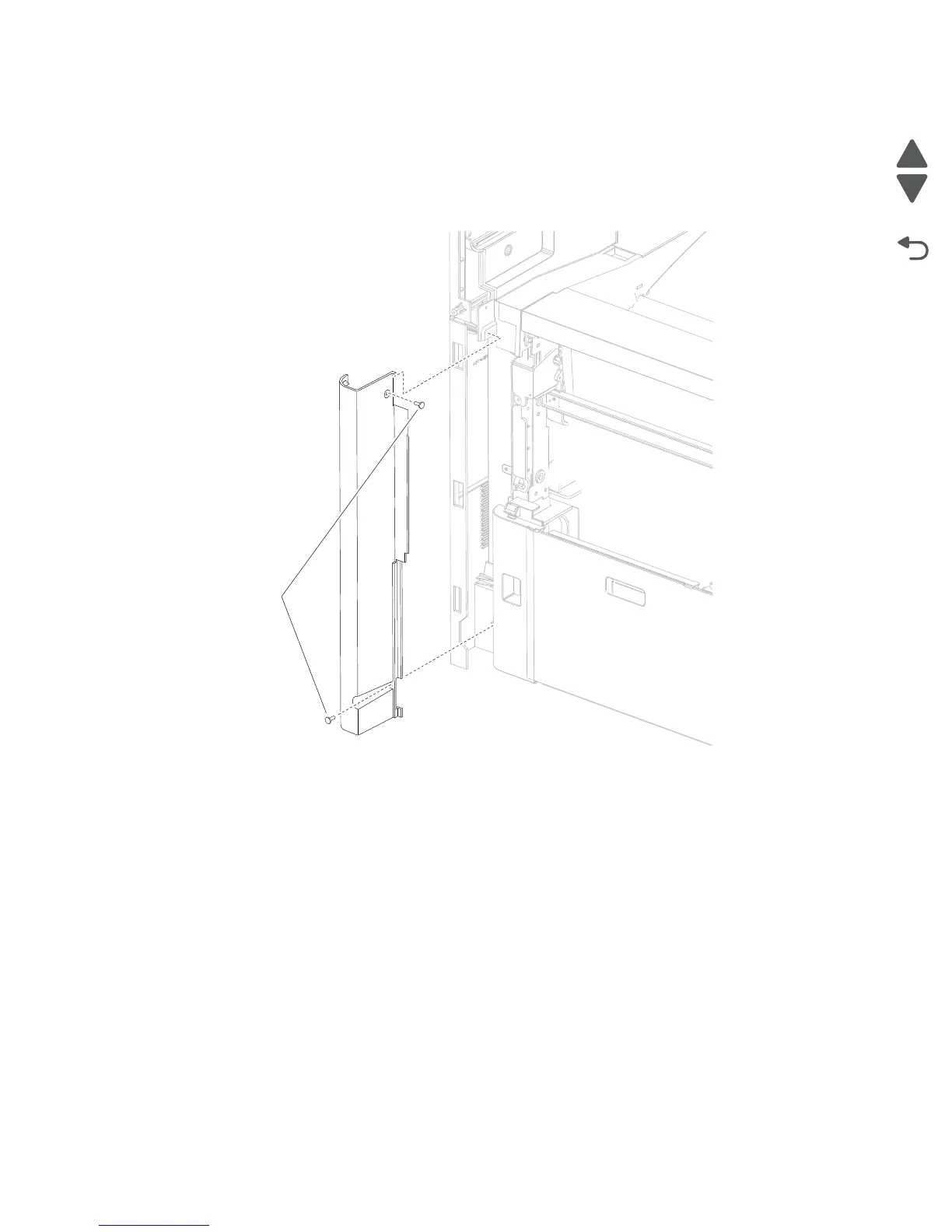

Cover, right rear corner removal (model X658)

1. Remove the scanner support cover, right side rear. See “Scanner support cover, right rear removal

(model X658)” on page 4-124.

2. Open the rear door.

3. Remove the two screws (A) securing the cover, right rear corner.

4. Lift and remove the cover, right rear corner.
