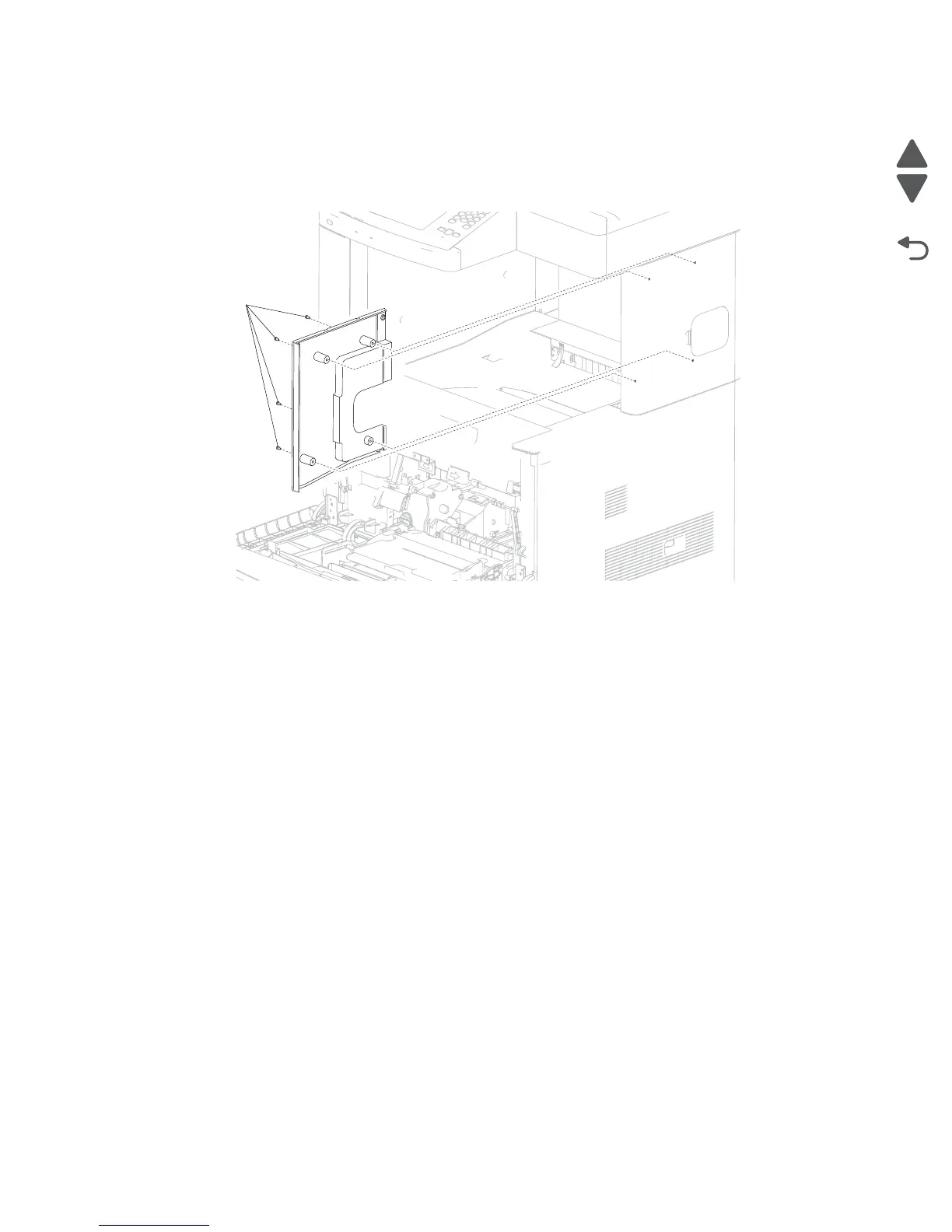

Scanner support inner cover, right removal (model X658)

1. Remove the scanner support cover, right rear. See “Scanner support cover, right rear removal (model

X658)” on page 4-124.

2. Remove the four screws (A) securing the scanner support inner cover, right to the machine.

3. Pull the bottom out, and remove the scanner support inner cover, right.
