Check the transfer belt drive motor assembly drive gear for
damage.
1. Remove the transfer belt unit assembly. Go to
“Transfer belt drive motor assembly removal” on
page 4-93.

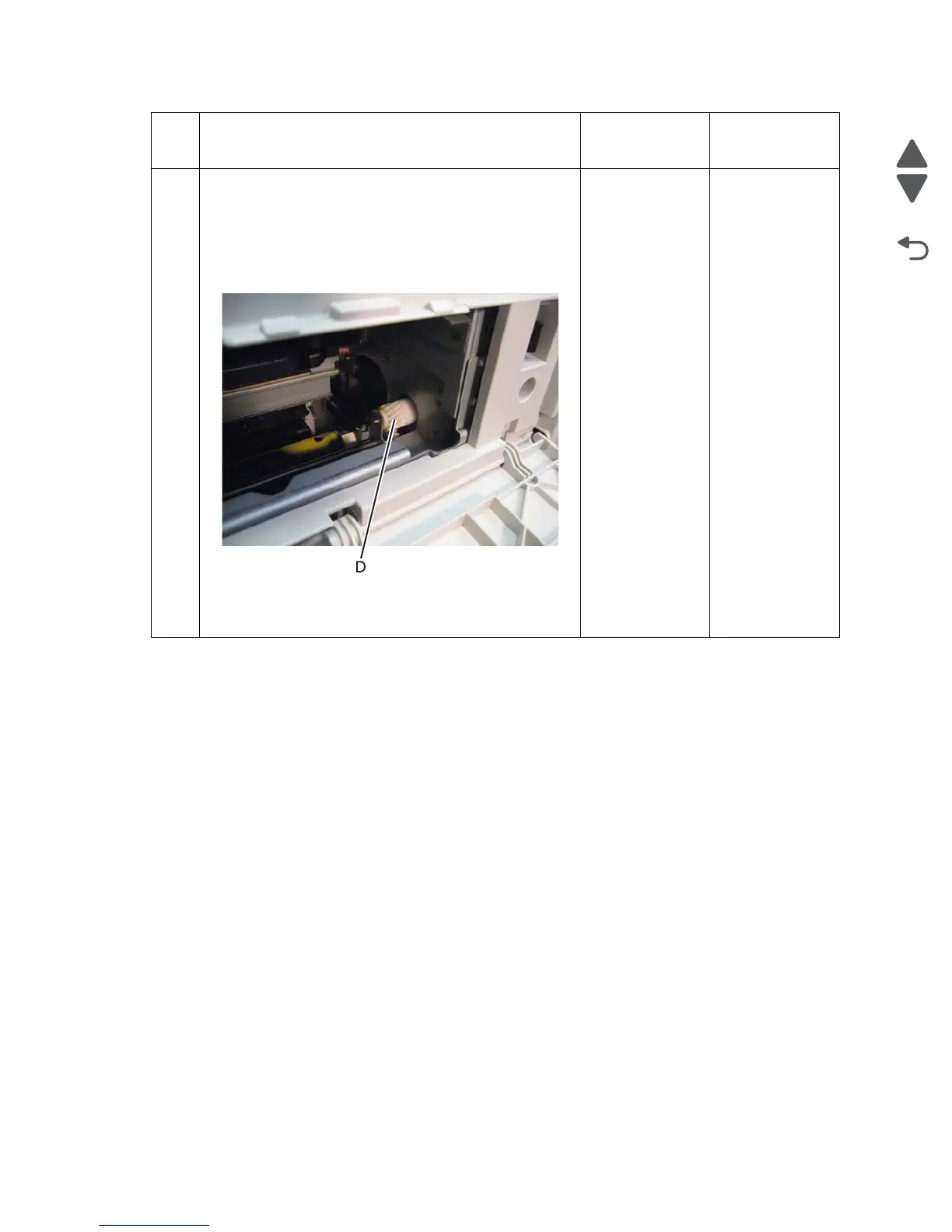

2. Inspect the transfer belt drive motor assembly drive gear
(D) for damage.
Is the transfer belt drive motor assembly drive gear
damaged?
Replace the
transfer belt drive
motor assembly.
If the problem
persists, contact
the next level of
support.
Contact the next
level of support.
Step Check Yes No
