4-26 Service Manual
7510

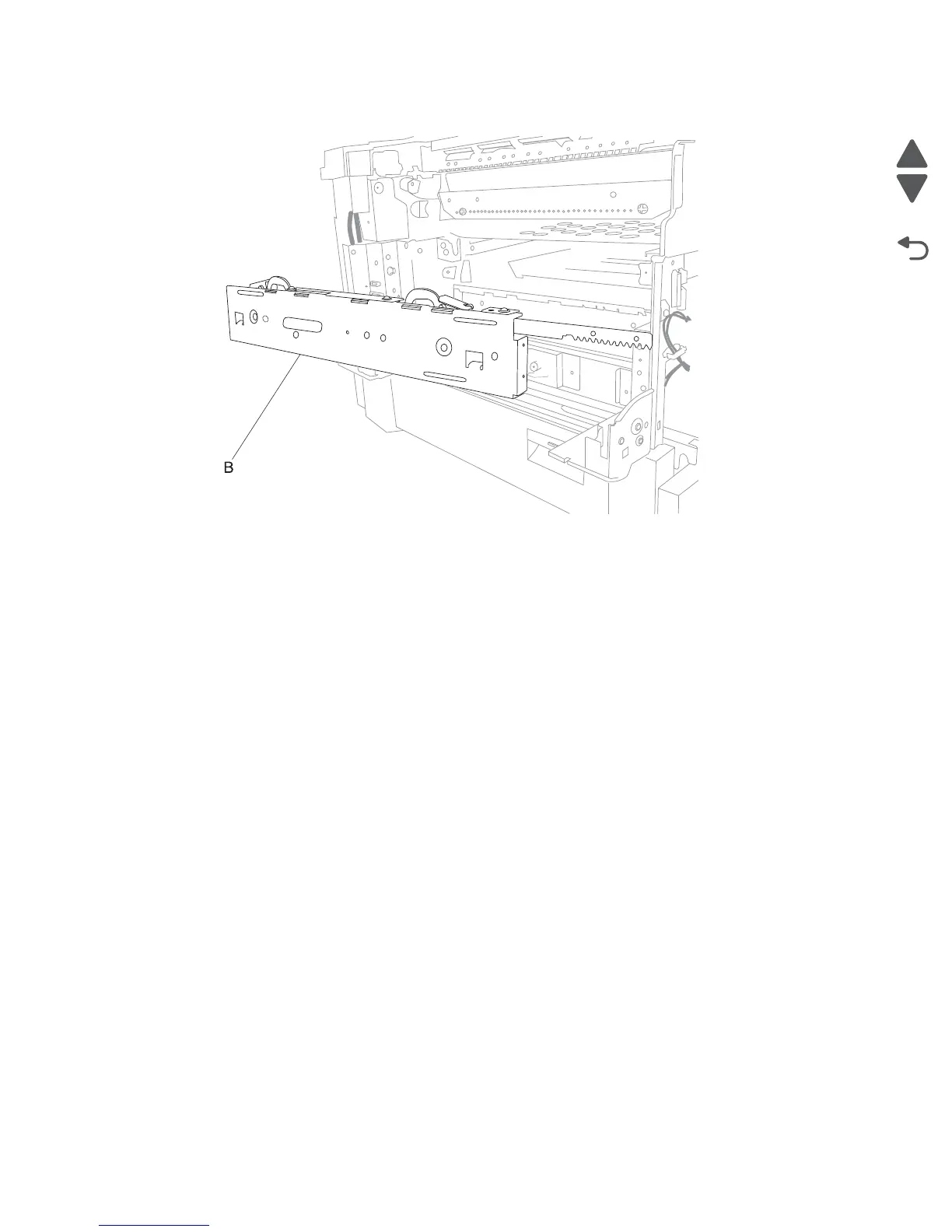

23. Remove the left transfer belt lift assembly (B) from the machine.
Replacement note: Ensure that the two E-clips, four washers, and two bearings are properly reinstalled
when installing the new left transfer belt lift assembly (B).
Replacement warning: When replacing the transfer belt lift handle assembly (B), the two transfer belt lift
mechanisms must be correctly timed or print quality problems and damage will occur.
