Repair information 4-61
7510

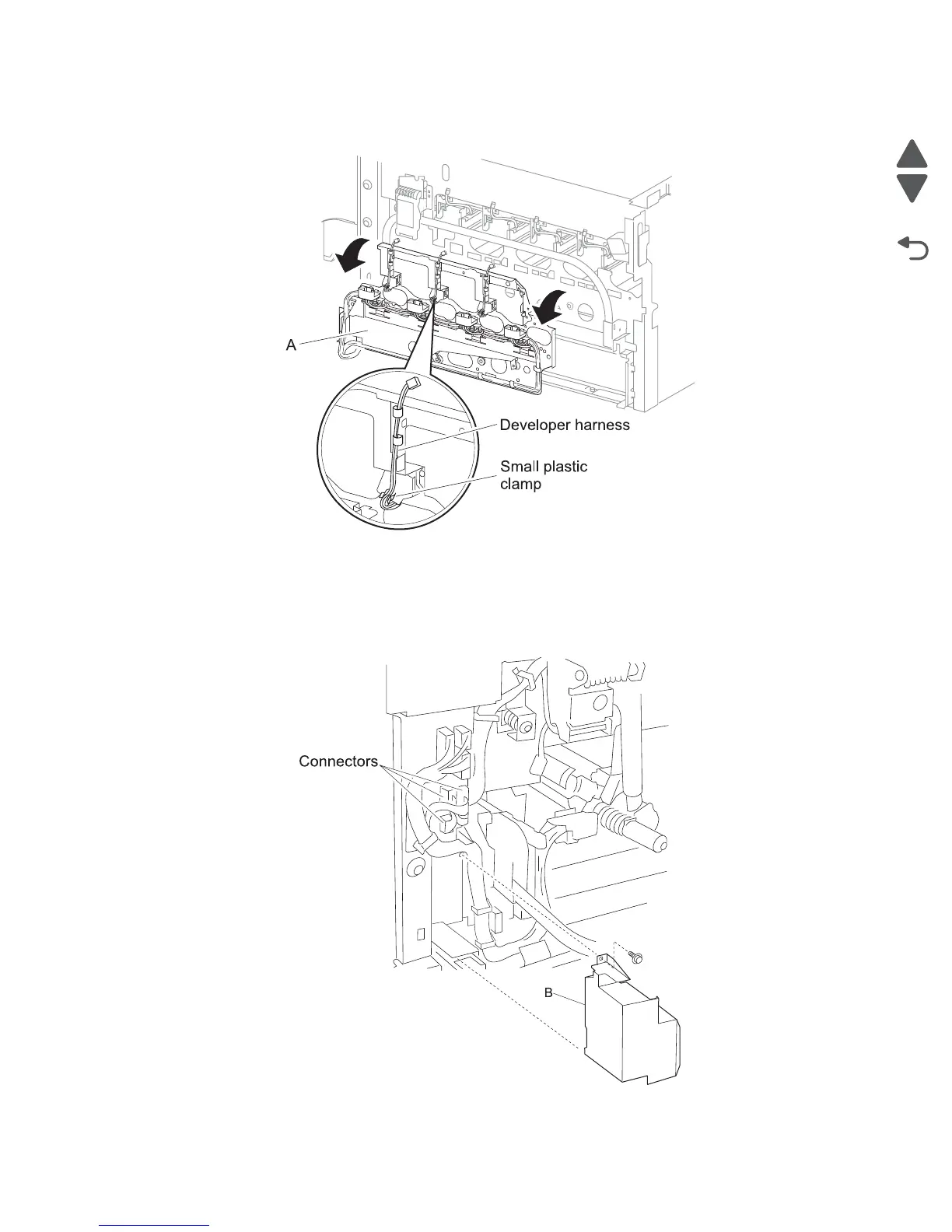

13. While holding the four developer unit assemblies firmly inside the machine, gently remove the developer
interlock plate assembly (A).
14. Remove the developer interlock plate assembly (A) and allow it to gently hang down by the harness if
removing the developer units. If removing the developer interlock plate assembly (A) from the machine,
goes to step 15.
15. Remove the screw securing the harness cover (B) to the machine.
16. Remove the harness cover (B).
17. Disconnect the connector from the developer interlock plate assembly (A).
