4-98 Service Manual
7510
Go Back
Previous
Next

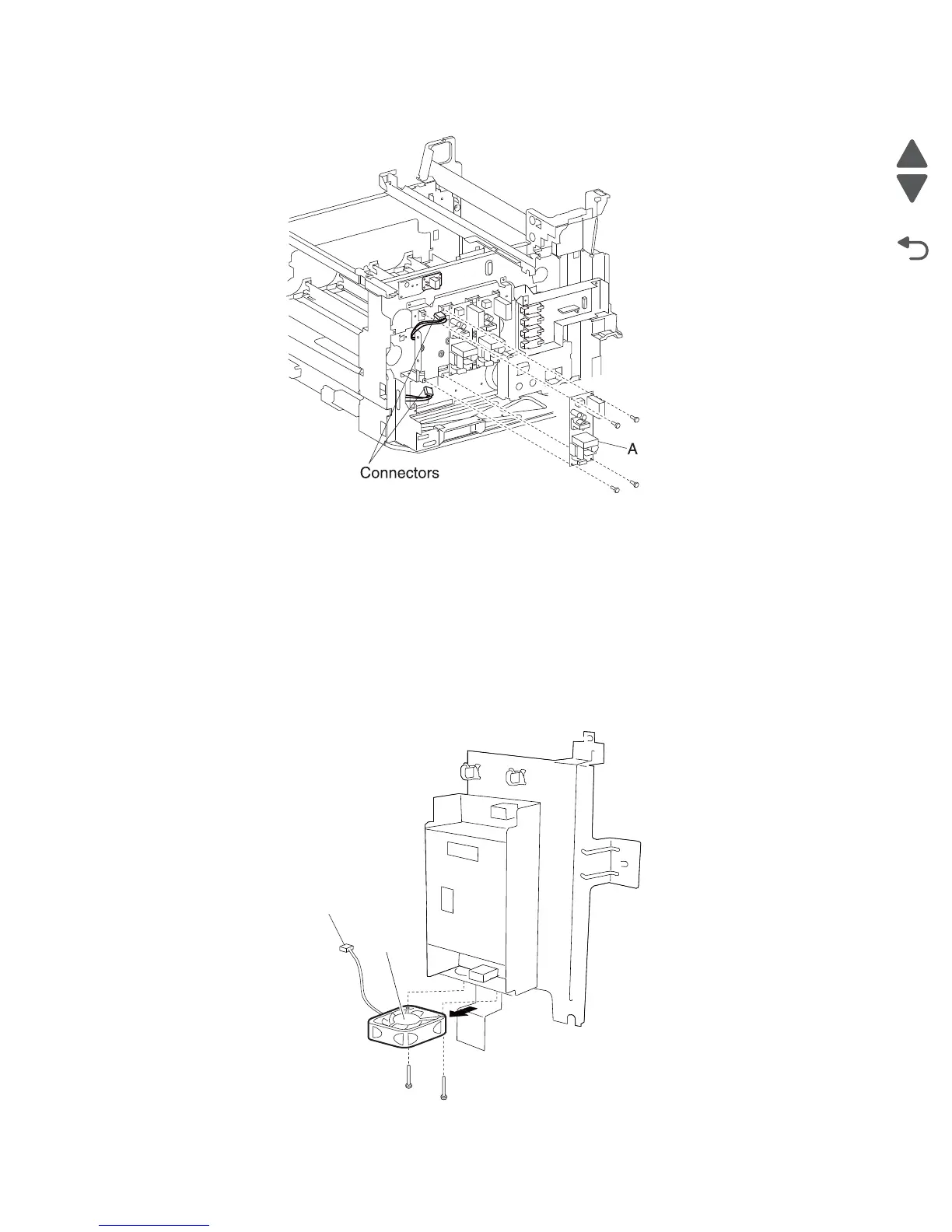

7. Remove the appropriate 5V LVPS card assembly (A).
24V LVPS cooling fan removal
1. Remove the rear cover assembly. See Rear cover assembly removal” on page 4-5.
2. Remove the rear upper cooling fan bracket assembly. See “Rear upper cooling fan bracket assembly
removal” on page 4-111.
3. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
4. Remove the 24V LVPS card bracket assembly. See “24V LVPS card bracket assembly removal” on
page 4-95.
5. Disconnect the connector from the 24V LVPS cooling fan (A).
6. Remove the two screws securing the 24V LVPS cooling fan (A) to the 24V LVPS card bracket assembly (B).
7. Remove the 24V LVPS cooling fan (A).
Replacement warning: When replacing the 24V LVPS cooling fan (A), ensure that the label is facing up.
A
Connector
