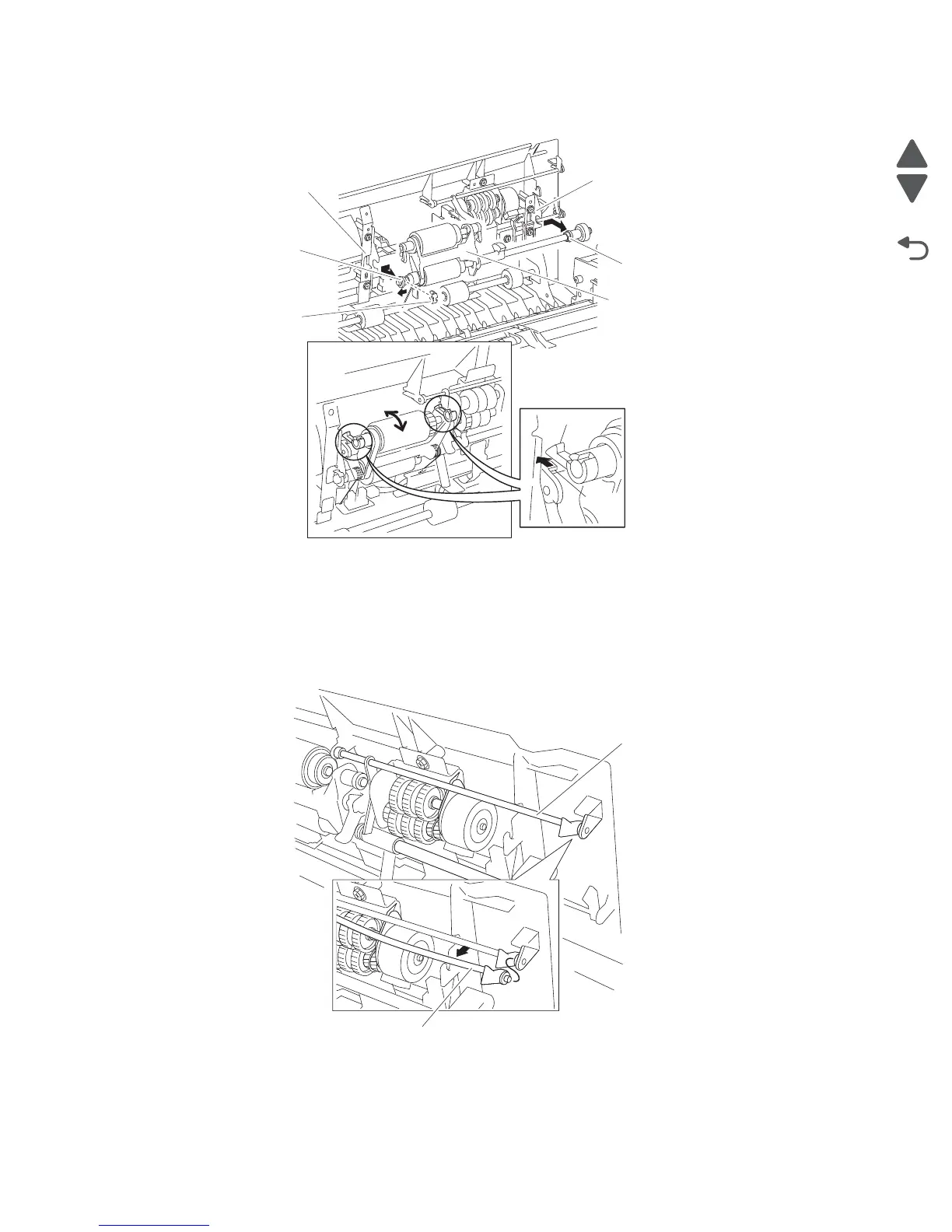

Document set actuator removal
1. Open the ADF left cover assembly.
2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-151.
3. Gently pry the document set actuator (A) from the ADF left cover assembly.
4. Remove the document set actuator (A).
C
B
A
E
D
F
Set gate
Plate
A
A
