12. Remove the harness from the harness guide (C).

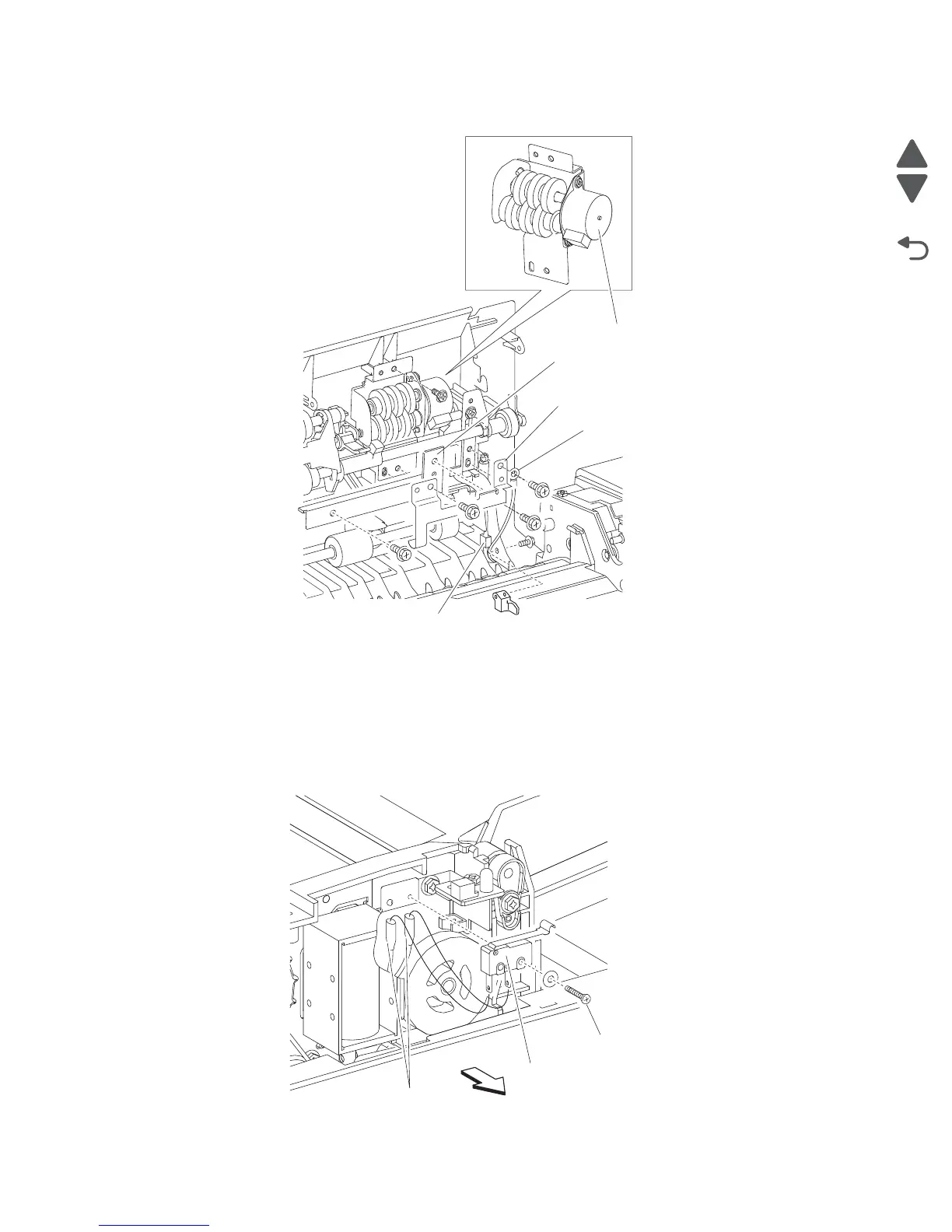

Switch (ADF left cover interlock) removal
1. Open the ADF left cover assembly.
2. Remove the ADF front cover assembly. See “ADF front cover assembly removal” on page 4-138.
3. Remove the screw and washer securing the switch (ADF left cover interlock) (A).
4. Disconnect the two connections to the switch (ADF left cover interlock) (A) with needle nose pliers.
5. Remove the switch (ADF left cover interlock).
B
A
C
D
Connector
A
Screw
Connections
Front
