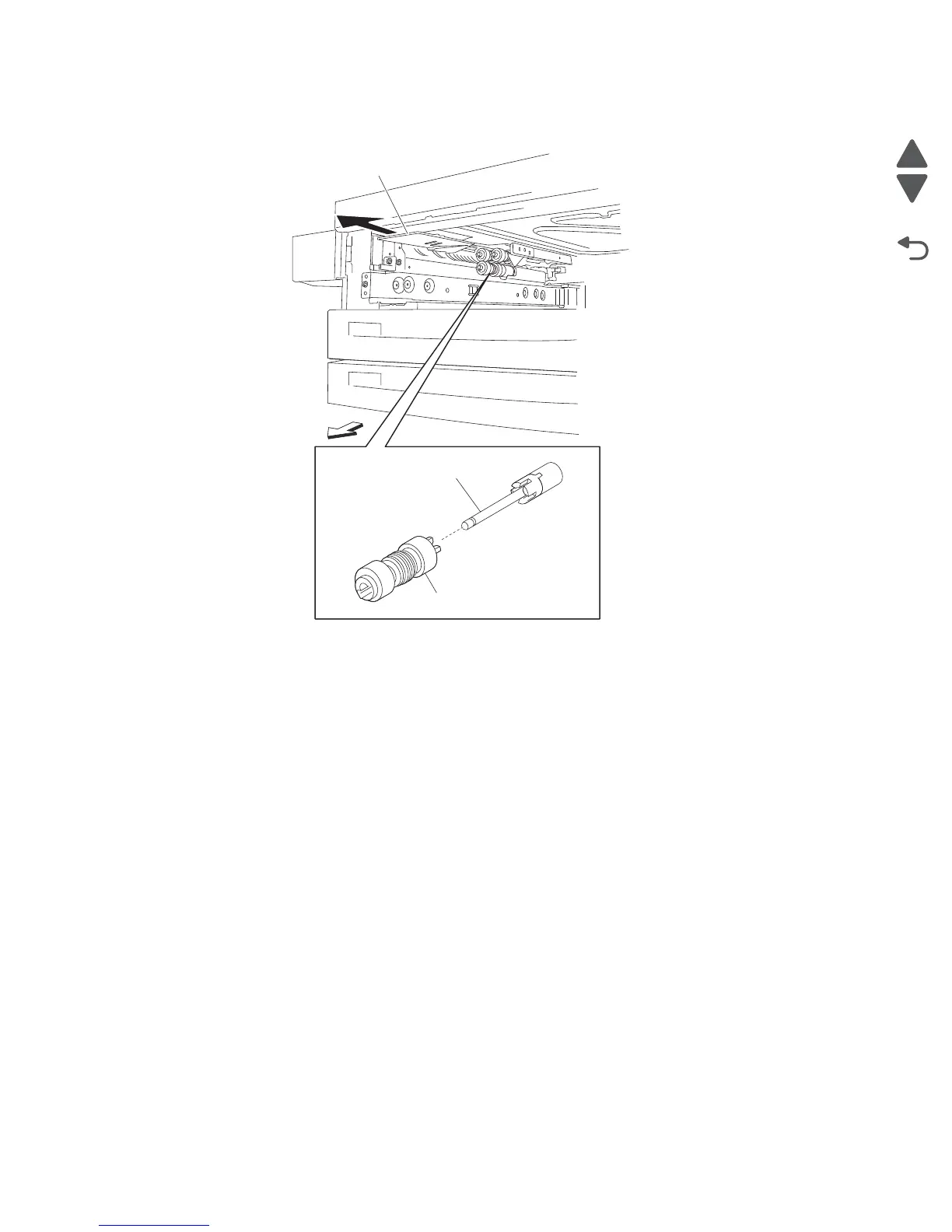

4. Remove the separation roll (B).
Note: Do not touch the rubber surface of the feed roll (B).
Replacement note: Before re-installing, do not touch the rubber surface of the separation roll (B).
A
Front
B
C
