Lexmark X945e MFP 7510 series - Assembly 22: Transfer Belt Lift 1

7-24 MFP Service Manual
7510
Go Back
Previous
Next

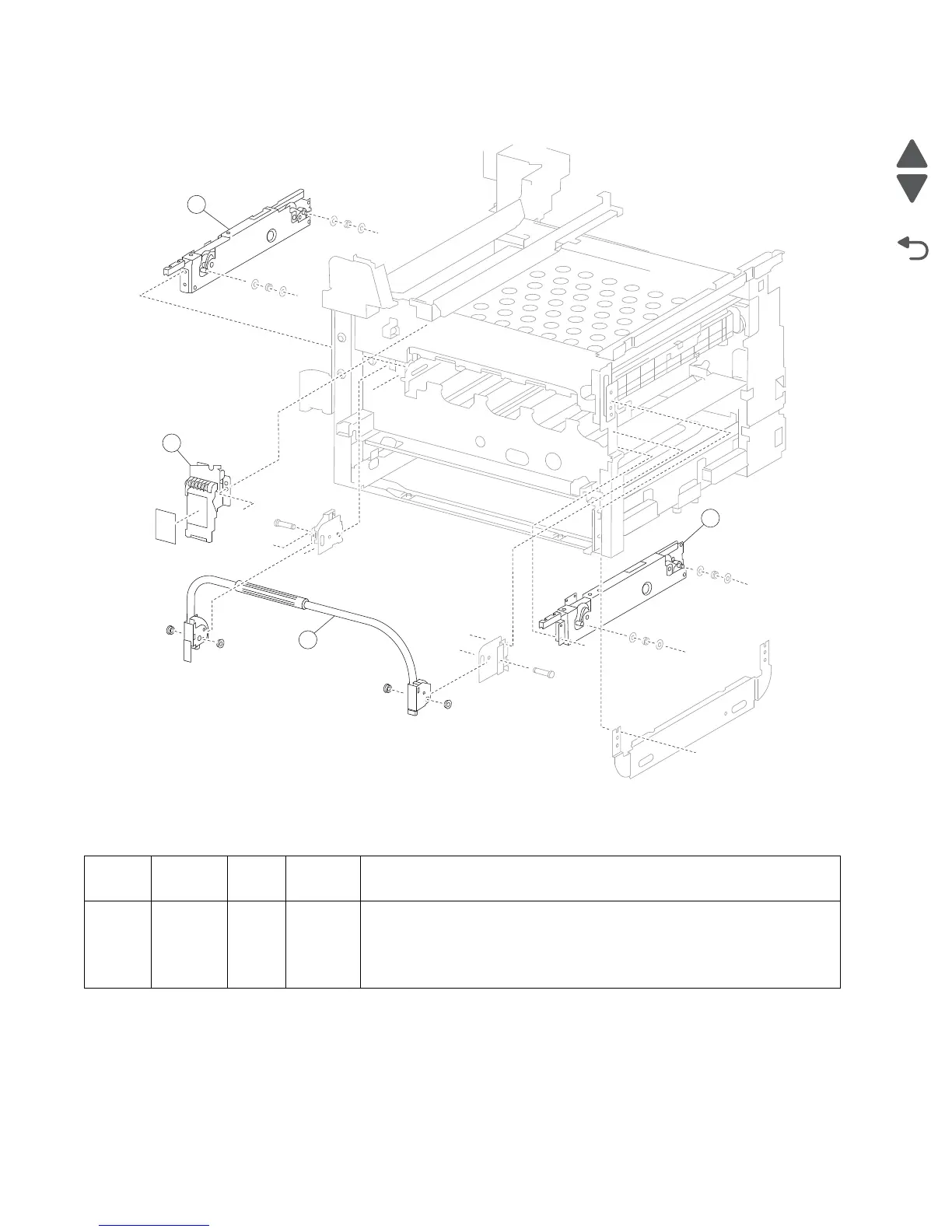

Assembly 22: Transfer belt lift 1
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3722 1 1 Right transfer belt lift assembly
2 40X3727 1 1 Transfer belt lift handle assembly
3 40X3723 1 1 Transfer belt lift latch assembly with label
4 40X3721 3 1 Left transfer belt lift assembly
3
2
1
4
