4-3. Do-it-yourself maintenance
4
Maintenance and care

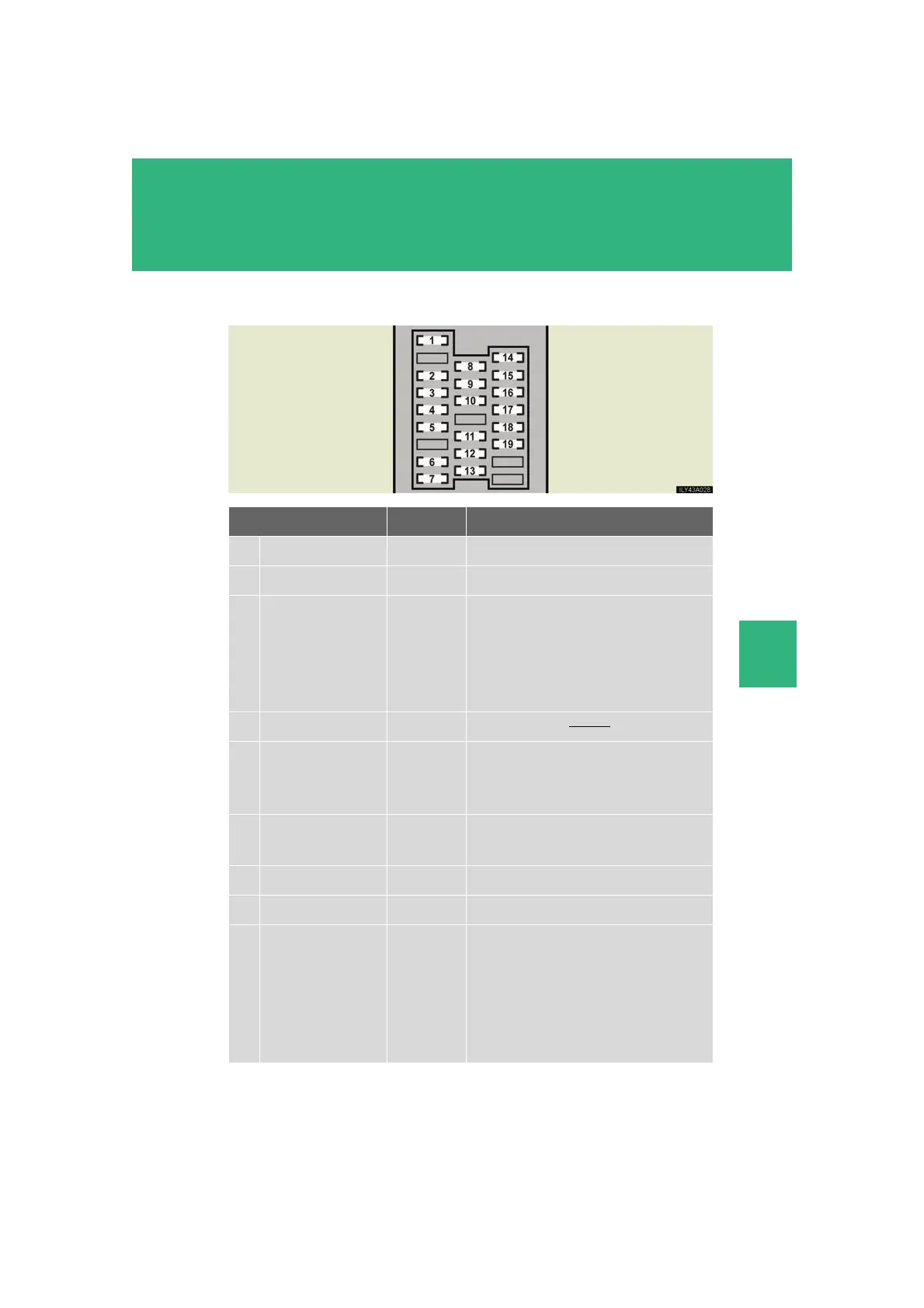

■ Passenger’s side instrument panel
Fuse Ampere Circuit
1
FR P/SEAT RH 30 Power seat system
2
OBD 7.5 On-board diagnosis system
3
STOP SW 7.5
Stop/tail lights, Multi-port fuel injec-
tion system/sequential multiport fuel
injection system, Starting system,
ECB system, VSC system, Shift lock
system
4
AM1 7.5
5
TI&IE 20
Power tilt and telescopic steering
wheel, Multiplex communication sys-
tem
6
SECURITY 7.5
Smart access system with push-but-
ton start
7
STR LOCK 25 Steering lock system
8
GAUGE 7.5 Gauges and meters
9
IGN 10
Multi-port fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, Stop/tail
lights, Steering lock system, ECB sys-
tem, Lexus Link System ECU, Occu-
pant classification system ECU
