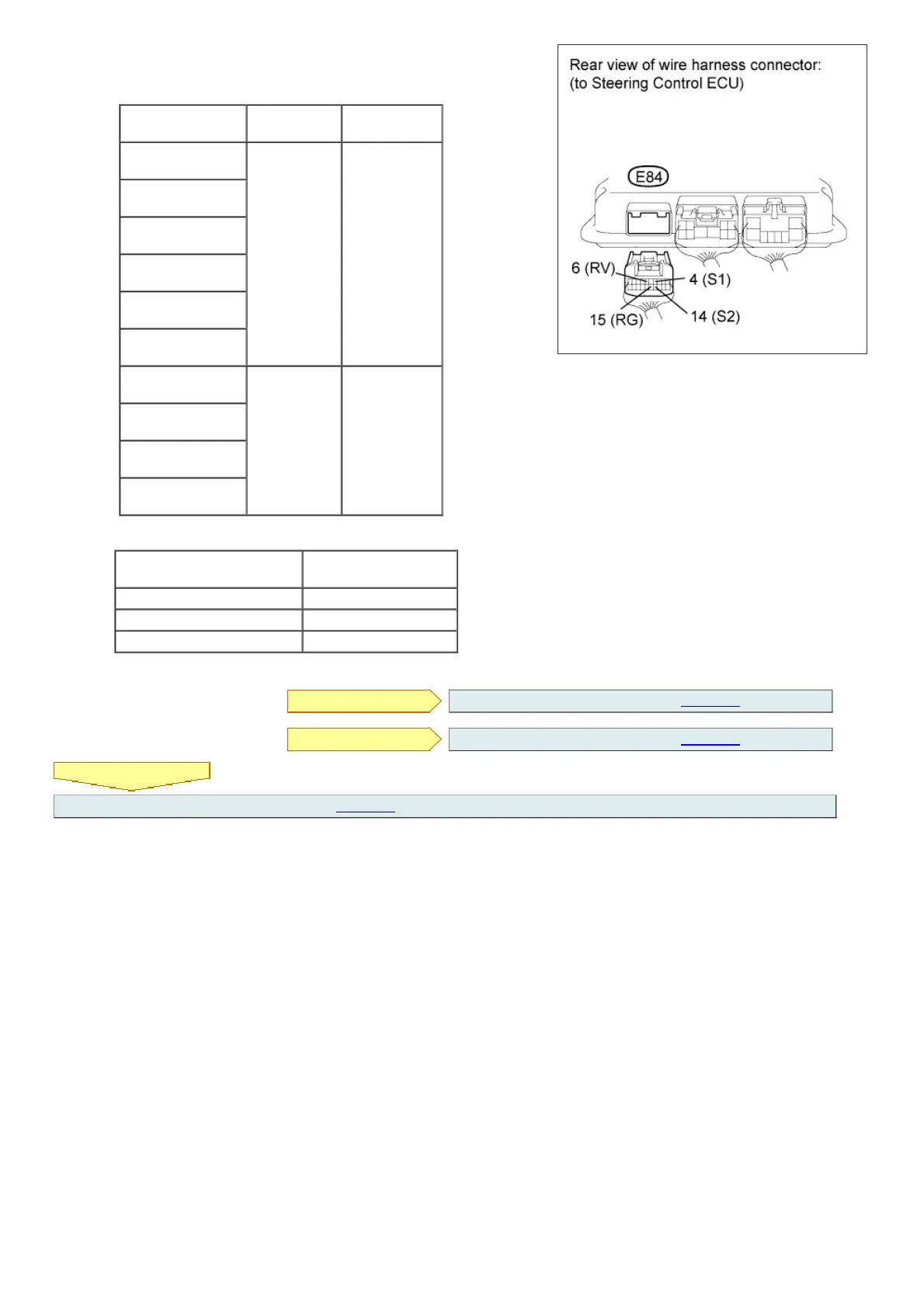

The resistance must be measured with the steering actuator connector
connected.
Standard Resistance:
Tester Connection Condition
Specified
Condition
E84-4 (S1) - E84-6
(RV)
Always Below 200 Ω
E84-4 (S1) - E84-14
(S2)
E84-4 (S1) - E84-15
(RG)
E84-6 (RV) - E84-14
(S2)
E84-6 (RV) - E84-15
(RG)
E84-14 (S2) - E84-15
(RG)
E84-4 (S1) - Body
ground
Always 10 kΩ or higher
E84-6 (RV) - Body
ground
E84-14 (S2) - Body
ground
E84-15 (RG) - Body
ground
Result
Result
Result
Proceed to
NG A
OK (for LHD) B
OK (for RHD) C
B REPLACE STEERING CONTROL ECU (Click here)
C REPLACE STEERING CONTROL ECU (Click here)
A
REPLACE STEERING ACTUATOR ASSEMBLY (Click here)
