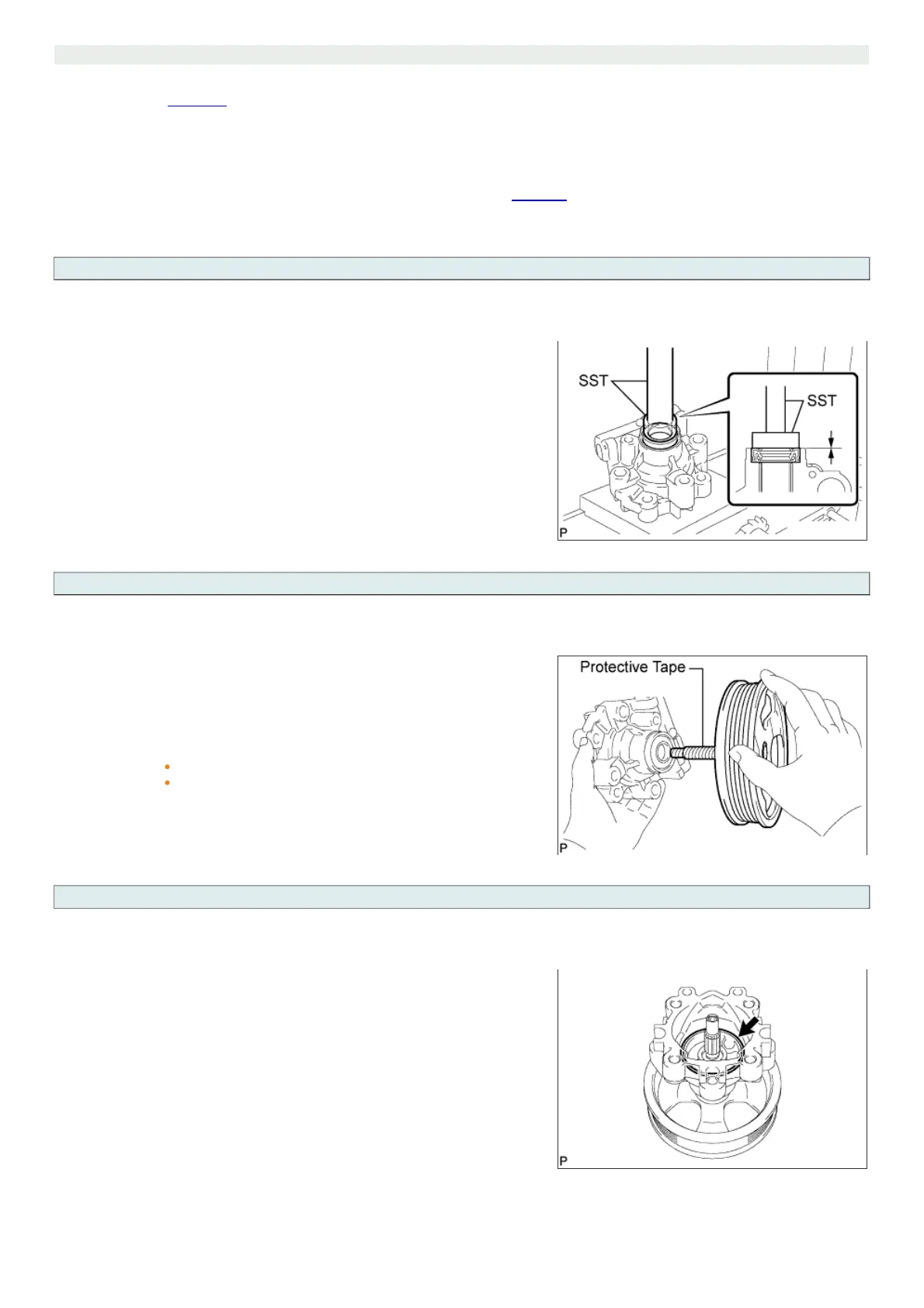

VANE PUMP > REASSEMBLY
for Preparation Click here
NOTICE:
When installing parts, coat the parts indicated by arrows with power steering fluid ( Click here).
1. INSTALL VANE PUMP HOUSING OIL SEAL
a. Coat the lip of a new oil seal with power steering fluid.
b. Using SST and a press, press in the oil seal.
SST
09950-60010 (09951-00280)
09950-70010 (09951-07100)
NOTICE:
Make sure that the oil seal is installed facing in the correct direction as shown
in the illustration.
2. INSTALL VANE PUMP SHAFT WITH VANE PUMP PULLEY
a. Coat the inside surface of the bushing in the vane pump front housing with
power steering fluid.
b. Gradually insert the vane pump shaft with vane pump pulley.
NOTICE:
Do not damage the lip of the oil seal in the front housing.
Wrap protective tape around the spline of the vane pump shaft
with vane pump pulley in order to prevent damage to the oil
seal.
3. INSTALL VANE PUMP FRONT SIDE PLATE
a. Coat a new O-ring with power steering fluid and install it into the front housing.
b. Coat a new O-ring with power steering fluid and install it onto the front side plate.
