ground Always 11 to 14 V
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

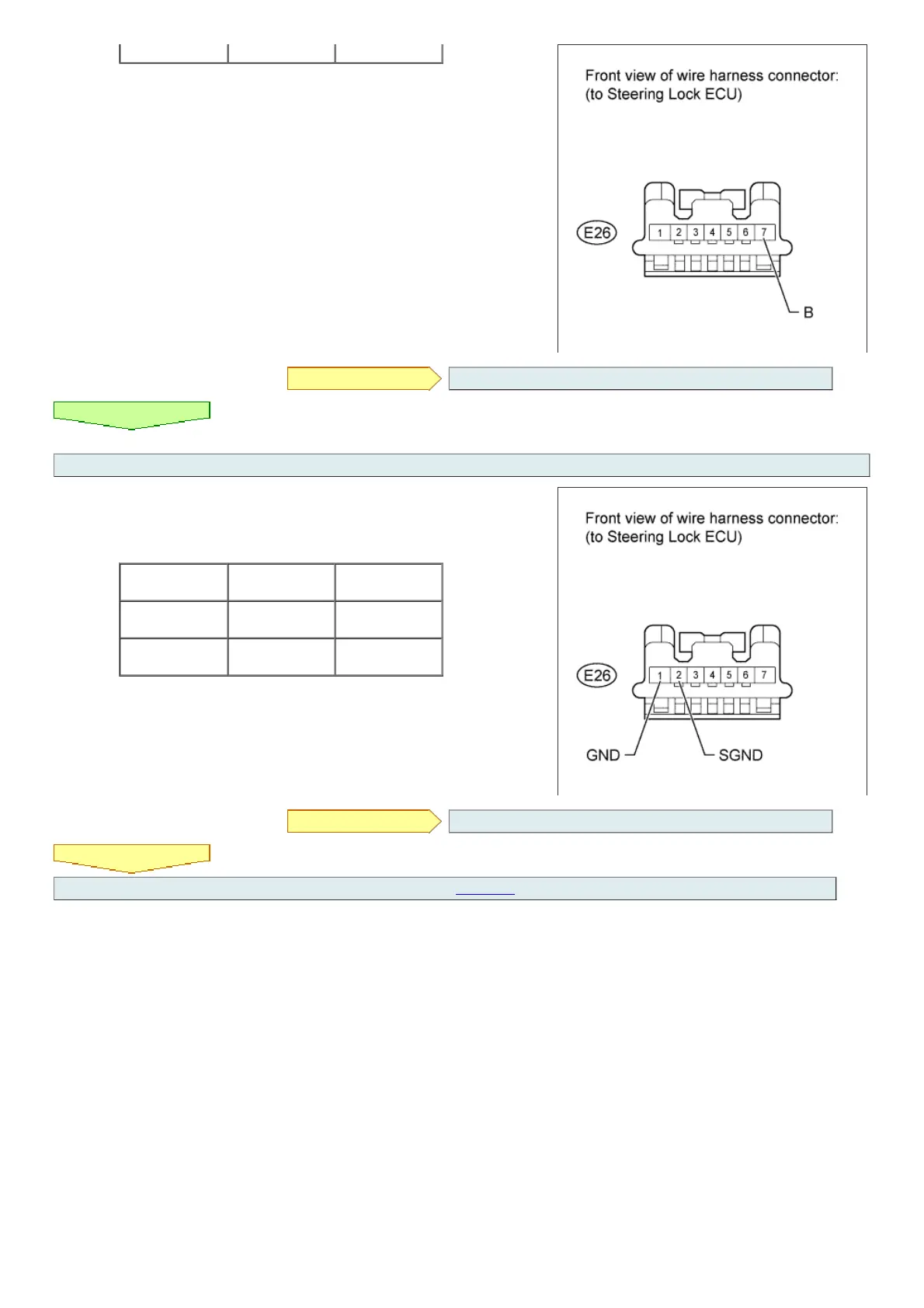

3.CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BODY GROUND)
a. Disconnect the E26 steering lock ECU connector.
b. Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection Condition
Specified
Condition
E26-1 (GND) -
Body ground
Always Below 1 Ω
E26-2 (SGND) -
Body ground
Always Below 1 Ω
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
OK
GO TO STEERING LOCK SYSTEM (PROBLEM SYMPTOMS TABLE) ( Click here)
