Before driving
Airbag system components
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and front passenger. The
driver airbag system consists of the driver seat’s position sensor etc. The
front passenger’s airbag system consists of the front passenger occupant
classification sensor etc.

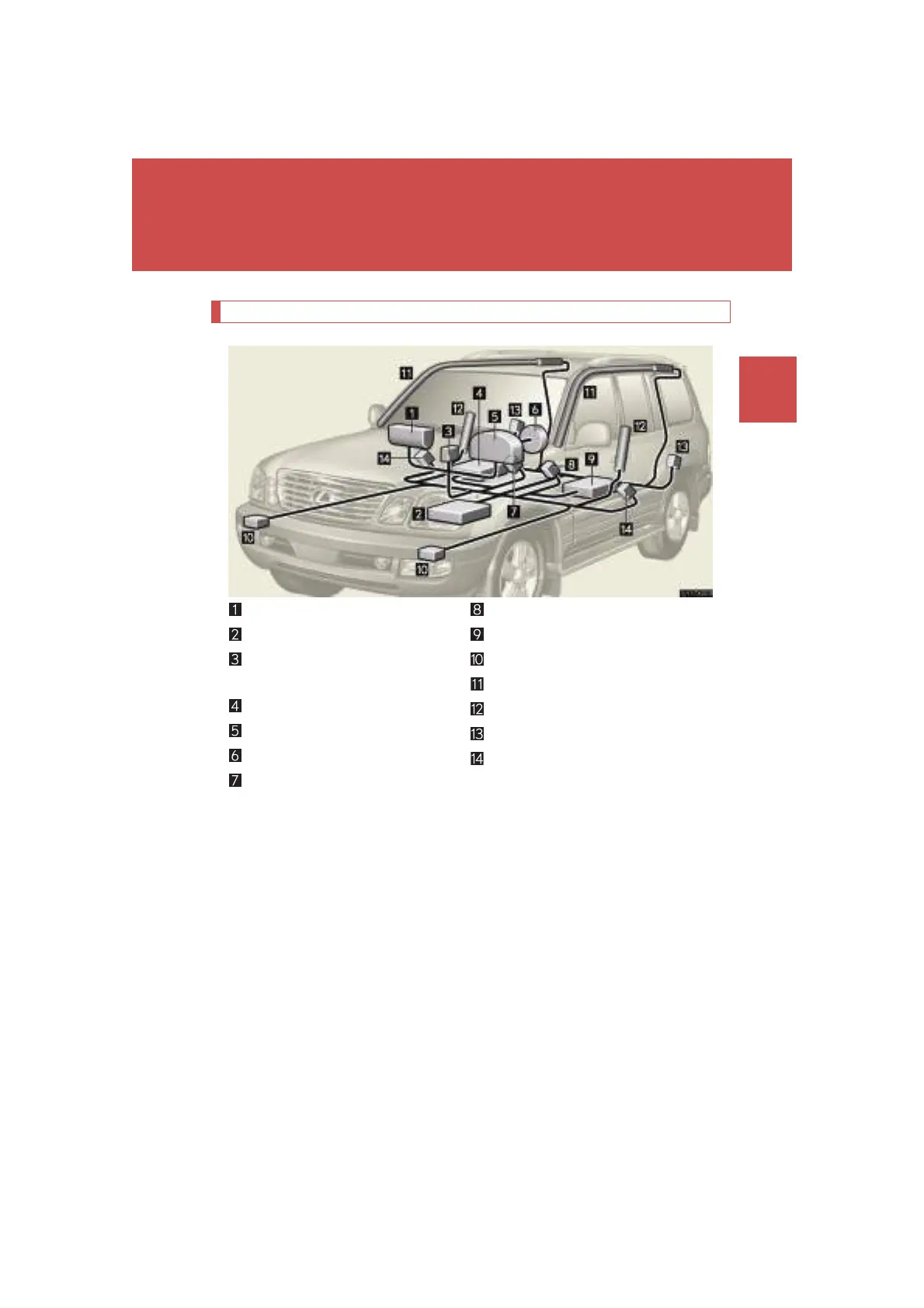

The main SRS airbag system components are shown above. The SRS air-
bag system is controlled by the airbag sensor assembly. The airbag sen-
sor assembly consists of a safing sensor and an airbag sensor.
Front passenger airbag
Airbag sensor assembly
Front passenger occupant
classification indicator light
Occupant detection sensor
SRS warning light
Driver airbag
Front passenger’s seat belt
buckle switch
Driver's seat belt buckle switch
Driver's seat position sensor
Front airbag sensor
Curtain shield airbag
Side airbag
Curtain shield airbag sensor
Side and curtain shield airbag
sensor
To Next Page
