EXTERNAL EQUIPMENT SETUP
23

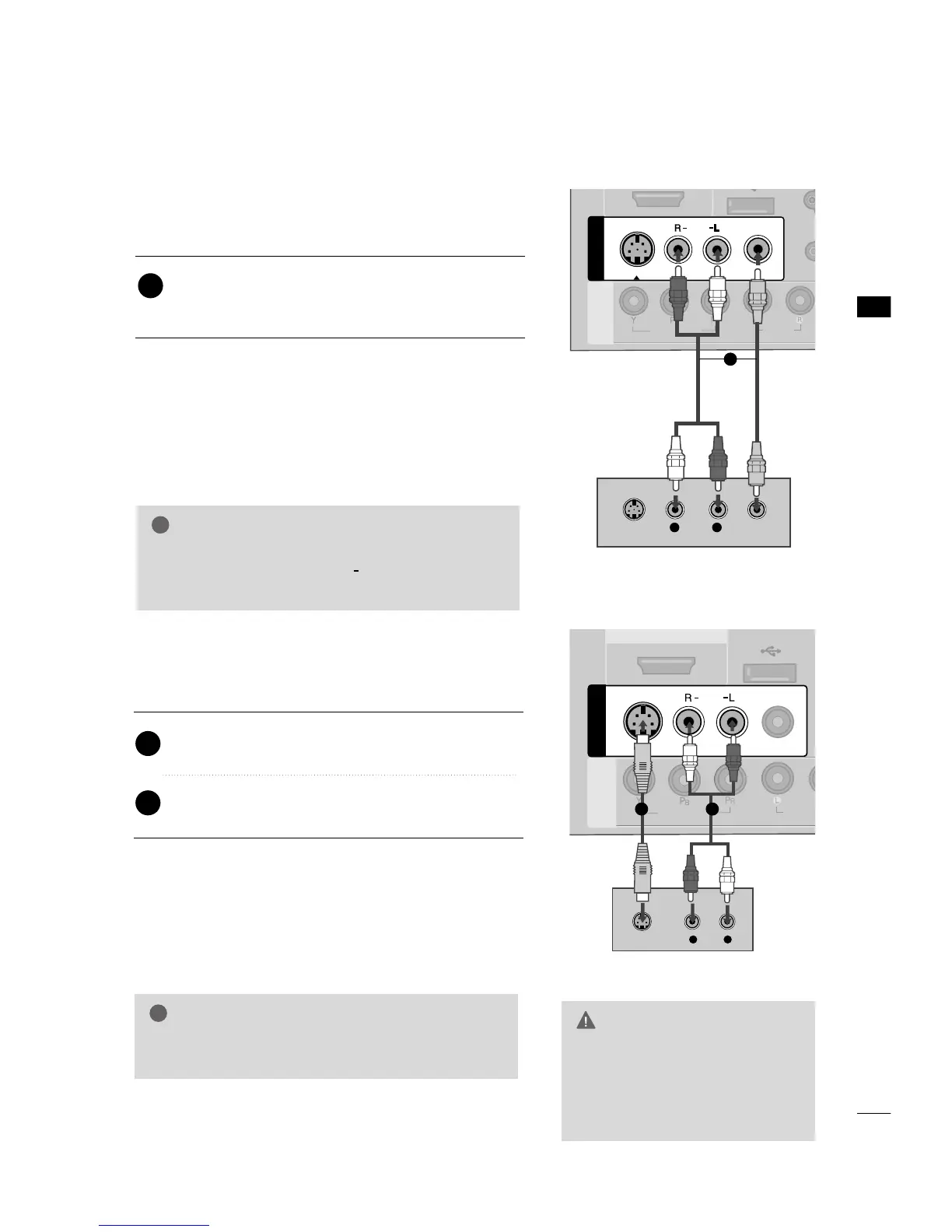

Composite (RCA) Connection
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
■
Select the
AAVV11
input source on the TV using the
IINNPPUUTT
button on the remote control.
■
If connected to
AAVV IINN22
, select
AAVV22
input source on the TV.
1
2. How to use
■
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
■
Select the
AAVV11
input source on the TV using the
IINNPPUUTT
button on the remote control.
GG
If you have a mono VCR, connect the audio cable
from the VCR to the
AAUUDDIIOO LL((MMOONNOO))
jack of
the TV.
NOTE
!
ANTENNA IN
M.P.I.
L R
S-VIDEO VIDEO
VIDEO
MONO
( )
AUDIO
R
AV IN 1
AV IN 1
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
( )
1
S-Video Connection
Connect the S-VIDEO output of the VCR to the
SS --VVIIDDEEOO
input on the TV.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the TV.
1. How to connect
2
1
( )
( )
( )
L
R
S-VIDEO
AUDIO
HDMI/DVI IN
SERVUCE ONLY
VIDEO
MONO
( )
AUDIO
AV IN 1
AV IN 1
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
1 2
GG
Do not connect to both Video
and S-Video at the same time. In
the event that you connect both
Video and the S-Video cables,
only the S-Video will work.
CAUTION
GG
S-Video provides better quality than composite. Use
it when available.
NOTE
!
