LG 37LC7D - Page 14

- 14 -
7. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) Download
This is the function that enables “Plug and Play".
7-1. HDMI EDID Data Input
(1) Required Test Equipment
1) PC, Jig for adjusting DDC. (PC serial to D-sub
Connection equipment)
2) S/W for writing DDC(EDID data write & read)
3) D-Sub cable
4) Jig for HDMI Cable connection
(2) Preparation for Adjustments &
Setting of Device

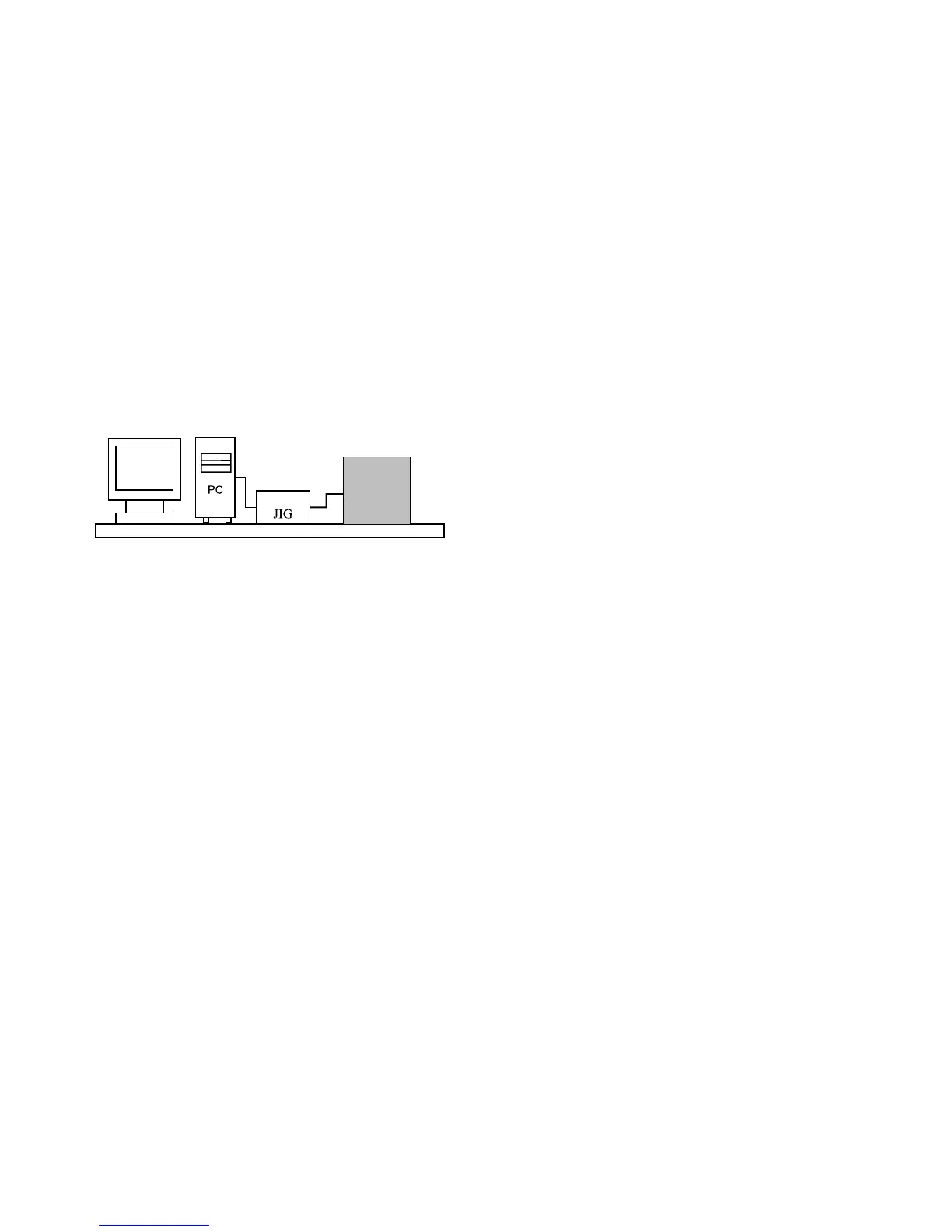

1) Set devices as below and turn on the PC and JIG.
2) Open S/W for writing DDC (EDID data write & read).
(operated in DOS mode)
7-2. EDID DATA for LA73E
:EDID for HDMI-1 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
:EDID for HDMI-2 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
:EDID for RGB-PC
EDID Block 0 table =
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 | 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 | 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 | 40 80 37 00 C4 8E 21 00 00 1C 00 00 00 FD 00 38
60 | 4B 1F 3C 09 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 98
0 | 02 03 16 F1 46 84 05 03 02 20 22 23 15 07 50 66
10 | 03 0C 00 10 00 80 01 1D 00 72 51 D0 1E 20 6E 28
20 | 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
30 | 58 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A 20 E0
40 | 2D 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A D0 8A
50 | 20 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18 00 00
60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 25
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 | 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 | 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28
40 | 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
50 | 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 4C
60 | 47 20 54 56 0A 20 20 20 20 20 20 20 00 00 00 FD
70 | 00 38 4B 1F 3C 09 00 0A 20 20 20 20 20 20 01 66
0 | 02 03 16 F1 46 84 05 03 02 20 22 23 15 07 50 66
10 | 03 0C 00 20 00 80 8C 0A D0 8A 20 E0 2D 10 10 3E
20 | 96 00 C4 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10
30 | 10 3E 96 00 13 8E 21 00 00 18 00 00 00 00 00 00
40 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 | 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 B3
0 | 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 | 00 11 01 03 68 73 41 96 0A CF 30 A3 57 4C B0 23
20 | 09 50 4E A1 08 00 01 01 01 01 01 01 01 01 01 01
30 | 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 | 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 | 40 80 37 00 C4 8E 21 00 00 1C 00 00 00 FD 00 38
60 | 4B 1F 3C 09 00 0A 20 20 20 20 20 20 00 00 00 FC
70 | 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 D0
LCD TV SET
(or Digital Board)
