LG 42LB2DE - Page 13

INTRODUCTION
11
HDMI IN
OPTICAL
RS-232C IN
(CONTROL & SERVICE)
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)
2
1 (DVI)
COMPONENT IN
VIDEO AUDIO
VIDEO AUDIO
( )
S-VIDEO
AV IN 1
AV OUT
ANTENNA
IN
REMOTE
CONTROL IN
S-VIDEO
AV IN 2
AC IN
VIDEO AUDIO
L/MONO R
DIGITAL AUDIO
OUT

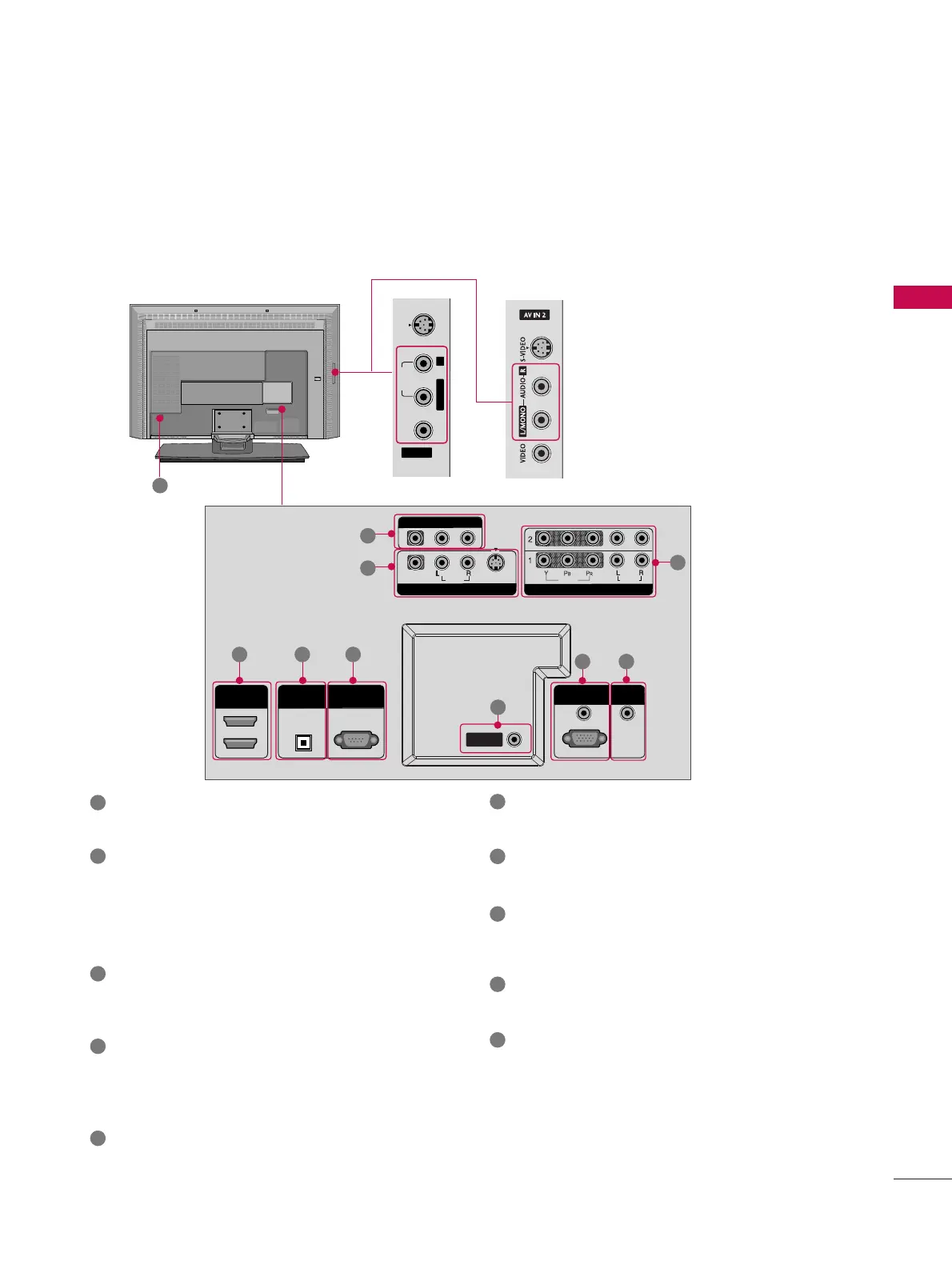

Back Connection Panel
AUDIO Input
Connections are available for lis-
tening to stereo sound from an
external device.
VIDEO Input
Connects the video signal from a
video device.
10
This is the back panel of 42LC2DR/42LB2DE/47LB2DE.
■
Image shown may be somewhat different from your TV.
HDMI IN
OPTICALOPTICAL
RS-232C INRS-232C IN
(CONTROL & SERVICE)
RGB (PC/DTV)RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
2
1 (DVI)
COMPONENT IN
VIDEO AUDIO
VIDEO AUDIO
MONO
( )
S-VIDEO
AV IN 1
AV OUT
ANTENNAANTENNA
IN
REMOTEREMOTE
CONTROL IN
DIGITDIGITAL AUDIO
OUTOUT
1
2
4 5 6
7
8
3
9
AV OUT
Connect a second TV or monitor.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
COMPONENT IN
Connect a component video/audio device to
these jacks.
HDMI IN
Connect a HDMI signal.
Or DVI(VIDEO)signal to the this port with a
HDMI to DVI cable.
DIGITAL AUDIO OUT OPTICAL
Connect digital audio from various types of
equipment. Note: In standby mode, these ports
do not work.
RS-232C IN (CONTROL &SERVICE) PORT
Connect to the RS-232C port on a PC.
ANTENNA IN
Connect cable signals to this jack.
RGB/AUDIO IN
Connect the output from a set-top box or PC to
the appropriate input port.
Remote Control Port
Connect your wired remote control.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
6
7
8
9
10
2
3
4
5
42LC2DR 42/47LB2DE
