EXTERNAL EQUIPMENT SETUP
GG
If both S-VIDEO and VIDEO sockets have been conneced to
the S-VHS VCR simultaneously, only the S-VIDEO can be
received.
NOTE
!

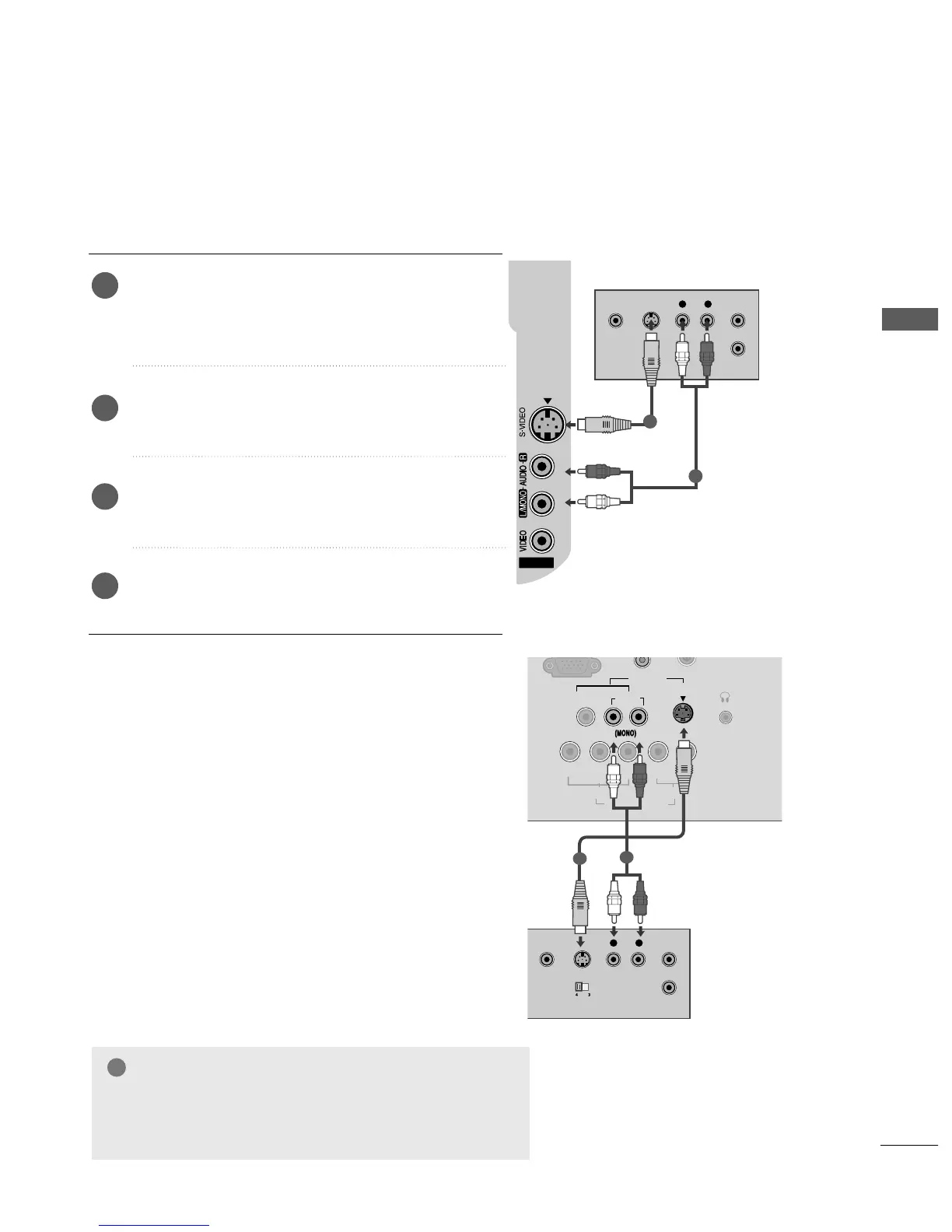

Connecting with a S-Video cable (Except 32PC5
***
)
Connect the S-VIDEO output of the VCR to the
SS--VVIIDDEEOO
input on the TV. The picture quality is
improved; compared to normal composite (RCA cable)
input.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the TV.
Insert a video tape into the VCR and press PLAY on
the VCR. (Refer to the VCR owner’s manual.)
Select
AAVV22((
or
AAVV
(Only 22LG3***)
))
input source
using the
IINNPPUUTT
button on the remote control.
2
3
4
1
L/MONO
R
AUDIO
VIDEO
VIDEO
L
R
AUDIO
