PREPARATION
7

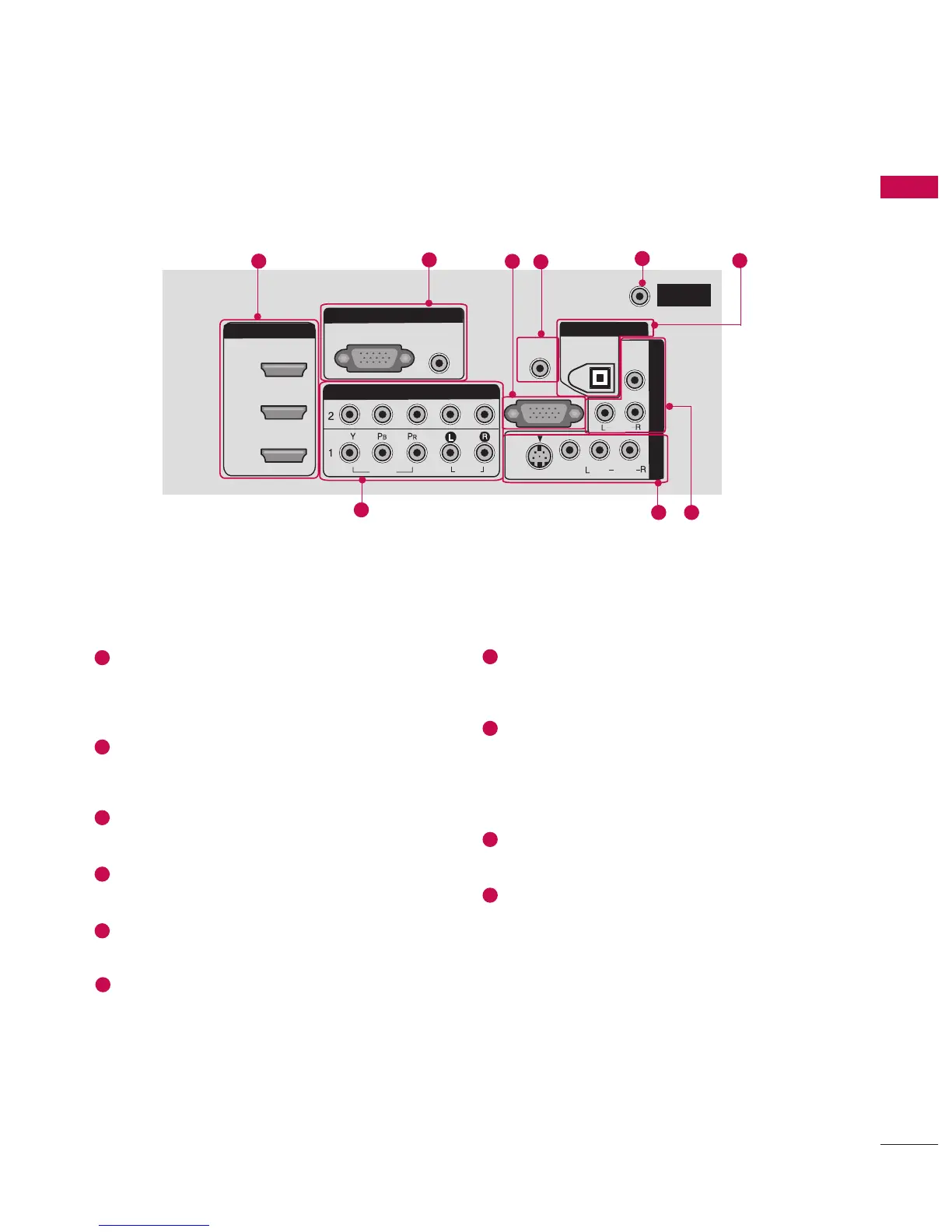

HDMI/DVI IN
Connect a HDMI signal.
Or DVI(VIDEO) signal to the this port with a
HDMI to DVI cable.
RGB/AUDIO IN
Connect the output from a set top box or PC to
the appropriate input port.
RS-232C IN (CONTROL &SERVICE) PORT
Connect to the RS-232C port on a PC.
Remote Control Port
Connect your wired remote control.
ANTENNA IN
Connect antenna signals to this jack.
DIGITAL AUDIO OUT
Connect digital audio from various types of
equipment. Note: In standby mode, these ports
do not work.
COMPONENT IN
Connect a component video/audio device to
these jacks.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
AV OUT
Connect a second TV or monitor.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
1
6
7
8
9
10
2
3
4
5
HDMI/DVI INHDMI/DVI IN
2
1
COMPONENT INCOMPONENT IN
VIDEOVIDEO AUDIOAUDIO
RGB INRGB IN
RGB (PC) RGB (PC)
AUDIO AUDIO
(RGB/DVI)(RGB/DVI)
AV IN 1AV IN
1
VIDEOVIDEO
S-VID
EO
S-
VIDEO
AUDIOAUDIO
MONO
( )
RS-232C INRS-232C IN
(CONTROL & SERVICE)(CONTROL & SERVICE)
AV
OUT
AV OUT
REMOTEREMOTE
CONTROL INCONTROL IN
DIGITAL AUDIO DIGITAL AUDIO OUTOUT
OPTICALPTICAL
VIDEOVIDEO
AUDIO
ANTENNA
IN
HDMI/DVI IN
COMPONENT IN
VIDEO AUDIO
RGB IN
RGB (PC)
AUDIO
(RGB/DVI)
AV IN
1
VIDEO
S-VIDEO
AUDIO
( )
RS-232C IN
(CONTROL & SERVICE)
AV OUT
REMOTE
CONTROL IN
DIGITAL
AUDIO OUT
OPTICAL
VIDEO
ANTENNAANTENNA
ININ
3
1
2
4
7
8
3
5
6
9
