Method B: DVI to HDMI Connection
HDMI
IN
1
(ARC)
IN
3
(MHL)
IN
2
IN
1
(ARC)
IN
3
(MHL)
IN
2
AUDIO OUT
DVI OUT
PC-AUDIO IN
COMPONENT IN / AV IN
P
B
P
R
VIDE
O
/
Y
L/MONO
AUDIO R
(*Not Provided)
PC
(*Not Provided)
WHITE RED
Choose any HDMI input port to connect.
It does not matter which port you use.
Connecting to an Audio System
You may use an optional external audio system instead of the built-in speaker.

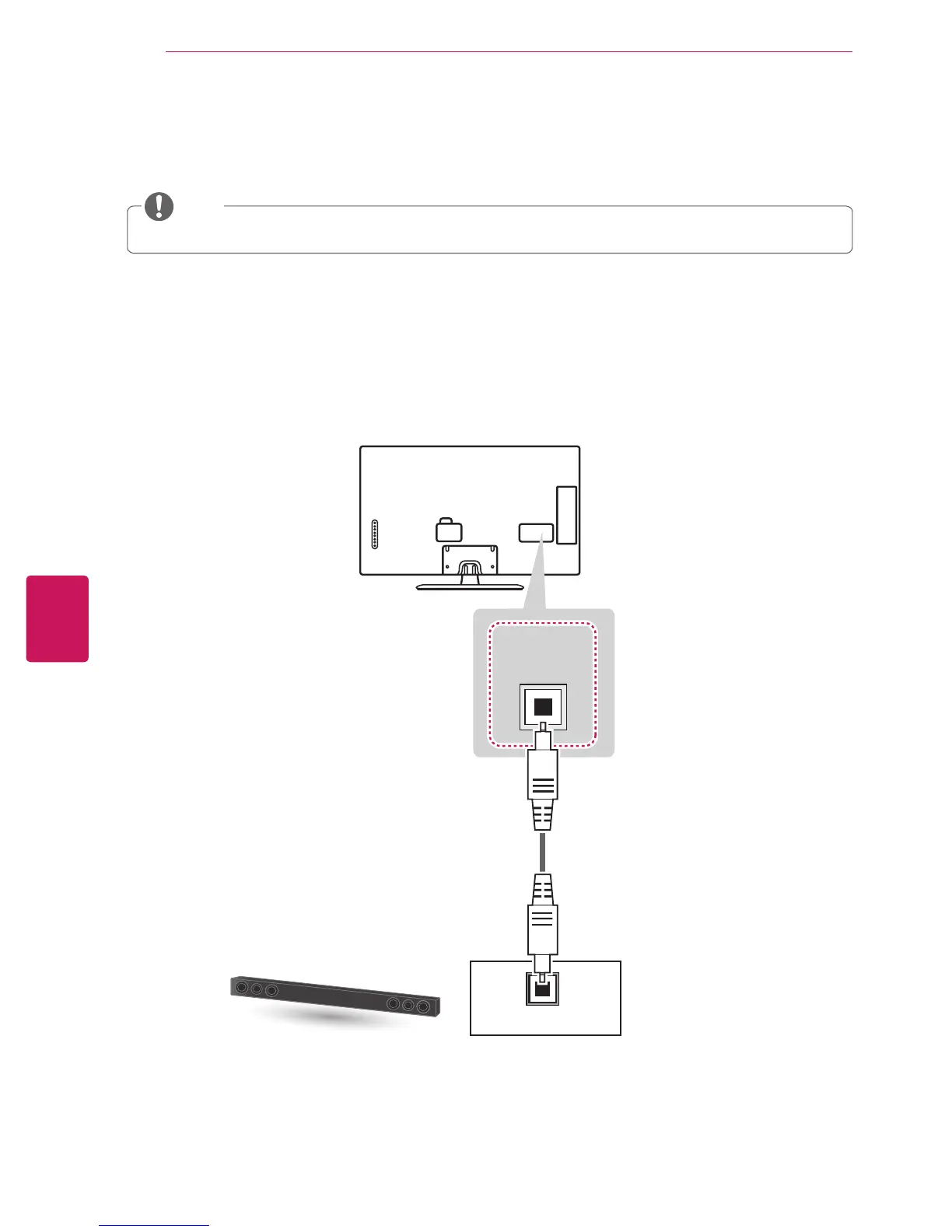

Digital Optical Audio Connection
Transmits a digital audio signal from the TV to an external device. Connect the external device and
the TV with the optical audio cable as shown in the following illustration.
