INSTRUCCIONES DE AJUSTE
1. Application Range
This spec sheet is applied to all of the PP91A/B chassis.
2. Specification
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25±5°
C of temperature
and 65±10% of relative
humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100~240V,
50/60Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15°
- In case
of keeping module is
in the circumstance
of 0°
C,
it should be placed
in the circumstance of
above 15°
C for
2 hours
- In case of keeping module is in the circumstance of below
-20°
C, it should be
placed in the ci
rcumstance of above
15°C for 3 hours,.

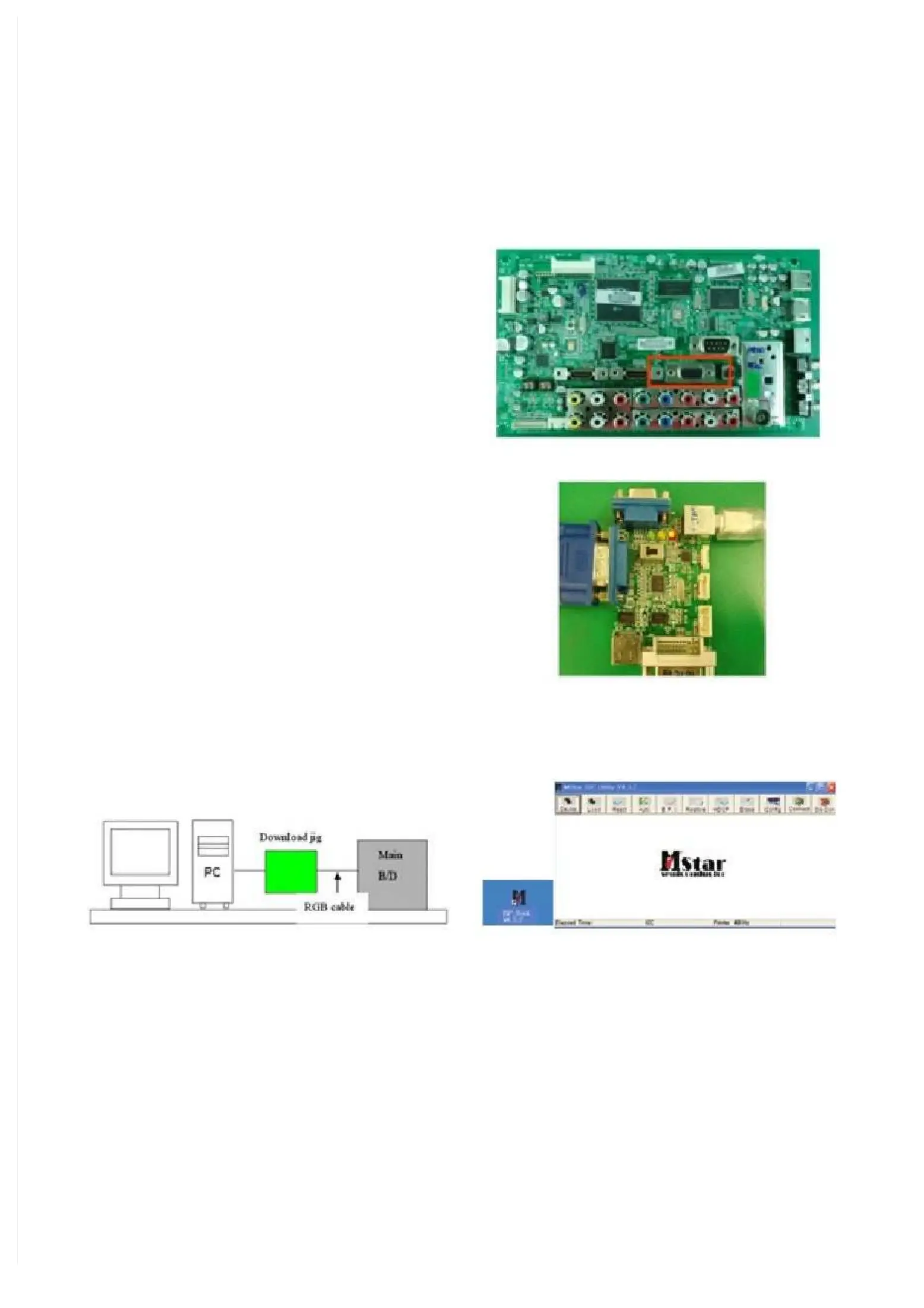

3. S/W Program Download
3-1. Profile
This is for downloading the s/w to the flash memory of the
IC603
3-2. Equipment
(1) PC
(2) ISP_tool program
(3) Download jig
3-3. Connection
Structure
3-4. Connection Condition
(1) IC name and circuit number : Flash Memory and IC603
(2) Use voltage : 3.3V (5 pin)
(3) SCL : 15 pin
(4) SDA : 12 pin
(5) Tact time : about 2min and 30seconds
3-5. Download Method
(By using MSTAR JIG)
(1) Preliminary Steps
1) Connect the download jig to D-sub jack
2) Connect the PC to USB jack
(2) Download Steps
1) Execute ‘ISP Tool’ program in PC, then a main window will
be opened
Double click
