LG 43SM5KD Service Manual

Standard Repair Process Detail Technical Manual

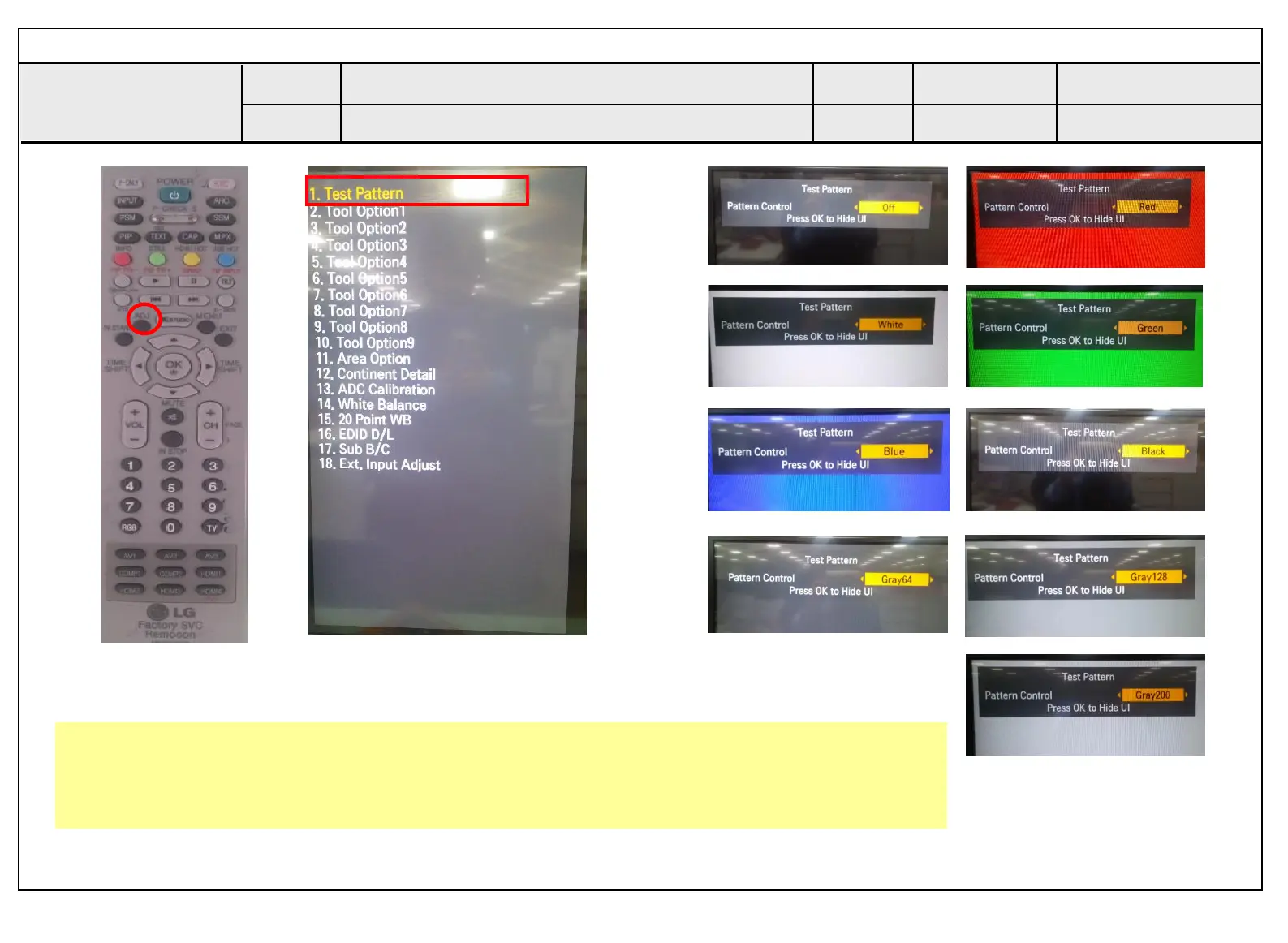

Adjustment Test pattern - ADJ Key
A. Video error_Color error
You can view 8 types of patterns using the ADJ Key
Checking item : 1. Defective pixel 2. Residual image 3. MODULE error (ADD-BAR,SCAN BAR..)
4.Video error (Classification of MODULE or Main-B/D)
A9
Established
date
Revised
date
Error
symptom
Content
A9
Monitor Signage
Copyright ⓒ 2017 LG Electronics Inc. All rights reserved.
Only training and service purposes.
