LG 43UF69 Series Service Manual

- 34 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
200
400
540
521
800
401
121
120
500
820
530
A10
A22
Stand screw
570
LV1
900
910
900
910
911
901
902

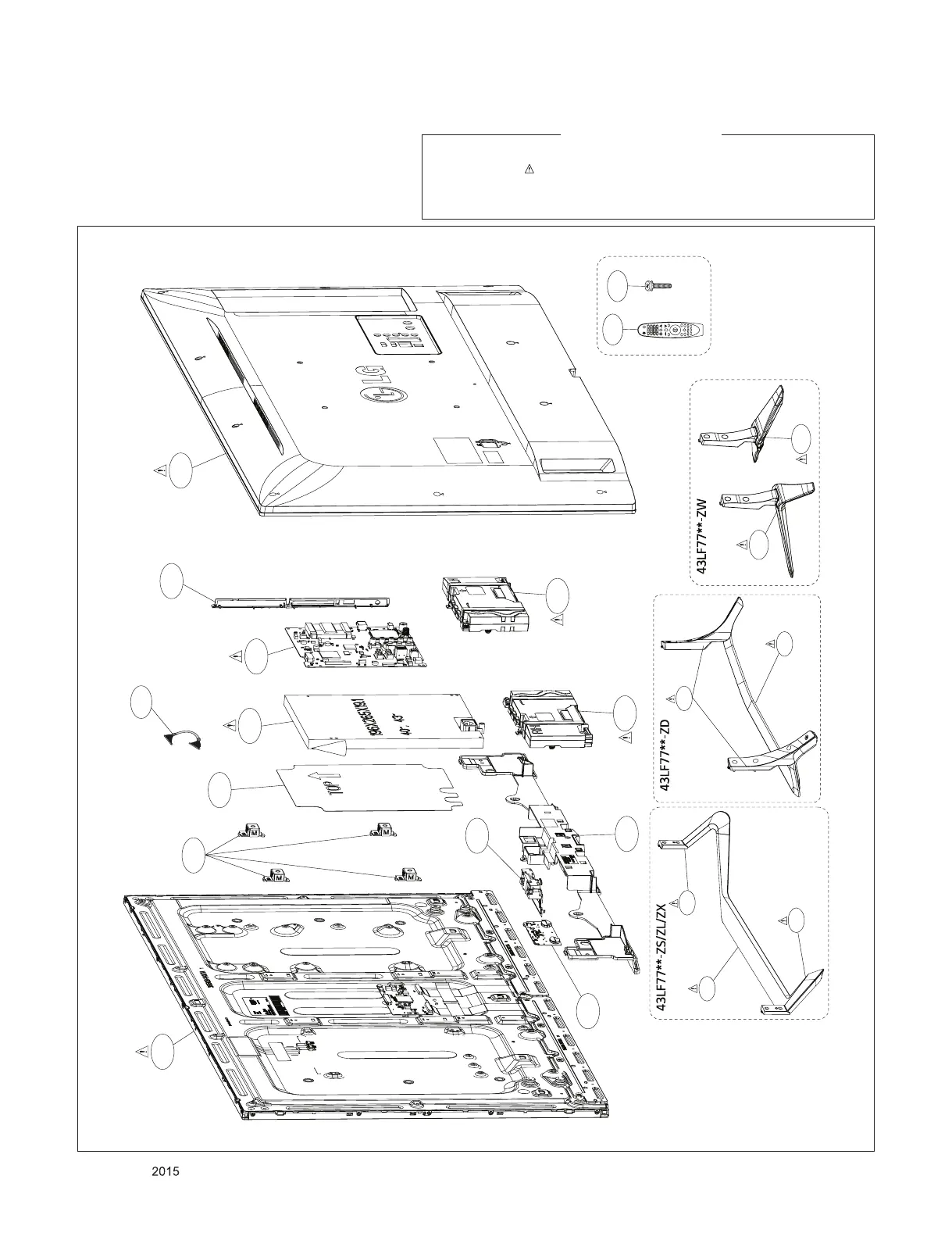

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE

LG 43UF69 Series Specifications

General

Brand	LG
Model	43UF69 Series
Category	LED TV
Language	English
