5.1.5.2. OLED White balance table
(1) Cool Mode
1) Purpose : Especially B-gain fix adjust leads to the
luminance enhancement. Adjust the color
temperature to reduce the deviation of the
module color temperature.
2) Principle : To adjust the white balance without the
saturation, Adjust the B gain more than 192 (
If R gain or G gain is more than 255 , G gain
can adjust less than 192 ) and change the
others ( R/G Gain ).
3) Adjustment mode : mode – Cool
(2) Medium
1) Purpose : Adjust the color temperature to reduce the
deviation of the module color temperature.
2) Principle : To adjust the white balance without the
saturation, Fix the B gain to 192 (default data)
and decrease the others.
3) Adjustment mode : mode – Medium
(3) Warm
1) Purpose : Adjust the color temperature to reduce the
deviation of the module color temperature.
2) Principle : To adjust the white balance without the
saturation, Fix the W gain to 192 (default
data) and decrease the others.
3) Adjustment mode : mode – Warm
(4) THX(Warm)
1) Purpose : Adjust the color temperature to reduce the
deviation of the module color temperature.
2) Principle : To adjust the white balance without the
saturation, Fix the W gain to 192 (default
data) and decrease the others.
3) Adjustment mode : mode – Warm
4) Auto White balance 4 point
5) Adjust 100 IRE White Balance
6) Adjust Gamam 2.2 each IRE (60, 40, 20). Using max
luminance
7) Complete 4 point gamma, W/B.

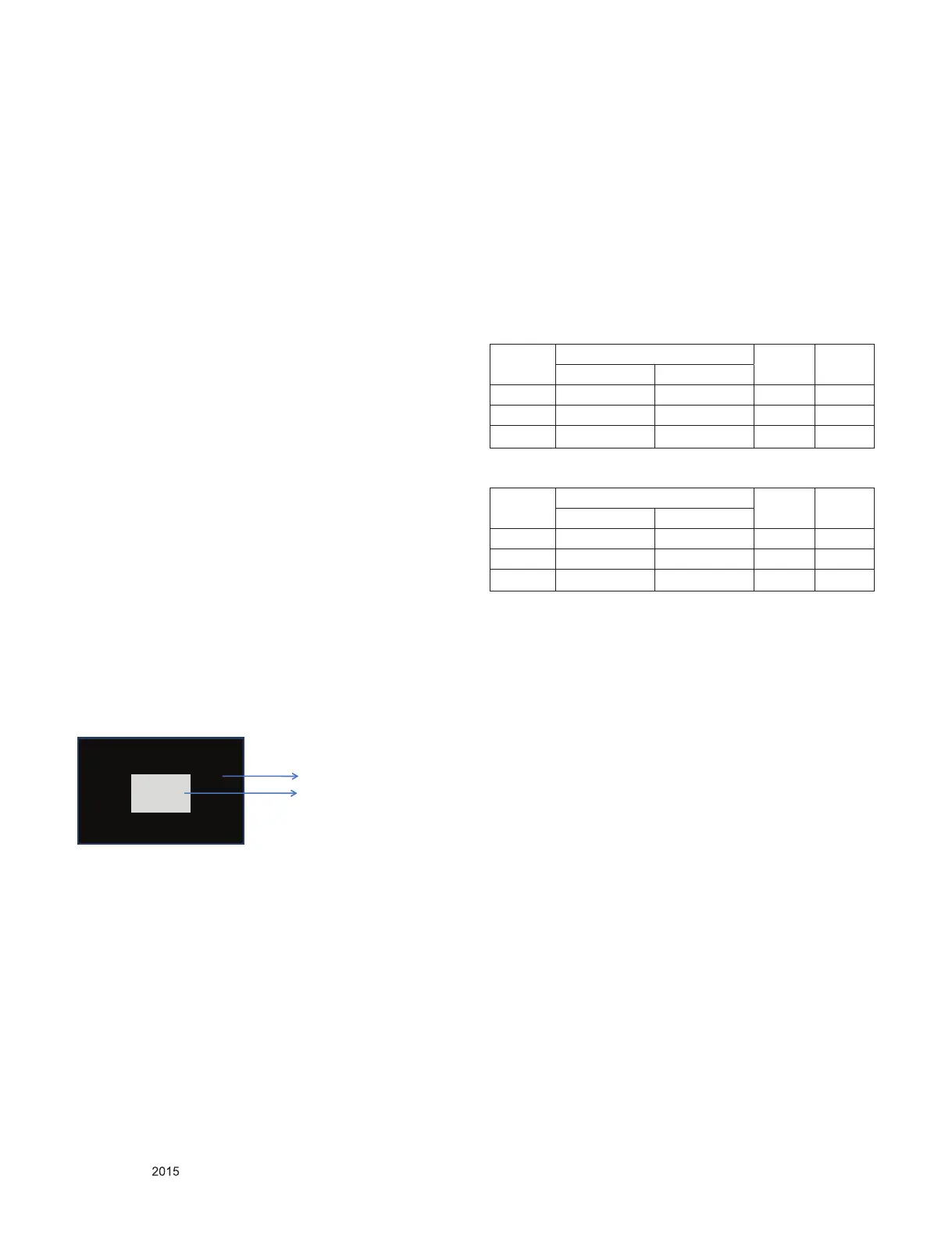

Picture is H 1/3, V 1/3
fixed Center Window size
Outer Black Picture do not need change Contrast /
Brightness
Center Level can change Contrast / Bright
Window pattern of Center 0~255 level
5.1.6. Reference
(White Balance Adj. coordinate and color
temperature)
▪ Luminance: 204 Gray, 80IRE
▪ Standard color coordinate and temperature using
5.1.7. Reference
(White Balance Adj. coordinate and color
temperature)
▪ Luminance: 204 Gray,
▪ Standard color coordinate and temperature using CS-1000 (over
26 inch)
▪ Standard color coordinate and temperature using
CA-210(CH-17)
5.2. Tool Option setting & Inspection per
countries
5.2.1. Overview
(1) Tool option selection is only done for models in Non-USA
North America due to rating
(2) Applied model: LA4BX Chassis applied to CANADA and
MEXICO
5.2.2. Country Group selection
(1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu
(2) Depending on destination, select KR or US, then on the
lower Country option, select US, CA, MX. Selection is
done using +, - KEY
5.2.3. Tool Option Inspection
(1) Press Adj. key on the Adj. R/C, and then check Tool option.
* Tool option can be reconstructed by Software
$NCEM4)$G
9KPFQY5K\G G
T +4'4)$

T +4'4)$

+4'4)$G
+4'4)$G
Mode
Coordinate
Temp ∆uv
x y
Cool 0.277 0.278 11,000K -0.0030
Medium 0.286 0.289 9300K 0.0000
Warm 0.313 0.329 6500K +0.0030
Mode
Coordinate
Temp ∆uv
x y
Cool 0.277±0.002 0.278±0.002 11000K -0.0030
Medium 0.286±0.002 0.289±0.002 9300K 0.0000
Warm 0.313±0.002 0.329±0.002 6500K +0.0030
