LG 55LX9500 Service Manual

- 8 -
LGE Internal Use OnlyCopyright © 2010 LG Electronics. Inc. All rights reserved.
Only for training and service purposes

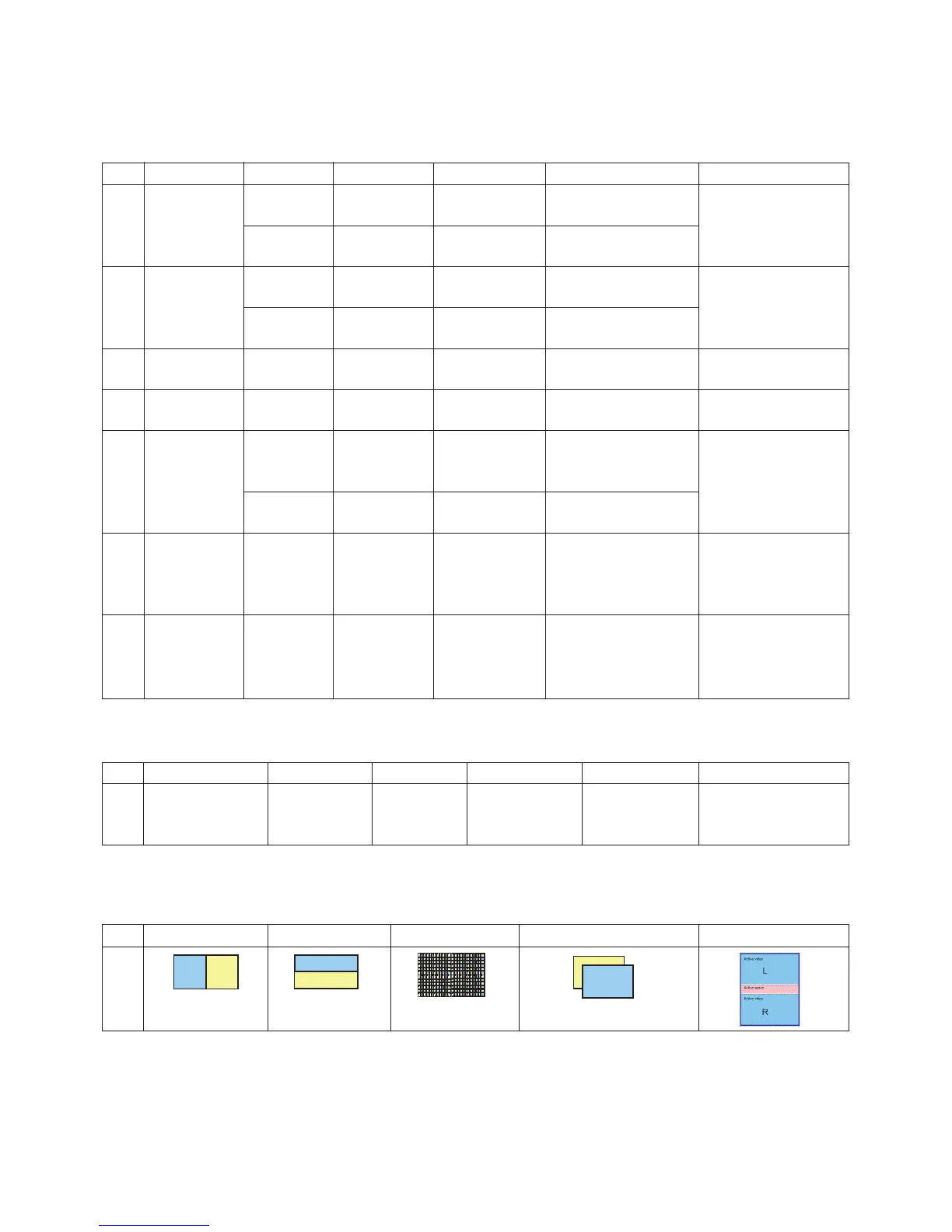

9. 3D Mode - HDMI & USB
(1) HDMI Input (HDMI V1.4 with 3D)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1 1920*1080 33.75 30.000 74.25 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
No. Side by Side Top & Bottom Checkerboard Single Frame Sequential Frame Packing
1
(2) USB Input
(3) 3D Input mode
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remark
1 1280*720 45.00 60.00 74.25 Side by Side HDTV 720P
Top & Bottom
89.9/90 59.94/60 148.35 HDMI(V1.4 with 3D)
Frame Packing
2 1280*720 37.5 50 74.25 Side by Side HDTV 720P
Top & Bottom
75 50 148.5 HDMI(V1.4 with 3D)
Frame Packing
3 1920*1080 33.75 60 74.25 Side by Side HDTV 1080I
Top & Bottom
4 1920*1080 28.125 50 74.25 Side by Side HDTV 1080I
Top & Bottom
5 1920*1080 27 24 74.25 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
53.95/54 23.98/24 148.35/148.5 HDMI(V1.4 with 3D)
Frame Packing
6 1920*1080 67.50 60 148.50 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
Single Frame Sequential
7 1920*1080 56.250 50 148.5 Side by Side HDTV 1080P
Top & Bottom
Checkerboard
Single Frame Sequential
RL
L
