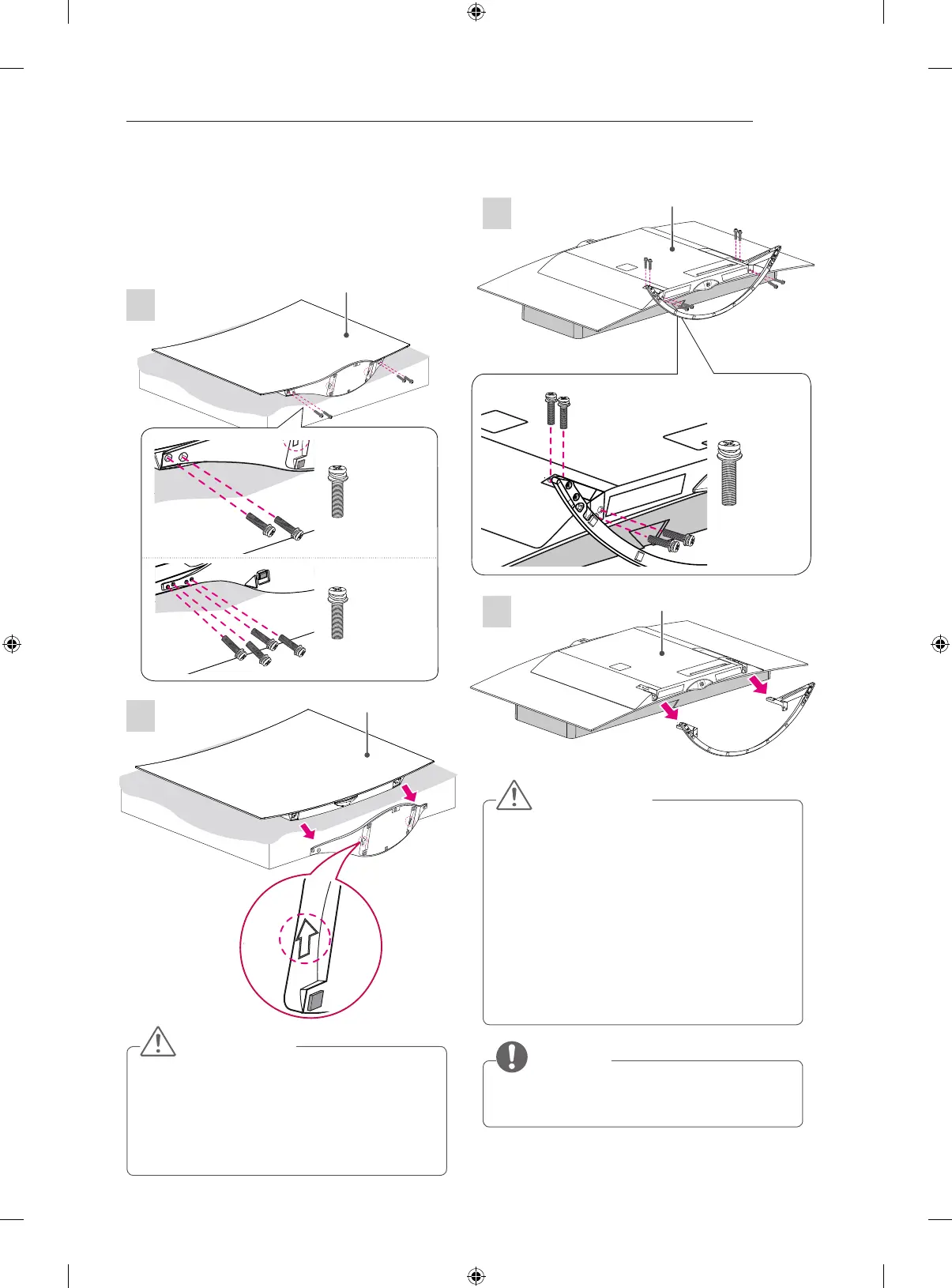

SETTING UP THE TV
(Only EC97**)
1
8 EA
M4 x L20
Back cover
2
Back cover
CAUTION
y When detaching the stand to the TV set,
place the screen(or back) facing down on a
cushioned table or flat surface to protect the
screen(or back) from scratches.
y Make sure that the screws are inserted cor-
rectly and fastened securely. (If they are not
fastened securely enough, the TV may tilt
forward after being installed.)
Do not use too much force and over tighten
the screws; otherwise screw may be dam-
aged and not tighten correctly.
NOTE
y When you assemble the stand again,
performing the stand detaching in reverse.
SETTING UP THE TV
Image shown may differ from your TV.
Detaching the stand
(Only EC93**, EC98**)
1
(Only EC93**)
4 EA
M4 x L20
(Only EC98**)
8EA
M4 x L20
Screen
2
Screen
CAUTION
y When detaching the stand, make sure to hold it
firmly while removing the screws to stop it from
falling.
y When you assemble the stand again, have the
arrows on the bottom of the stand base looking
toward same direction to screen.
