18 Room Air Conditioner
Maintenance and Service
3. Deluxe (Type 1):

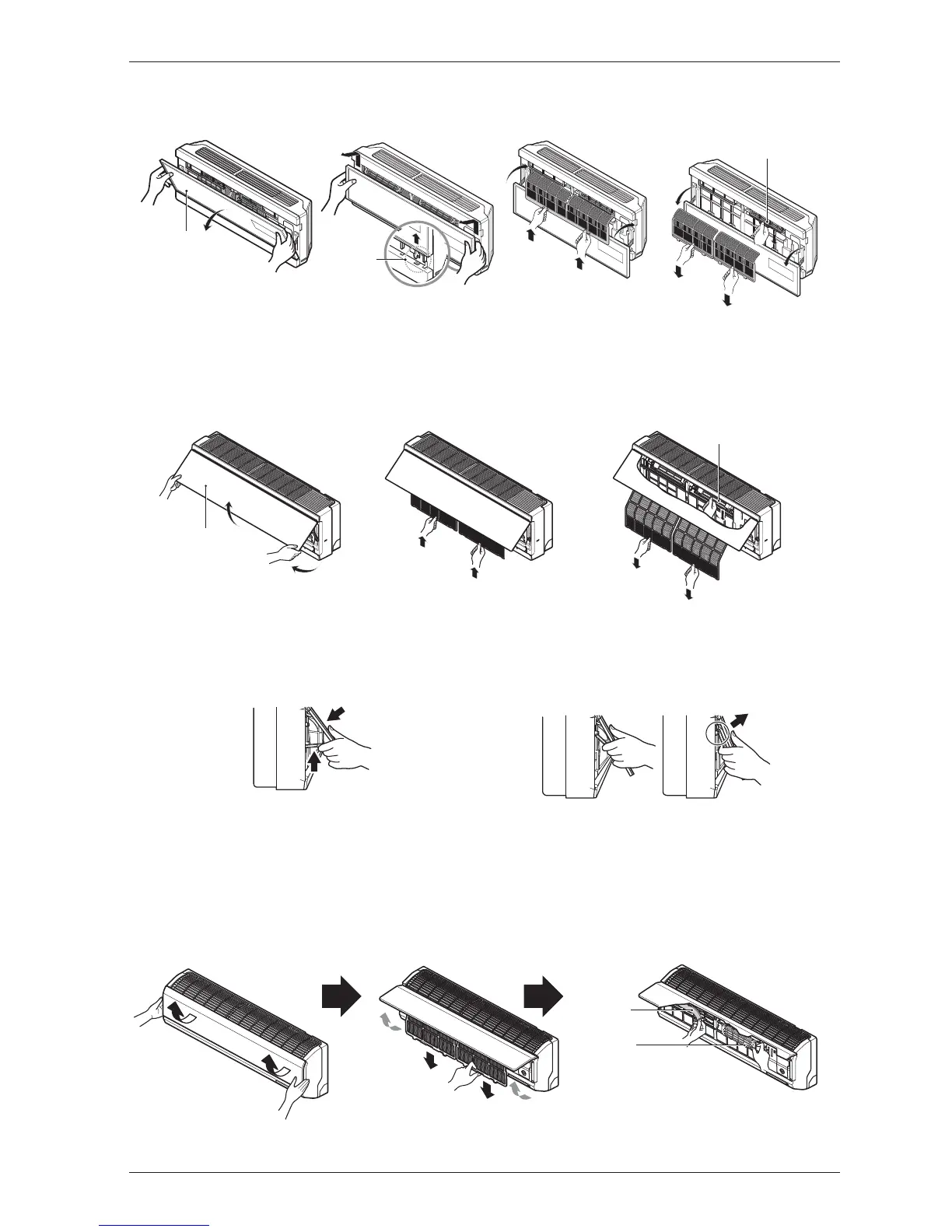

Open the upside of the panel and lift it up as shown. The hooks of the panel will come off. Remove the
air filters. Then pull out the plasma filter
4. Deluxe (Type 2):
Open the front panel as shown.
Then pull the filter tab slightly forward to remove the air filter.
After removing the air filter remove the plasma and deodorizer filter by slightly pulling forward.
After cleaning and drying well reinstall the filters in their original position.
5. Standard Split Type : Two different methods to open the front panel based on types of air
conditioner as below ;
Type 1: Open the front panel as shown.
Then pull the filter tab slightly forward to remove the air filter.
After removing the air filter remove the plasma and deodorizer filter by slightly pulling forward.
How to use the front panel
1. Front panel closing
Move the link upward and close the front panel.
2. Front panel removing
Raise the link up to hook hanger and remove
front panel forward.
