128 Multi type Air Conditioner
Disassembly of the parts

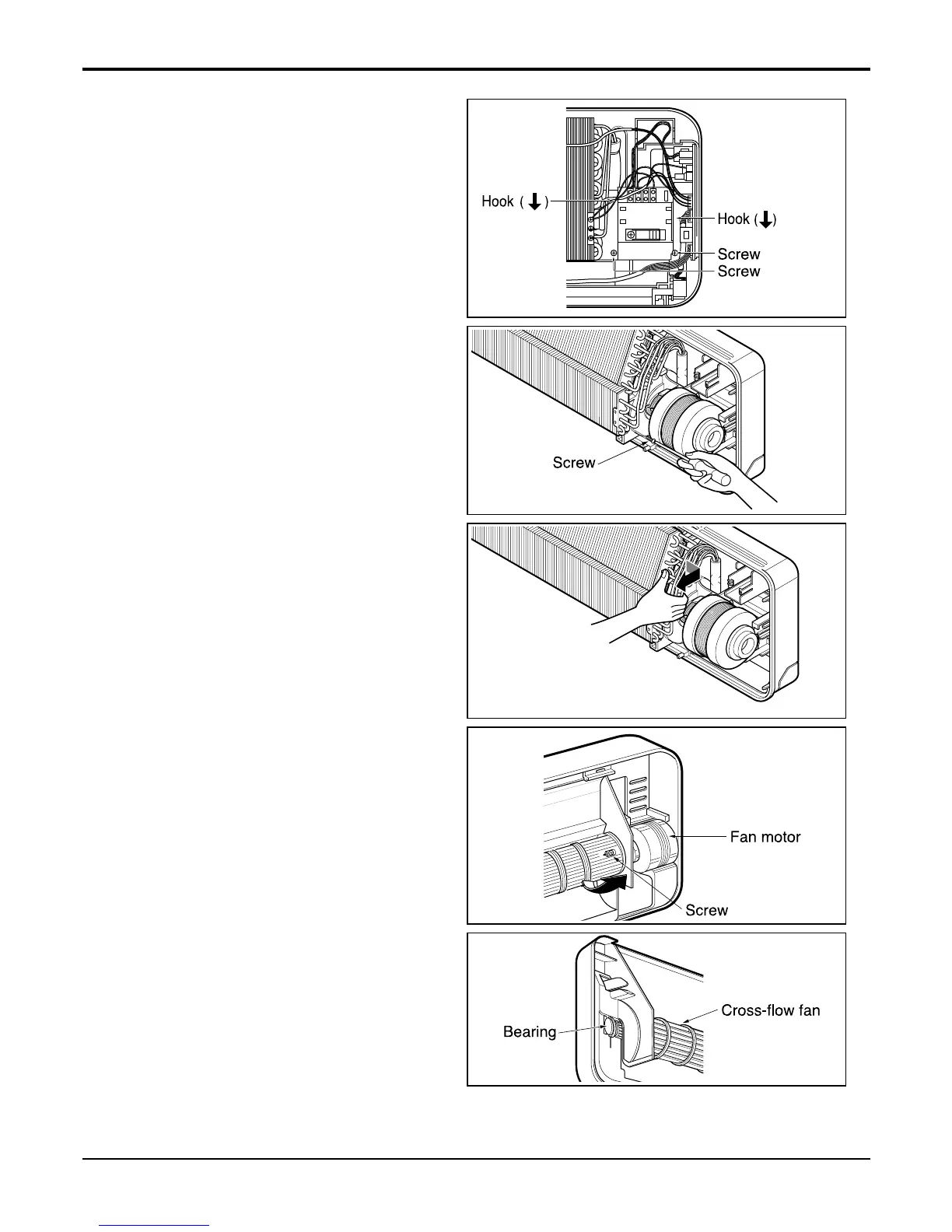

2) To remove the Control Box.
• Remove securing screws.
• Pull the control box out from the chassis care-
fully.
3) To remove the Discharge Grille.
• Pull the discharge grille out from the chassis
carefully.
4) To remove the Evaporator.
• Remove screws securing the evaporator and
the holder eva.
• Unhook the tab on the right inside of the chas-
sis at the same time, slightly pull the evapora-
tor toward you until the tab is clear of the slot.
5) To remove the Cross-Flow Fan
• Loosen the screw securing the cross-flow fan
to the fan motor (do not remove).
• Lift up the right side of the cross-flow fan and
the fan motor, separate the fan motor from the
cross-flow fan.
• Remove the left end of the cross-flow fan from
the self-aligning bearing.
