Service Manual 131
Disassembly of the parts
3. Art Cool Deluxe Type Indoor Unit(SZ,SU,S3)
CAUTION: Disconnect the unit from
power supply before making any
checks.
Be sure the power switch is set to
“OFF”.

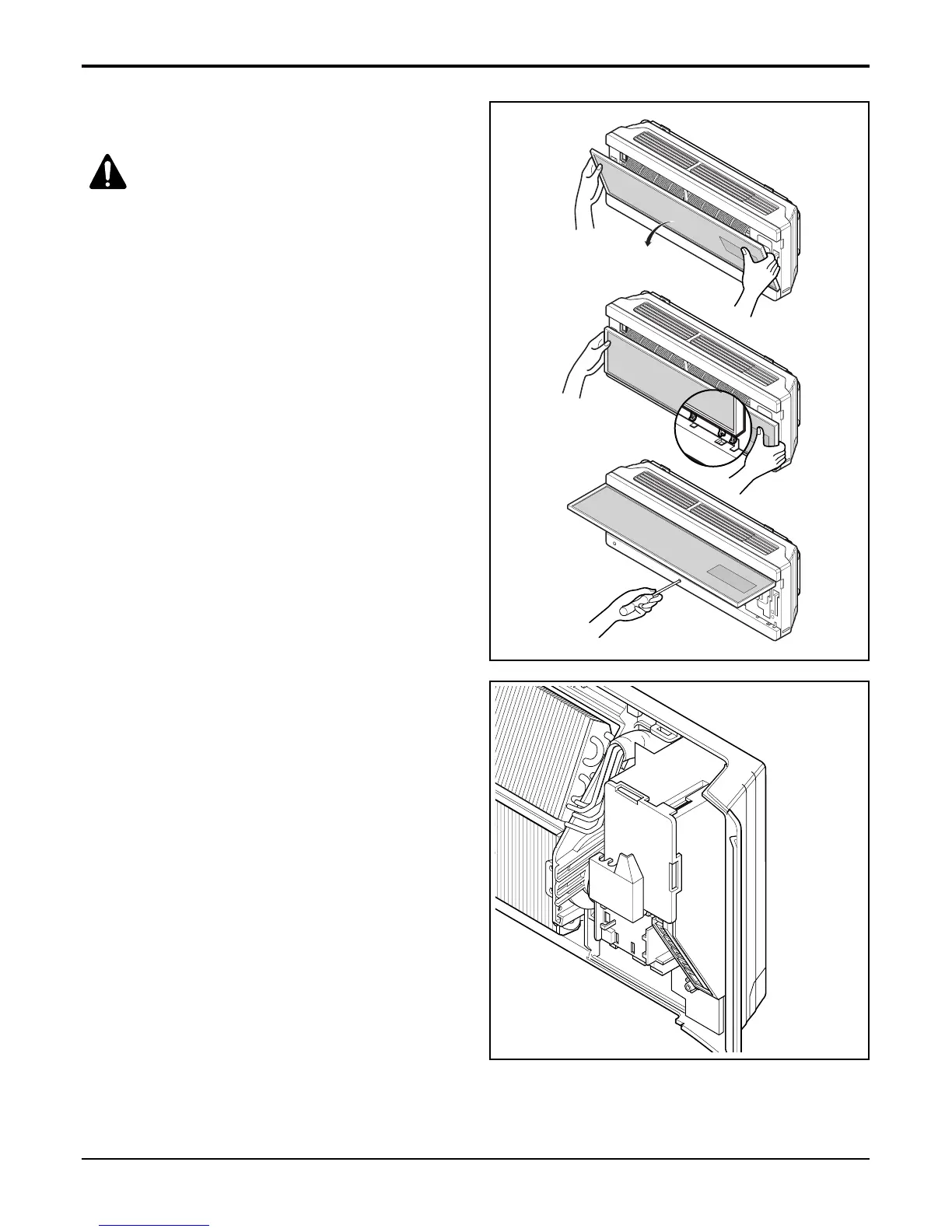

To remove the Grille from the Chassis.
• Hold up Inlet Grille Horizentally.
• To remove the Grille, pull the lower left and right
side of the grille toward you (slightly tilted) and lift it
straight upward.
• To seperate connecter assembly and than to
remove Inlet Grille assembly.
1) Before removing the control box, be sure to
take out the wire screwed at the other end.
To Next Page
