Service Manual 133

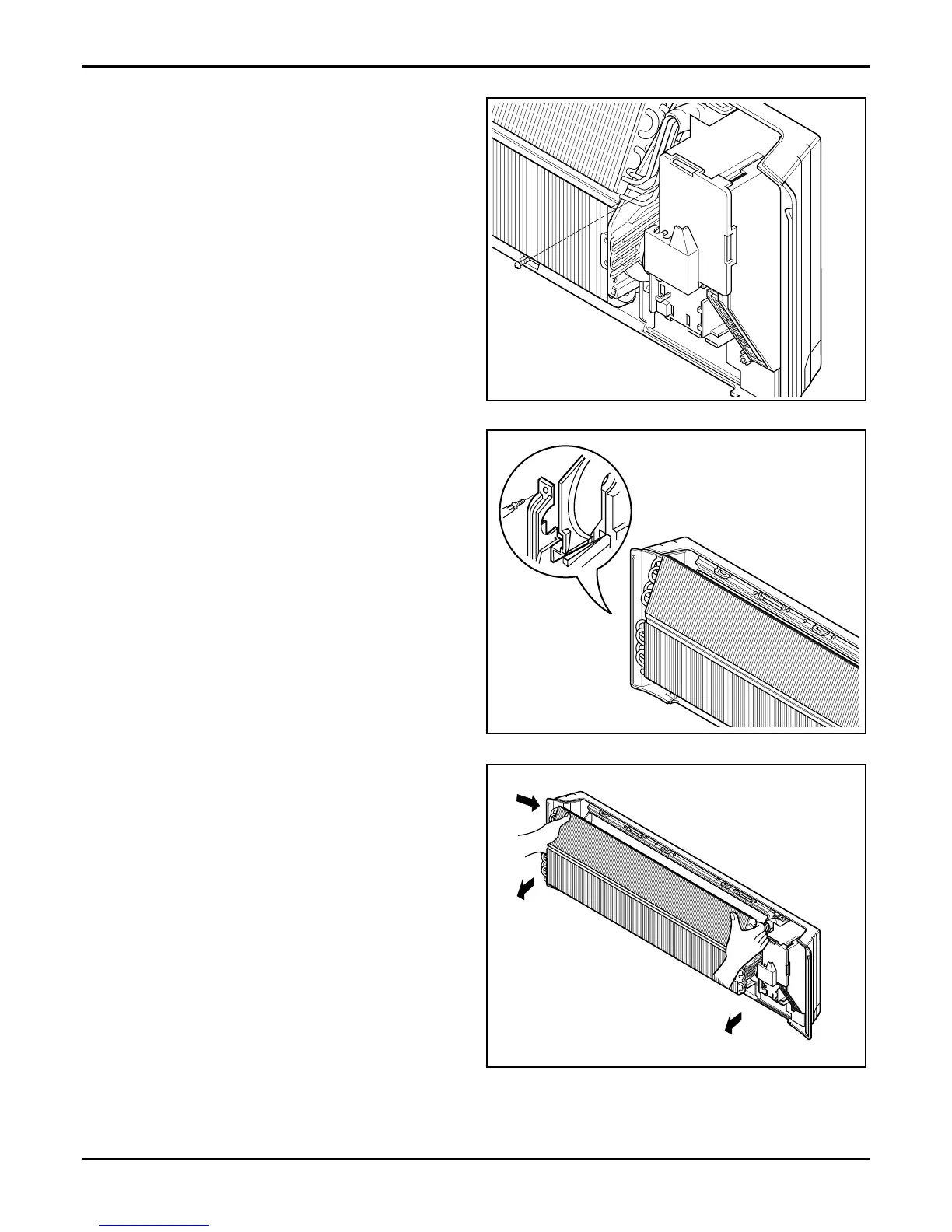

Disassembly of the parts
2) To remove the Control Box.
• Remove securing screws.
• Pull the control box out from the chassis careful-
ly.
3) To remove the Discharge Grille.
• Unhook the discharge grille and pull the dis-
charge grille out from the chassis carefully.
4) To remove the Evaporator.
• Remove 3 screws securing the evaporator(at the
left 2EA in the Eva Holder, at the right 1EA).
To Next Page
