Service Manual 73

Installation

ø8.5mm

GN/YL

20mm

ø7.5mm

GN/YL

20mm

The power cord connected to the outdoor unit

should be complied with the following specifica-

tions (Rubber insulation, type H05RN-F

approved by HAR or SAA).

The connecting cable connected to the indoor

and outdoor unit should be complied with the

following specifications (Rubber insulation, type

H07RN-F approved by HAR or SAA).

NORMAL CROSS-

SECTIONAL AREA

0.75mm

NORMAL CROSS-

SECTIONAL AREA

3.5mm

Air

Conditioner

Main power source

Circuit Breaker

Use a 30A circuit

breaker or time

delay fuse.

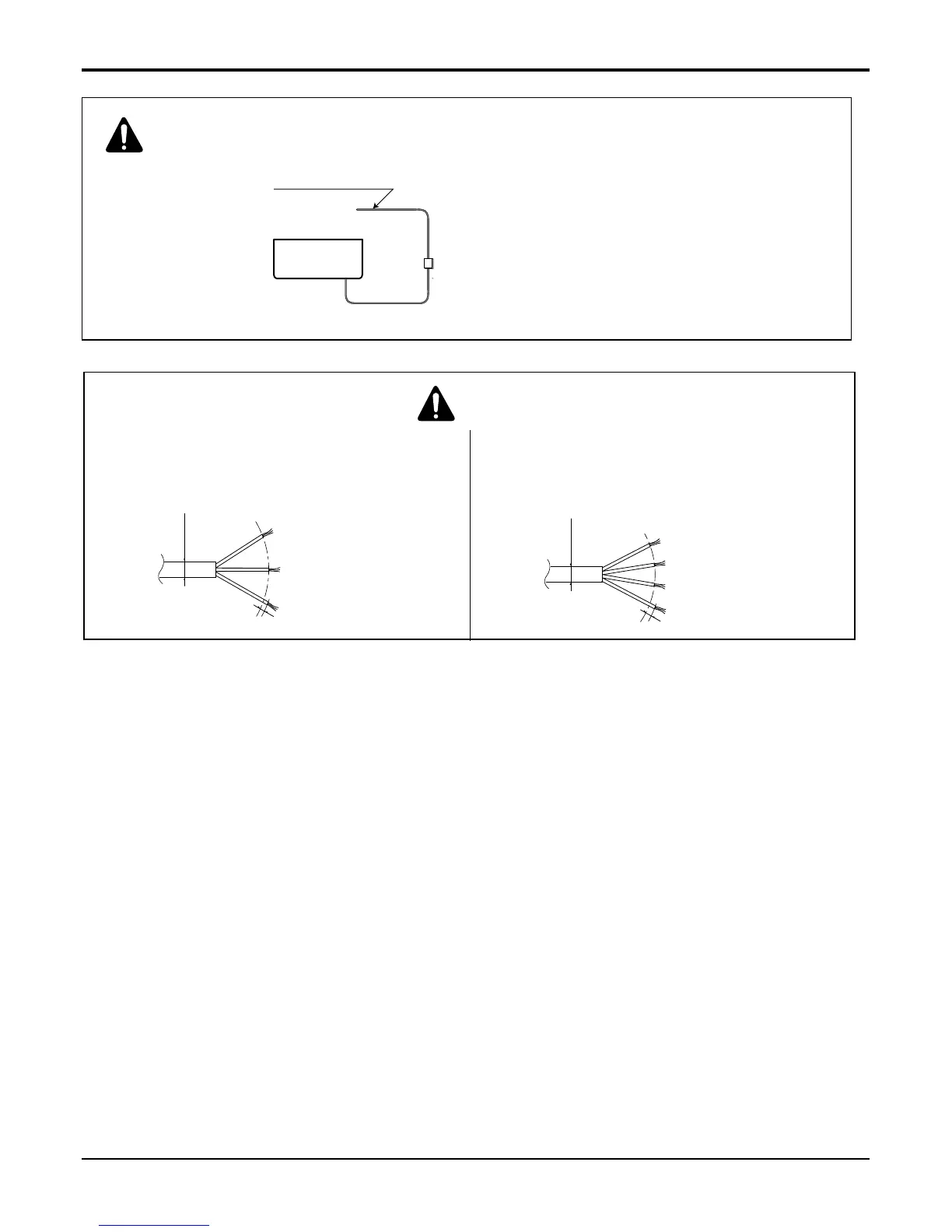

CAUTION: If a power plug is not to be used, provide a circuit breaker between

power source and the unit as shown below.

CAUTION
