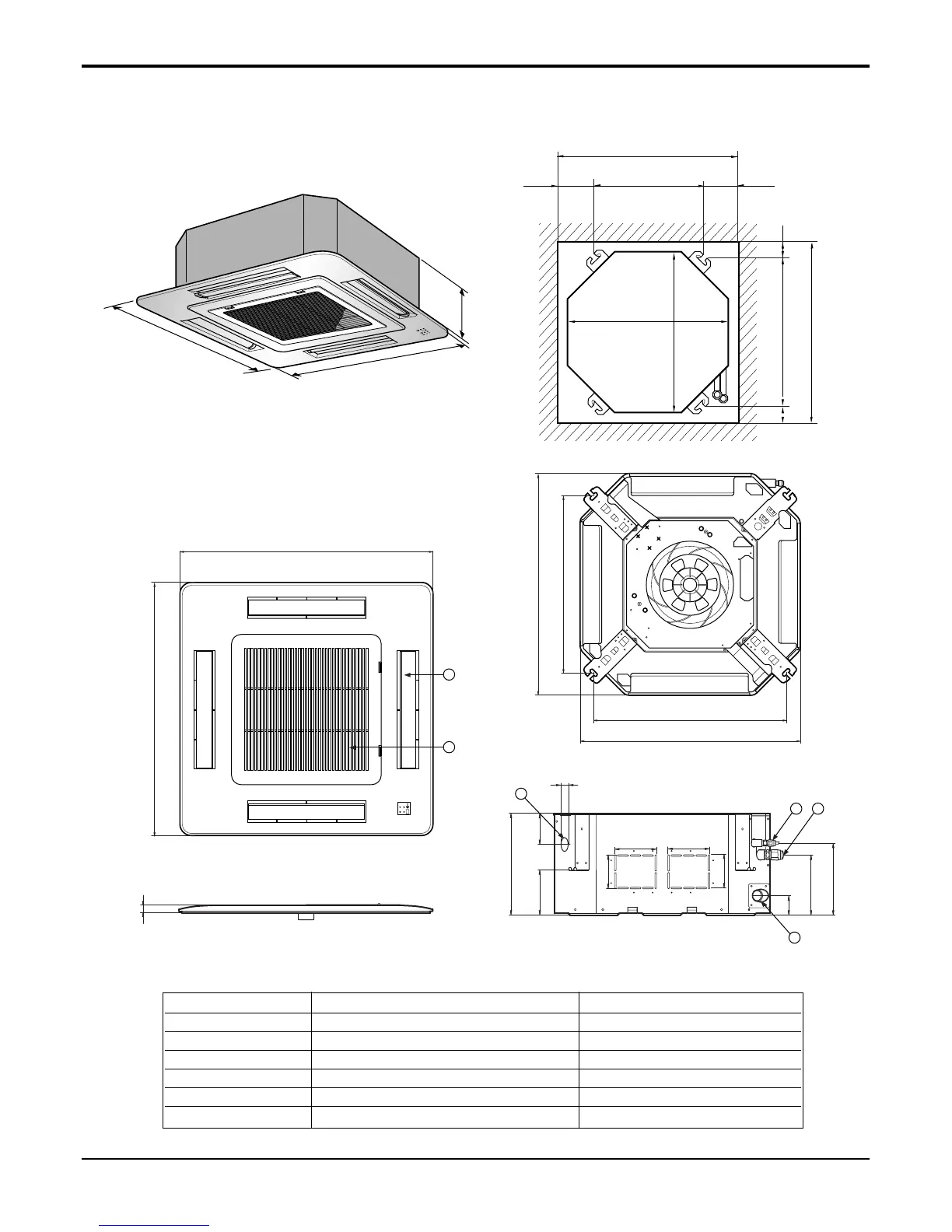

9. CST Type - TH (24K)
255
950
950
950
950
840 608
688
840
225
212
150
54
90 90
192 117
70
110 110
4
1
3
2
5
6
Unit:mm
840
840
806 (Hanging bolt)
2828
862 (Ceiling opening)
862 (Ceiling opening)
688(Hanging bolt)
87
87
30
(unit : mm)
Number Name Descripition
1 Liquid pipe connection ø6.35 flare
2 Gas pipe connection ø12.7 flare-24K, ø15.88 flare-30K
3 Drain pipe connection
4 Power supply connection
5 Air discharge grill
6 Air suction grill
Dimensions
