External Static Pressure and Air Flow

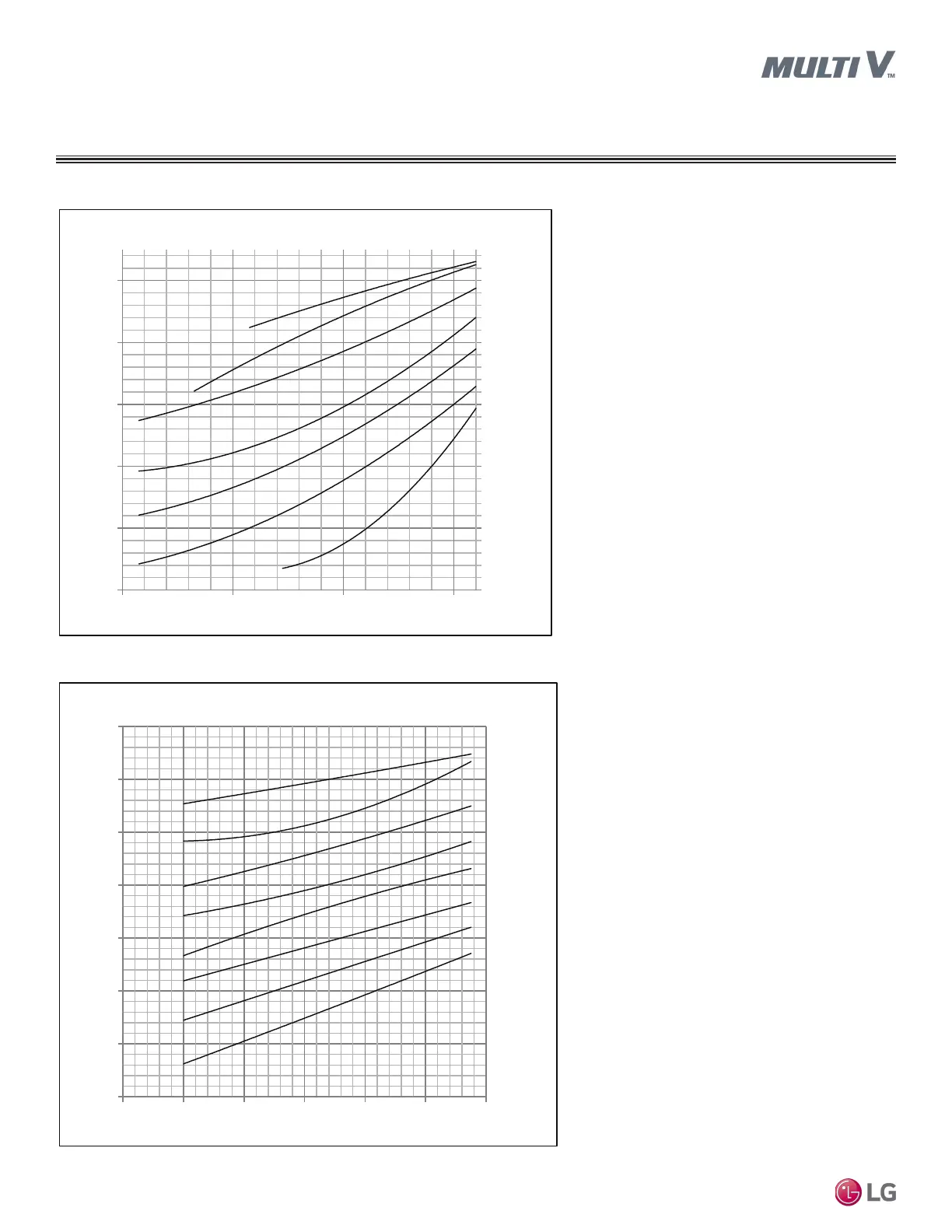

Figure 43: NJ Frame External Static Pressure and Air Flow Chart.
Figure 44: NK Frame External Static Pressure and Air Flow Chart.
NJ, NK Frames
VERTICAL / HORIZONTAL AIR HANDLER
50
60
70
80
90
100
350550 750950
ESP @ Pressure
CFM
0.1 (in wg)
0.2 (in wg)
0.3 (in wg)
0.4 (in wg)
0.5 (in wg)
0.6 (in wg)
0.7 (in wg)
50
60
70
80
90
100
110
120
900100011001200130014001500
ESP @ Pressure
CFM
0.1 (in wg)
0.2 (in wg)
0.3 (in wg)
0.4 (in wg)
0.5 (in wg)
0.6 (in wg)
0.7 (in wg)
0.8 (in wg)
