Installation
Outdoor

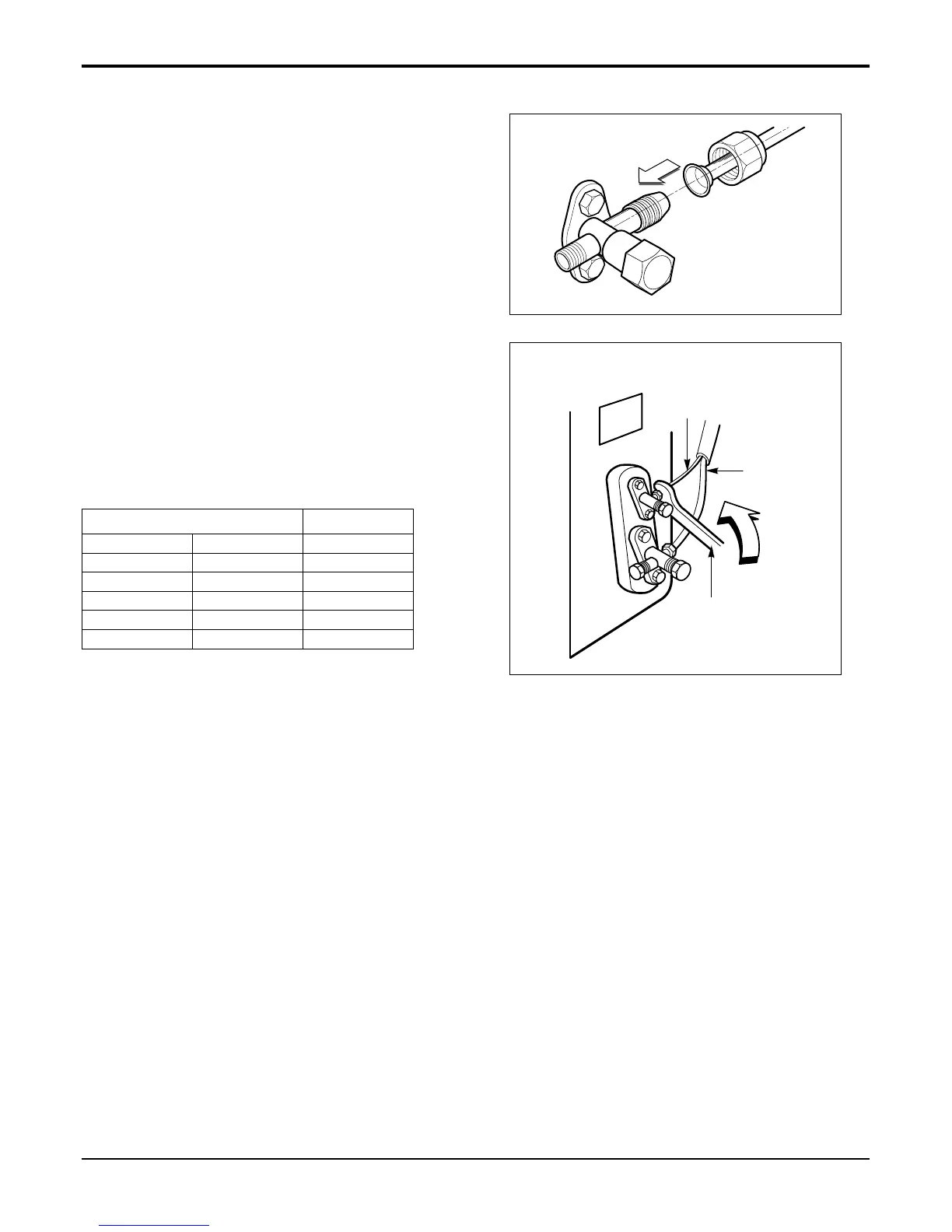

Align the center of the pipings and sufficiently tighten
the flare nut by hand.
Finally, tighten the flare nut with torque wrench until the
wrench clicks.
• When tightening the flare nut with torque wrench,
ensure the direction for tightening follows the arrow on
the wrench.
mm inch kgf.m
Ø6.35mm 1/4" 1.8~2.5
Ø9.52mm 3/8" 3.4~4.2
Ø12.7mm 1/2" 5.5~6.6
Ø15.88mm 5/8" 6.3~8.2
Ø19.05mm 3/4" 9.9~12.1
Outside diameter Torque
Outdoor unit
Liquid side piping
(Smaller diameter)
Gas side
piping
(Bigger
diameter)
Torque wrench
