LG ATNH24GPLED[UT24 NPD] - Piping Diagrams

- 4 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

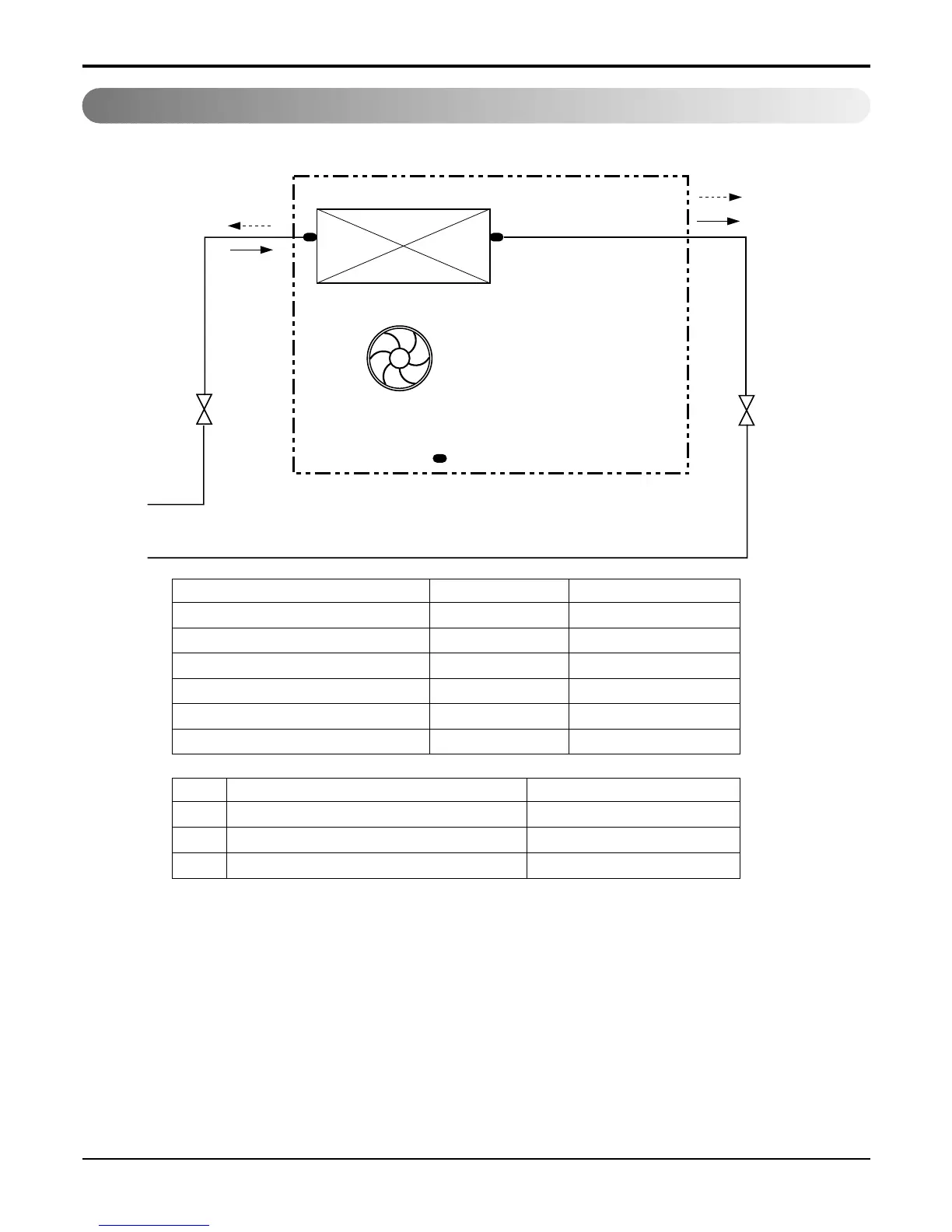

2. Piping Diagrams
Indoor Unit
Th2
Th3
Th2
Th1
Heat Exchanger
: Cooling
: Heating
Turbo Fan
LOC. Description PCB Connector
Th1 Thermistor for inlet air temperature CN_ROOM
Th2 Thermistor for EVA. in temperature CN_PIPE/IN
Th3 Thermistor for EVA. out temperature CN_PIPE/OUT
Model Gas (mm) Liquid(mm)
ATNH24GPLED 15.88 9.52
ATNH30GPLED 15.88 9.52
ATNH36GNLED 15.88 9.52
ATNH42GMLED 15.88 9.52
ATNH48GMLED 15.88 9.52
ATNH60GMLED 15.88 9.52
