LG AUUC306A - Outdoor Unit Dimensions (AUUC488 A;AB, AUUH488 A;AB, AUUC608 A;AB, AUUH608 A;AB)

42 Universal System Air Conditioner

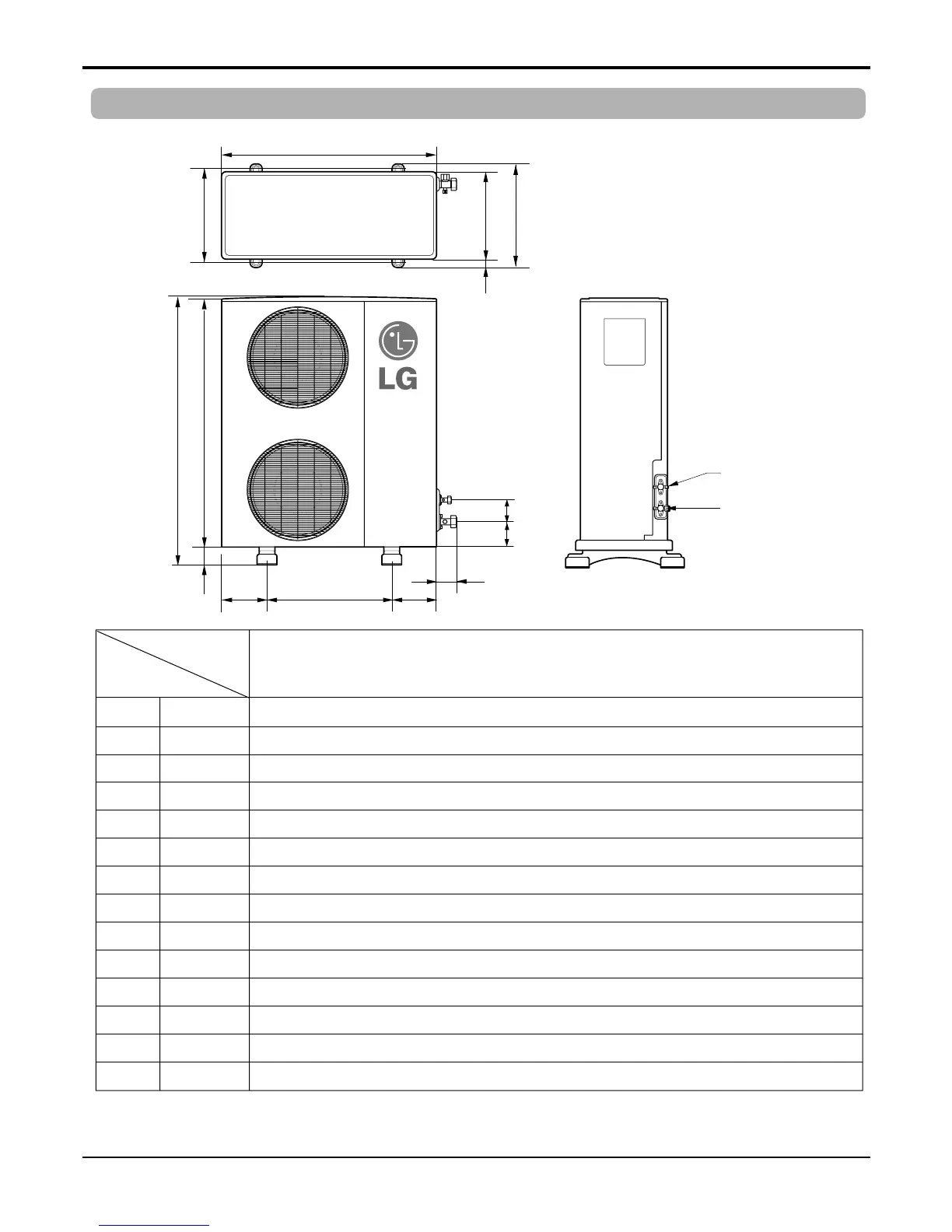

Dimensional Drawings
Model No.: AUUC488A/AB, AUUH488A/AB, AUUC608A/AB, AUUH608A/AB
Model No.
Dim
W mm 900
H mm 1,225
D mm 370
L1 mm 460
L2 mm 45
L3 mm 410
L4 mm 1,135
L5 mm 90
L6 mm 550
L7 mm 175
L8 mm 175
L9 mm 112
L10 mm 120
L11 mm 83
AUUC488A/AB, AUUH488A/AB, AUUC608A/AB, AUUH608A/AB
L6L7 L8
L9
L4
H
L11
L10
L5
W
D
L1
L2
L3
Gas side
3-way valve
Liquid side
3-way valve
