LG DLE0442W Service Manual

12

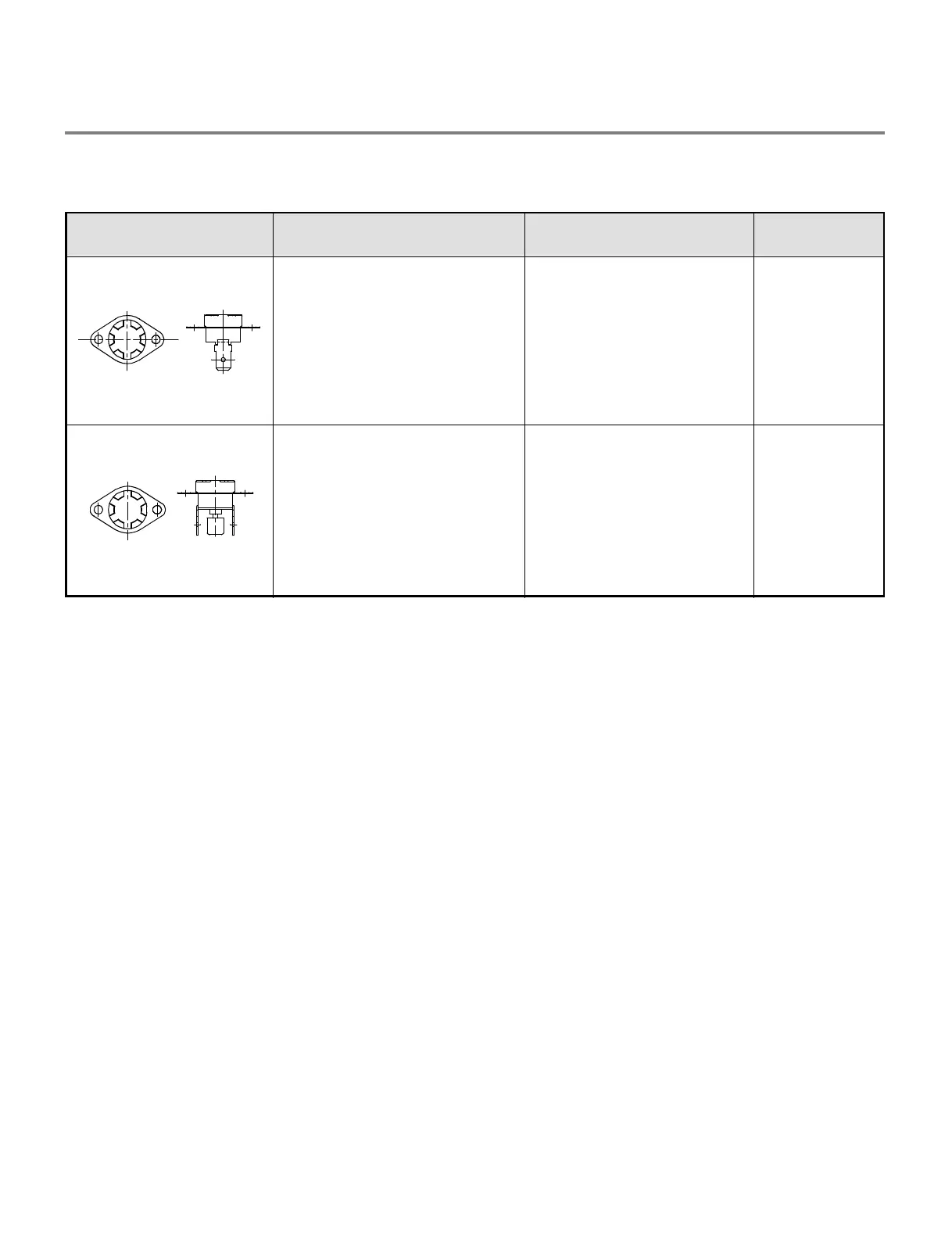

Component Test Procedure Check result Remark
13. Hi-limit Thermostat
(Auto reset)
• Check Top Marking :
N95
Measure resistance of terminal
to terminal
󳡉
Open at 203
±
7°F (95
±
5°C)
󳡊
Close at 158
±
9°F (70
±
5°C)
󳡉
Resistance value
≒
∞
󳡊
Continuity < 1Ω
• Gas type
• Gas funnel-
Hi-limit
13. Thermal Cut off
(Manual reset)
• Check Top Marking :
N110
Measure resistance of terminal
to terminal
󳡉
Open at 230
±
12°F
(110
±
7°C)
󳡊
Manual reset
If thermal fuse is open must
be replaced
󳡉
Resistance value
≒
∞
󳡊
Continuity < 1Ω
• Gas type
• Gas funnel-
Safety
