After Natural Gas Setting, applying Propane Gas Orifice or wrong use of Natural Gas

Orifice will result in fire. Conversion must be made by a qualified technician.

Initially

, Natural Gas mode is set. Propane Gas Orifice is on sale as a Service

Part to authorized servicers only.

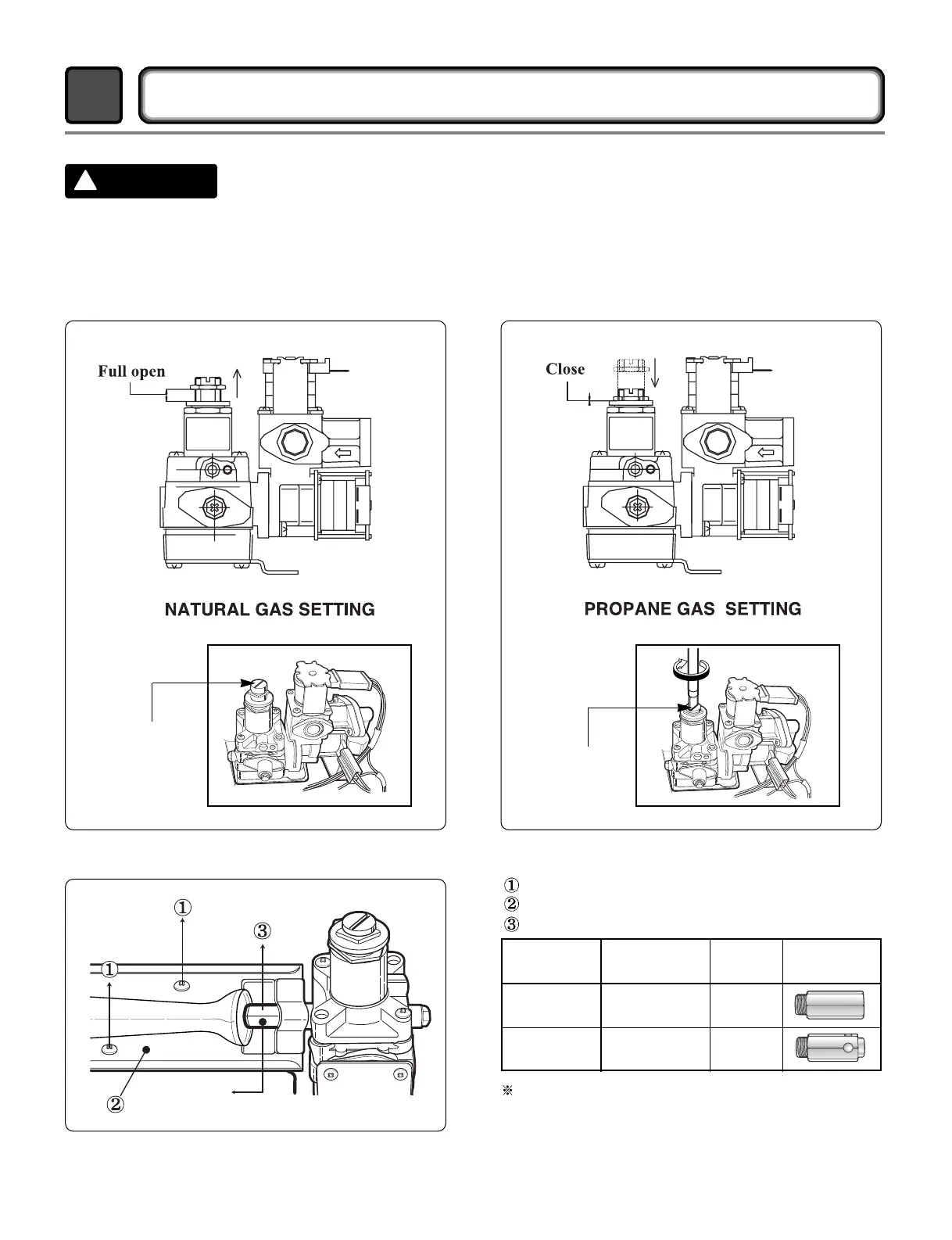

CHANGE GAS SETTING (NATURAL GAS, PROPANE GAS)

Warning

STEP 1 : VALVE SETTING

Full open

“Change screw”

STEP 2 : ORIFICE CHANGE

Orifice

Gas type

Natural Gas

Propane Gas

Marking

NCU

PCU

Shape

Orifice P/No

4948EL4001B

4948EL4002B

“Change screw”

Remove 2 screws.

Disassemble the pipe assembly.

Replace Natural Gas orifice with Propane Gas orifice.

Kit contents : Orifice (Dia. = 1.613mm, for Propane Gas)

: Replace Label

: Instruction sheet
