1.

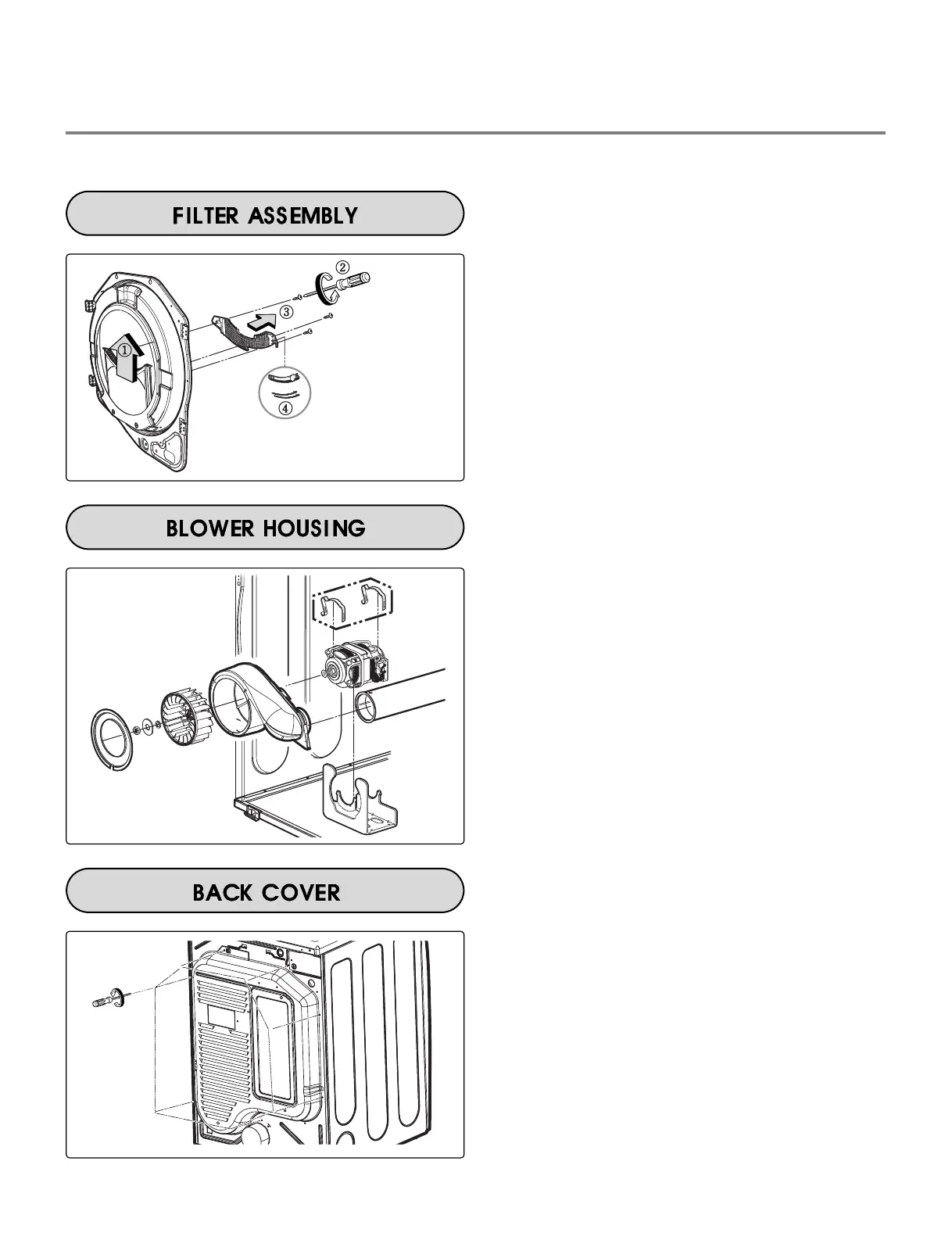

Remove the filter.
2.
Remove 3 screws.
3.
Remove Cover Gride.
4.
Disconnect electrode sensor.
1.
Disassembly the top plate.
2.
Remove the Cabinet Cover and Tub Drum [Front].
3.
Remove the Drum assembly.
4.
Remove 2 screws and cover(Air guide).
5.
Remove the bolt and washer.
6.
Remove the fan.
7.
Disconnect the motor clamp and motor.
1.
Disassemble the top plate.
2.
Remove the Cabinet Cover and Tub Drum [Front].
3.
Remove the Drum assembly.
4.
Remove 7 screws.
5.
Remove the Tub Drum [Rear] towards the front.
