INSTALLATION INSTRUCTIONS
Reversing the Door (cont.)

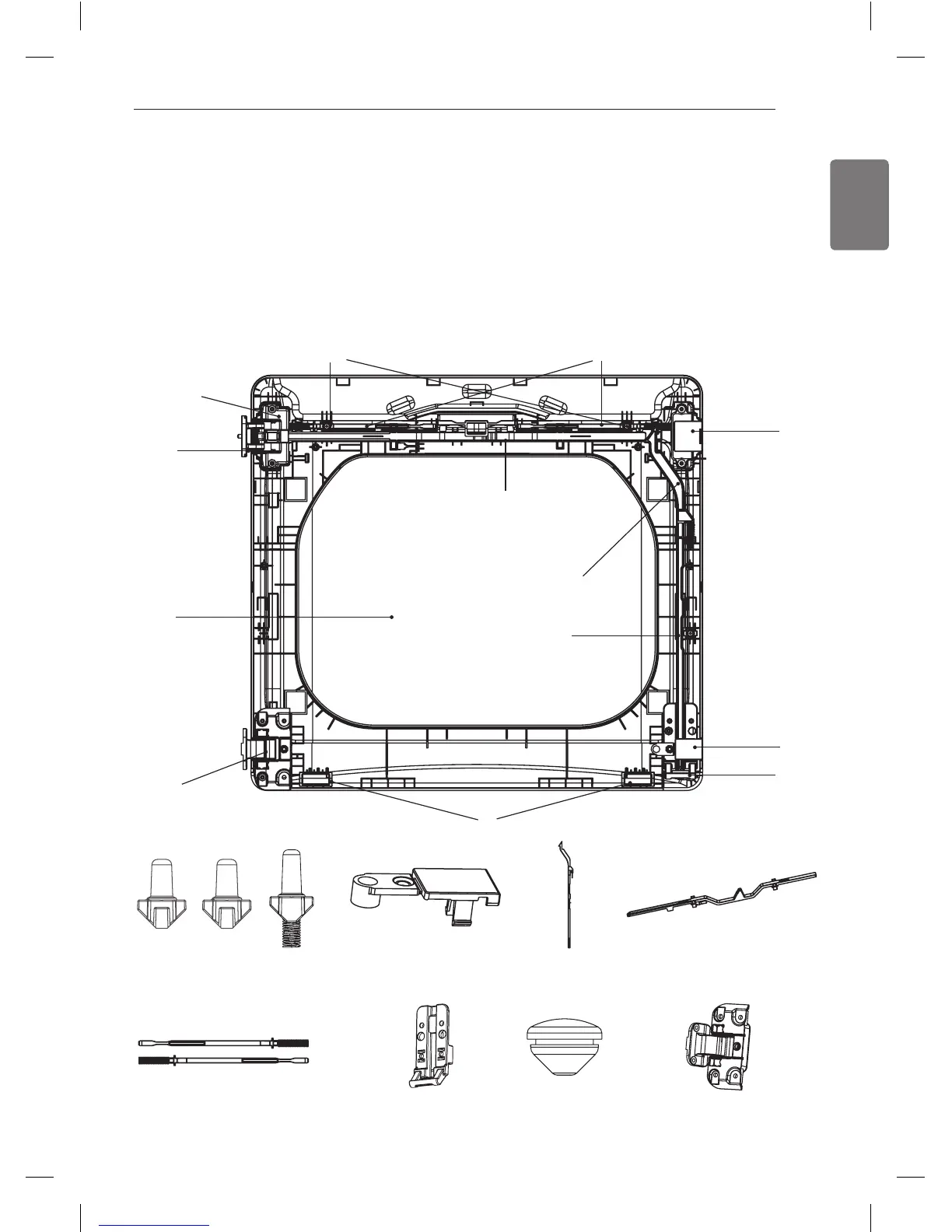

Inner Structure of Door
(before reversing - right hinge swing)
Top interlock buttons
upper hinge
assembly
upper hinge
pivot
glass
lower
hinge
assembly
lower
hinge
bracket
lower hinge
filler
upper hinge
filler
bumpers
top lock rod
side lock rod
inner lock rods
interlock buttons
inner lock rods
lower hinge filler
lower hinge bracket
side lock rod
Hole plug
top lock rod
lower hinge assembly
You will now be removing and reversing various components inside the door. See below for a detailed diagram
and identification of the inner structure and parts of the door. (The diagram shows the “before view” of the door,
with the default set-up for a right side hinge swing. After following these instructions, your door should be a
mirror image of the illustration.)
Side Interlock button
