LG DLG0452W Service Manual

11

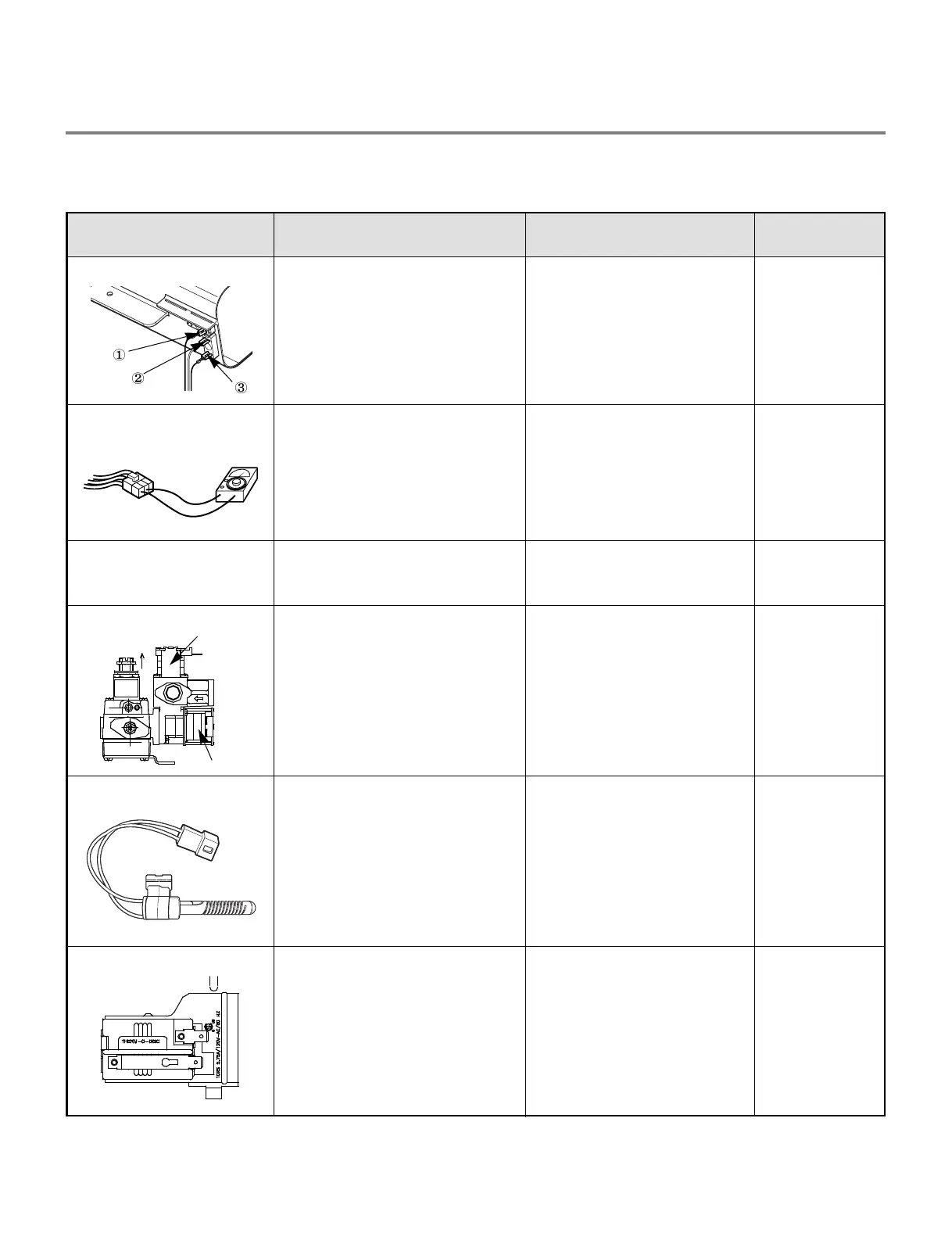

Component Test Procedure Check result Remark
7. Heater Measure resistance of the
following terminal
󳡉
Terminal : 1 (COM) - 2
󳡊
Terminal : 1 (COM) - 3
󳡋
Terminal : 2 - 3
󳡉
Resistance value : 10Ω
󳡊
Resistance value : 10Ω
󳡋
Resistance value : 20Ω
• Electric type
8. Thermistor Measure resistance of terminal
to terminal
Temperature condition :
58°F ~ (10~40°C)
58°F ~ 104F (10~40°C)
Resistance value : 10Ω • Heater case -
Hi limit
• Electric type
9. Motor • See Page 13
10. Gas valve
valve 1
valve 2
Measure resistance of the
following terminal
󳡉
Valve 1 terminal
󳡊
Valve 2 terminal
󳡉
Resistance value : > 1.5kg ~
󳡊
Resistance value :
> 1.5~2.5kg
• Gas type
11. Igniter Measure resistance of terminal
to terminal
Resistance value : 100~800Ω • Gas type
12. Frame Detect Measure resistance of terminal
to terminal
󳡉
Open at 370°F ((Maximum)
󳡊
Close at 320°F
󳡉
Resistance value
≒
∞
󳡊
Resistance value < 1Ω
• Gas type
